Siemens SIPROTEC 4 User Manual

7SJ622*-*D/E
[schalttafeleinbau-7sj622-d-e-070602-kn, 1, en_US]

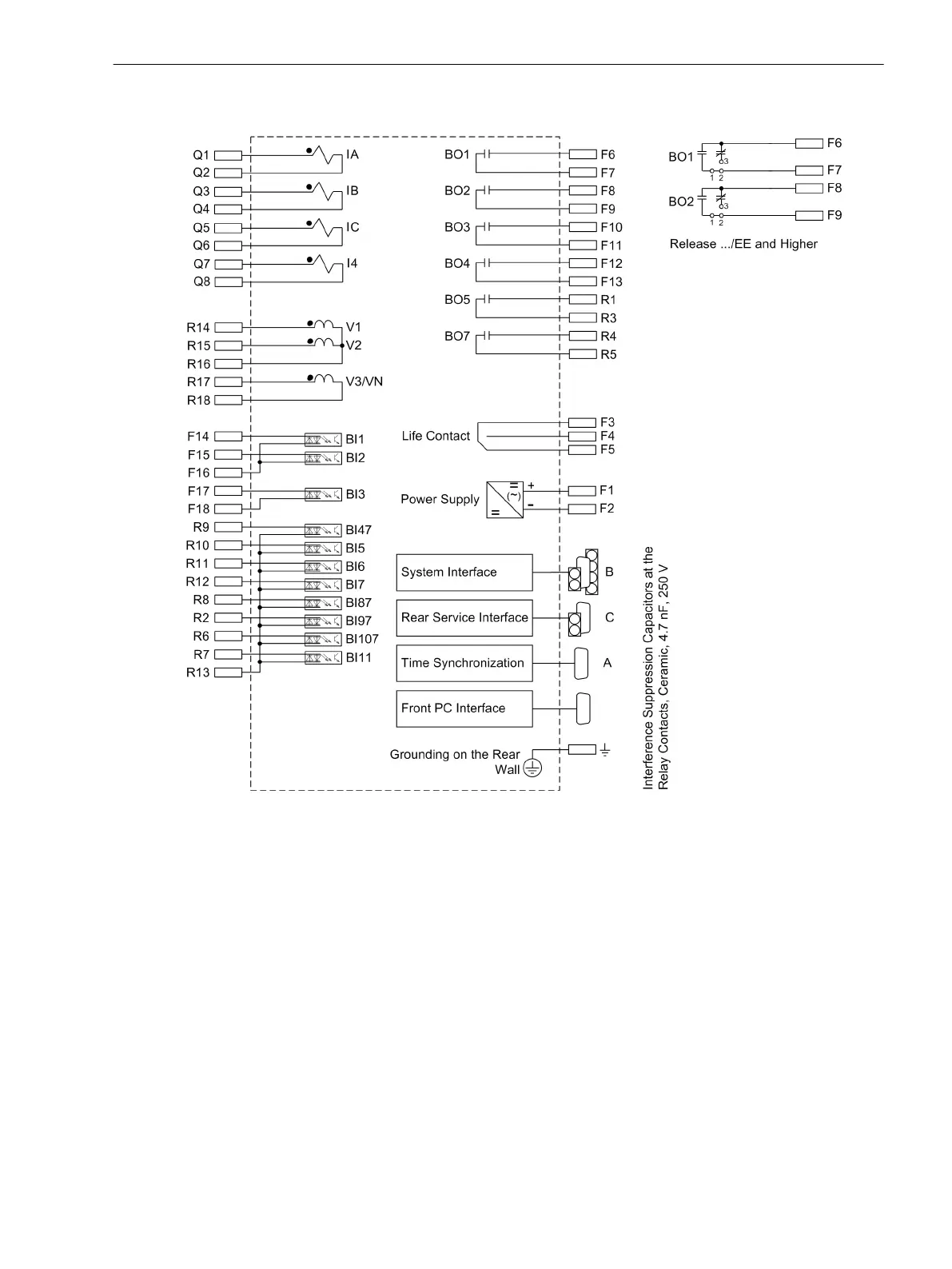

Figure B-2
General diagram for 7SJ622*–*D/E (panel flush mounted or cubicle mounted)
Double commands cannot be directly allocated to BO5 / BO7. If these outputs are used for issuing
a double command, it has to be divided into two single commands via CFC.
Terminal Assignments
B.1 7SJ62 — Housing for panel flush mounting or cubicle installation
SIPROTEC 4, 7SJ62/64, Manual 543
C53000-G1140-C207-8, Edition 08.2016
