7SJ623/5*-*D/E
[schalttafeleinbau-7sj623-d-e-060630, 1, en_US]

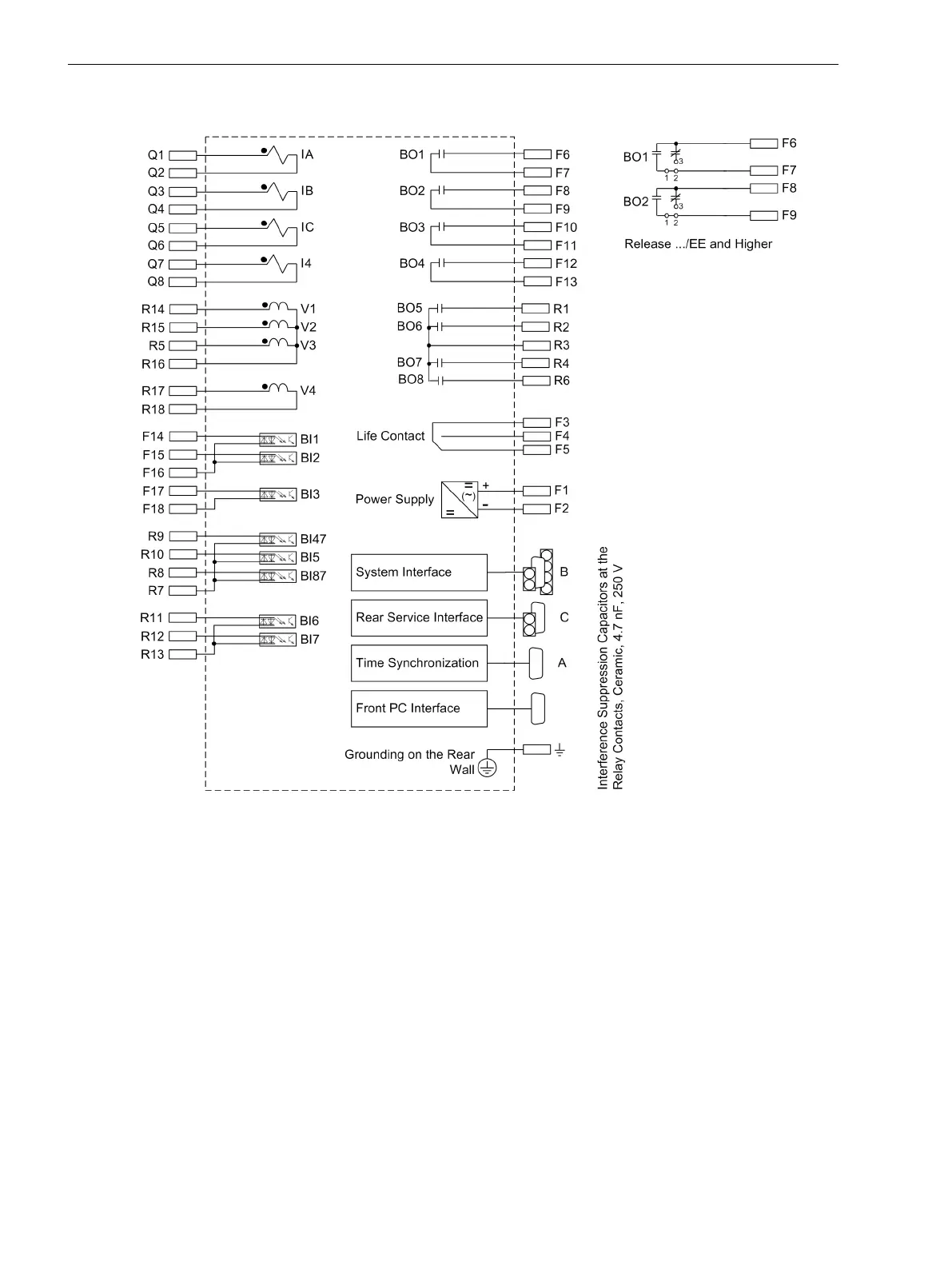

Figure B-3
General diagram 7SJ623/5*–*D/E (panel flush mounted or cubicle mounted)
Terminal Assignments
B.1 7SJ62 — Housing for panel flush mounting or cubicle installation
544 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
