Siemens SIPROTEC 4 User Manual

7SJ622*-*B
[schalttafelaufbau-7sj622-b-070602-kn, 1, en_US]

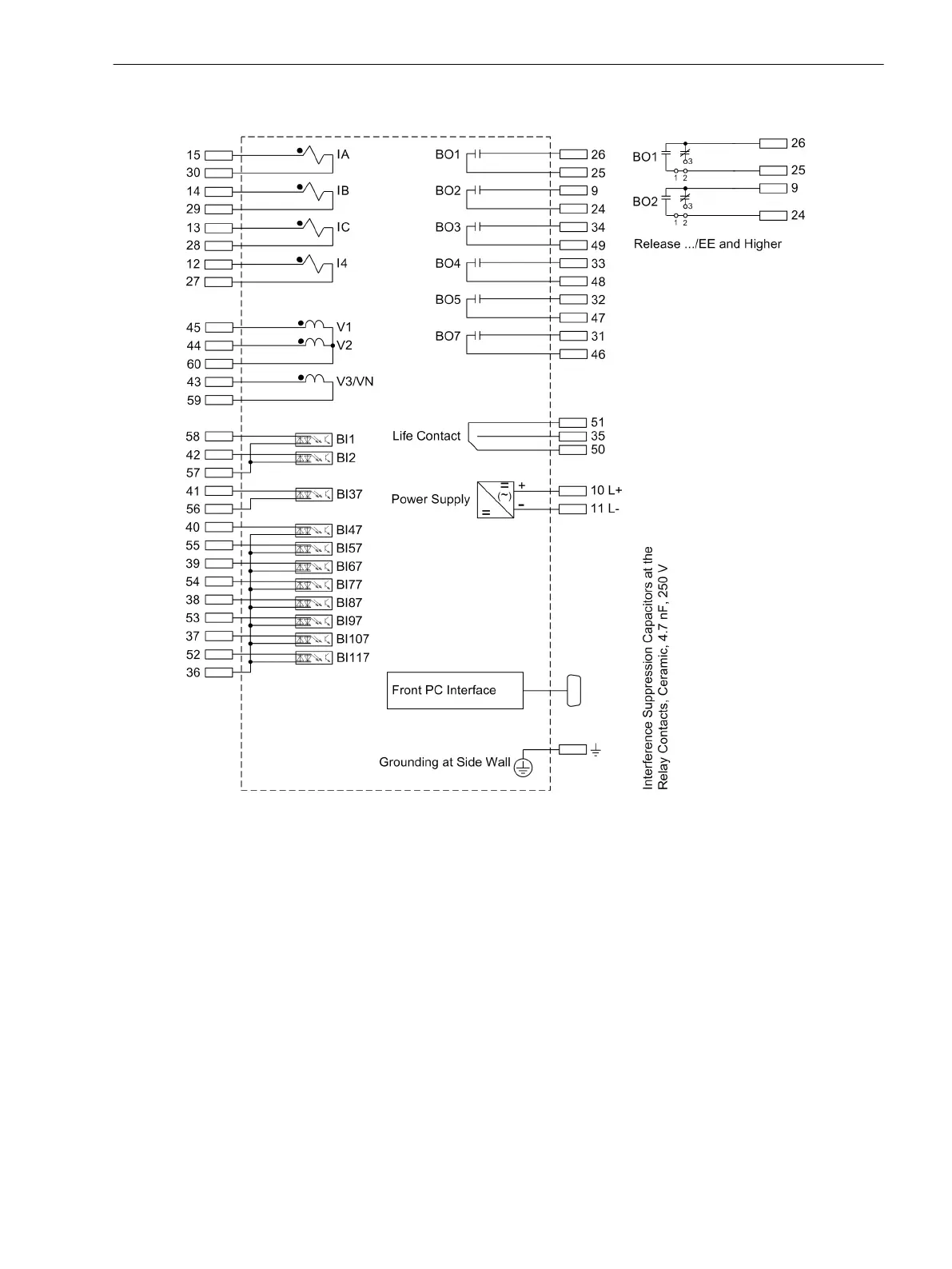

Figure B-6
General diagram for 7SJ622*–*B (panel surface mounted)
Double commands cannot be directly allocated to BO5 / BO7. If these outputs are used for issuing
a double command, it has to be divided into two single commands via CFC.
Terminal Assignments
B.2 7SJ62 — Housing for Panel Surface Mounting
SIPROTEC 4, 7SJ62/64, Manual 547
C53000-G1140-C207-8, Edition 08.2016
