7SJ623/5*-*B
[schalttafelaufb-7sj623-b-070329, 1, en_US]

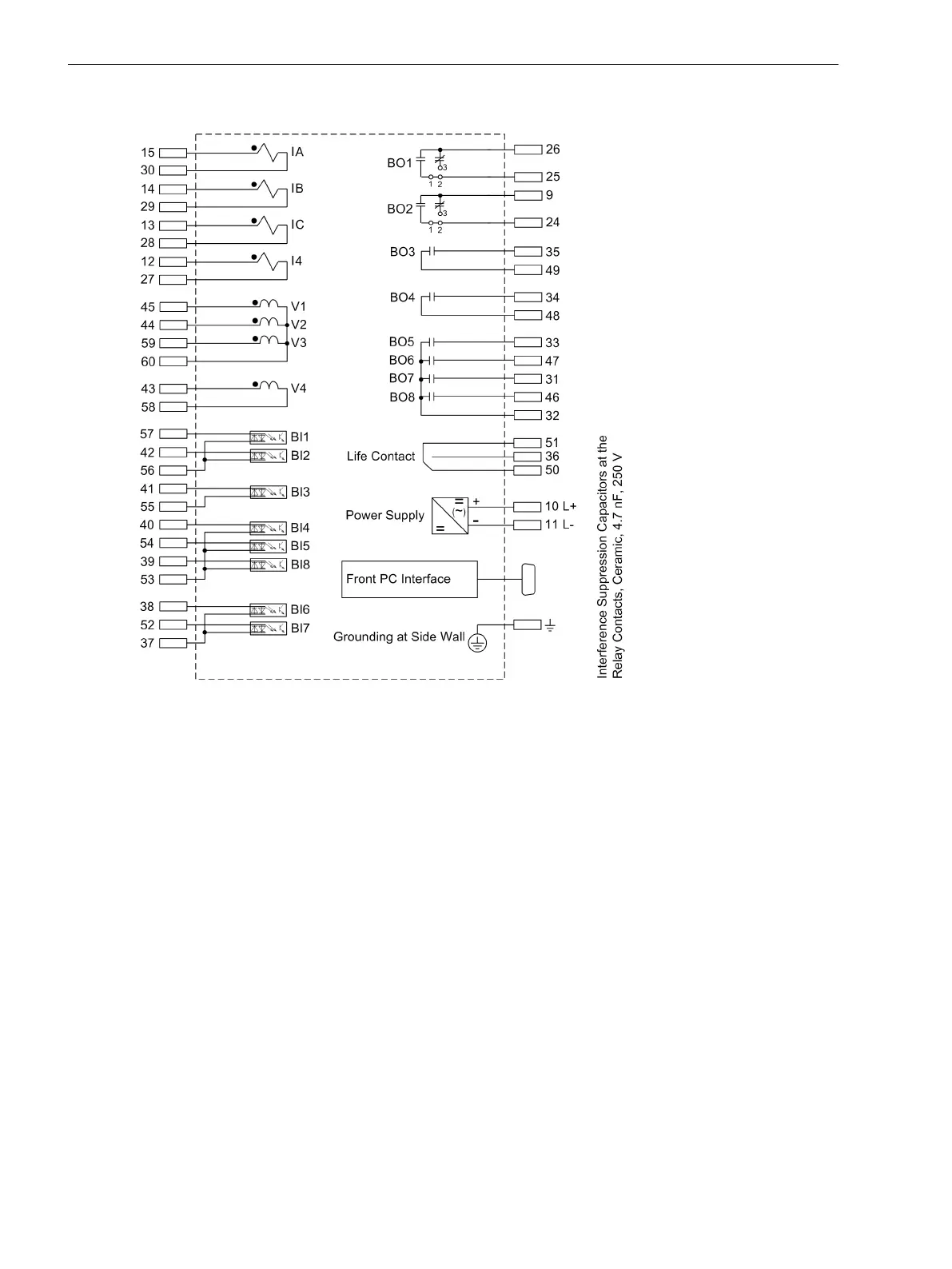

Figure B-7
General diagram for 7SJ623/5*-*B (panel surface mounted)
Terminal Assignments
B.2 7SJ62 — Housing for Panel Surface Mounting
548 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
