Siemens SIPROTEC 4 User Manual

7SJ624/6*-*B
[schalttafelaufb-7sj624-b-070329, 1, en_US]

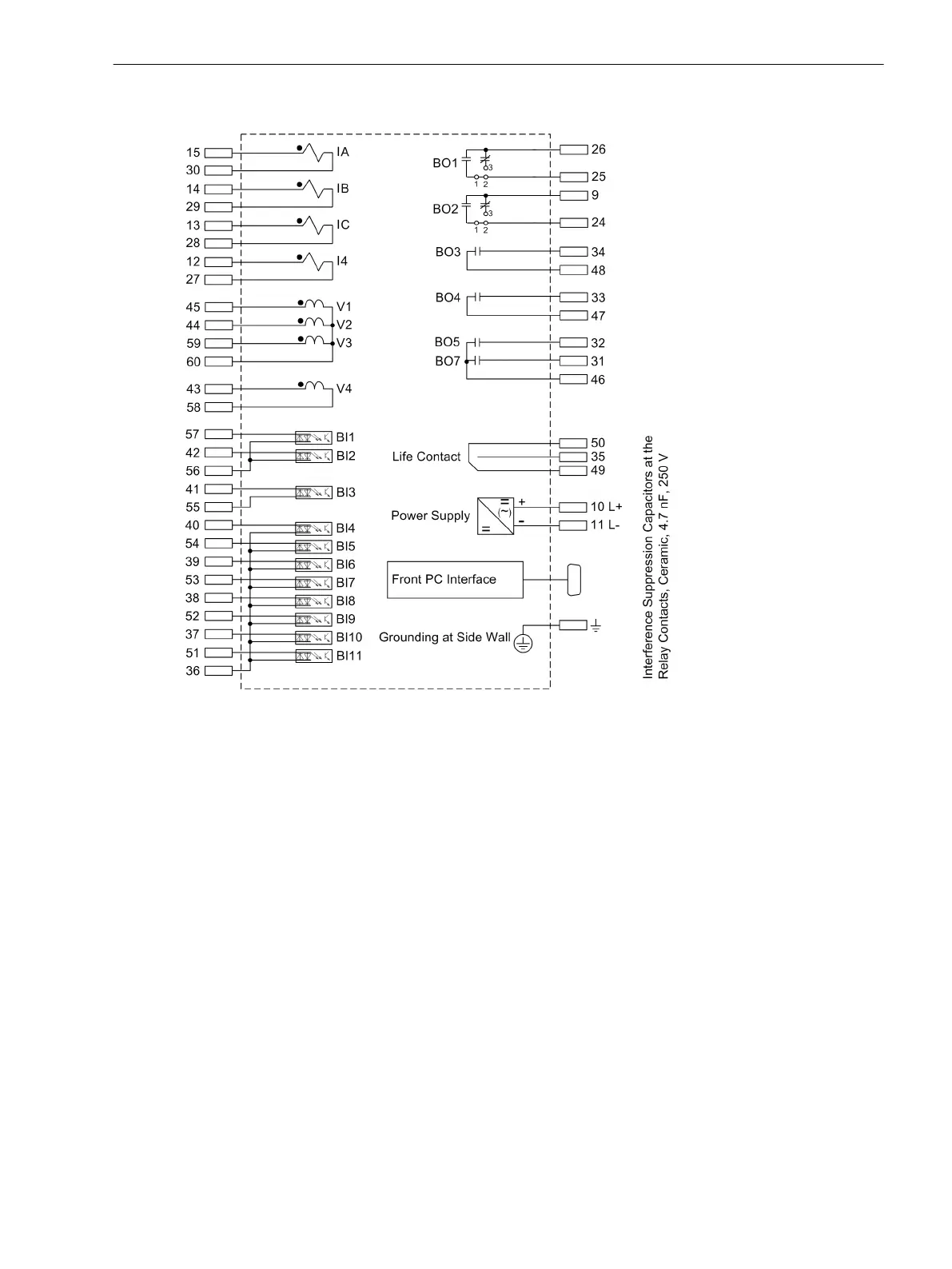

Figure B-8
General diagram for 7SJ624/6*-*B (panel surface mounted)
Double commands cannot be directly allocated to BO5 / BO7. If these outputs are used for issuing
a double command, it has to be divided into two single commands via CFC.
Terminal Assignments
B.2 7SJ62 — Housing for Panel Surface Mounting
SIPROTEC 4, 7SJ62/64, Manual 549
C53000-G1140-C207-8, Edition 08.2016
