Configuration
5-197SA6 Manual
C53000-G1176-C133-1
Internal Single
Point Indication
(IntSP)

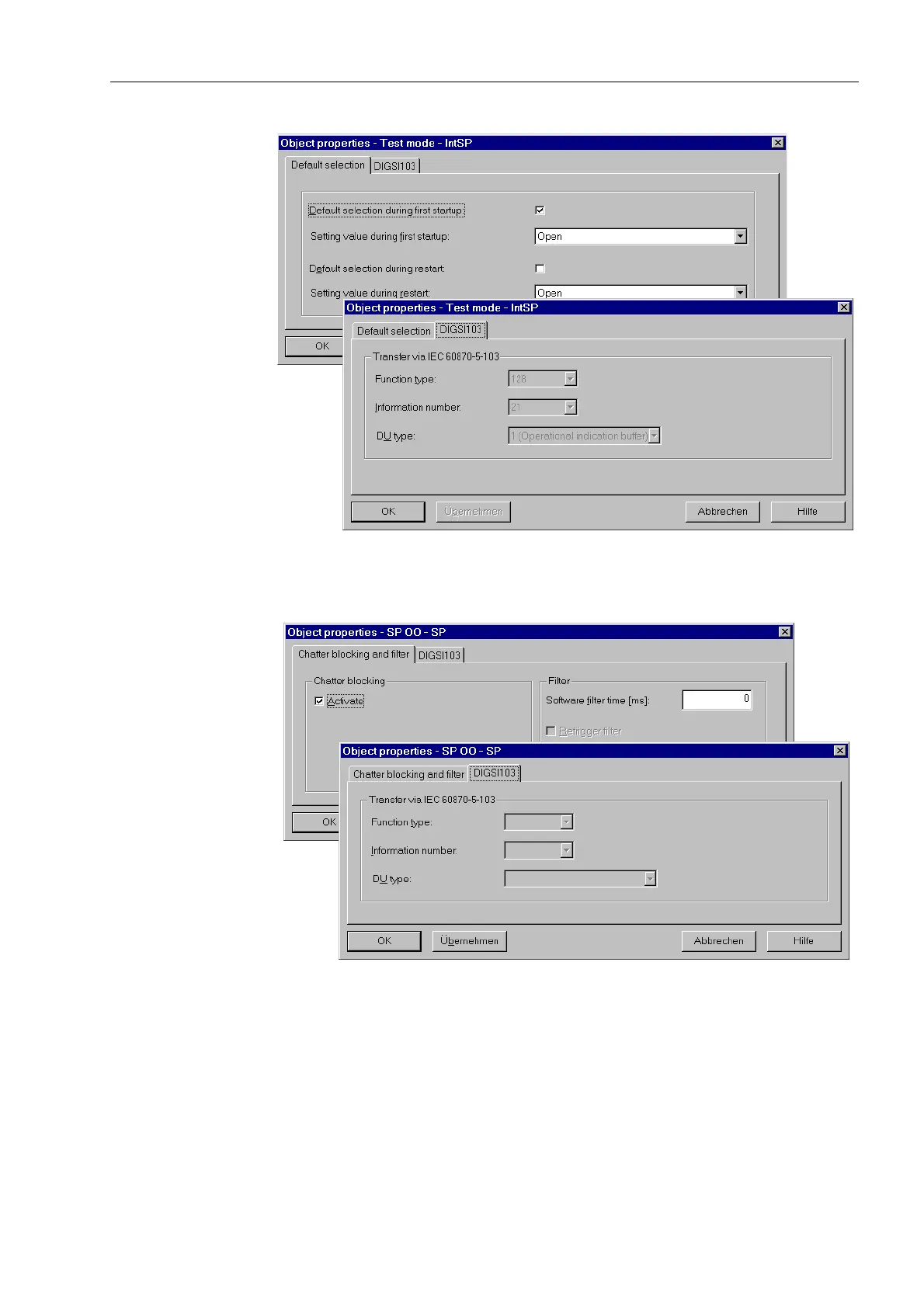

Figure 5-15 Information properties — example for the information type “Internal Single Point
Indication” (IntSP)
Singe Point
Indication (SP)
Figure 5-16 Information properties — example for information type “Single Point Indication”
(SP)
Double Point
Indication (DP)
In addition to the properties entered for single point indications, a “Suppress
intermediate position” check box is available, which may be checked to suppress the
intermediate indication during operations. If this field is marked, then the filter time,
which can also be set (see margin heading “Filtering/Contact Chatter Suppression”
below), is only effective for the intermediate (= undefined position) indication. Hence,
