4.7 Configuration of the Scope of Device Functions
The individual devices within the SIPROTEC
®
4 family can be supplied with various
protective functions. The ordering number of the device determines the available func-
tions. The functions are specified more precisely through the process of enabling and
disabling in the Device Configuration area of the settings.
To specify the active functions using DIGSI
®
4:
• Double click on 'HYLFH&RQILJXUDWLRQ in the data window.
• Click on the individual fields and select the functions to be enabled.

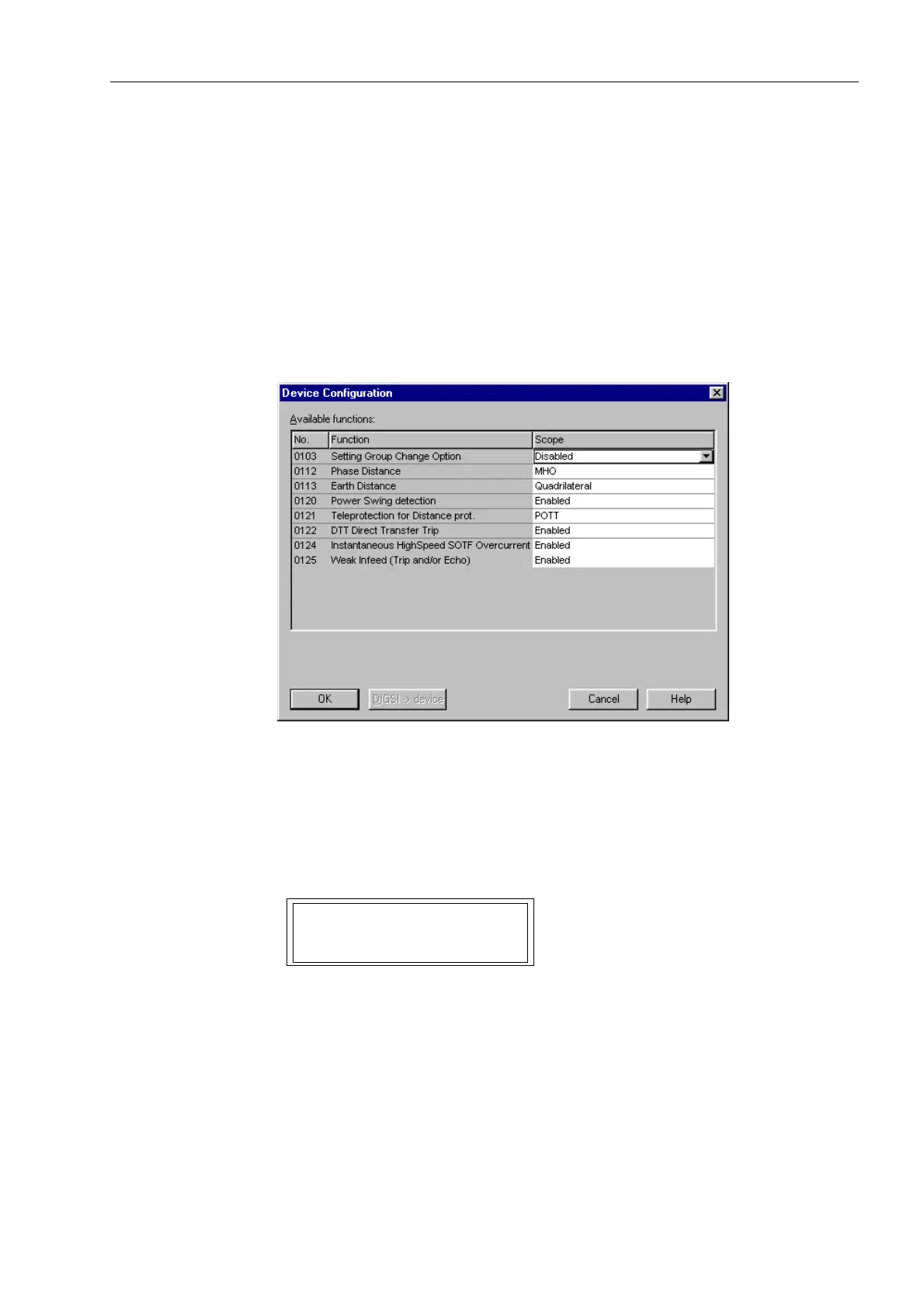

Figure 4-15 DIGSI
®
4, setting the device configuration — example
The device configuration can be viewed from the operator control panel on the
SIPROTEC
®
4 device.
• In the main menu, select 6HWWLQJV → 'HYLFH&RQILJ.
.
Figure 4-16 Viewing device configuration from the operator control panel — example
'(9,&(&21),*

 3KDVH'LVWDQFH
4XDGULODWHUDO
