4.3.1 Annunciations
The scope of the indication (messages) that are given under Annunciation is deter-
mined when settings for the configuration of functions are applied to the SIPROTEC
®
device.
The messages are divided into the following categories, and displayed using DIGSI
®
4
or the operator control panel of the device:
q
Event Log: Operating messages: independent of network faults, e.g. messages
about switching operations or monitoring functions;
q
Trip Log: Fault messages;
q
General interrogation: display of present condition messages;
q
Spontaneous messages; continuous display of important messages from the de-
vice; e.g., after faults, switching operations, etc.

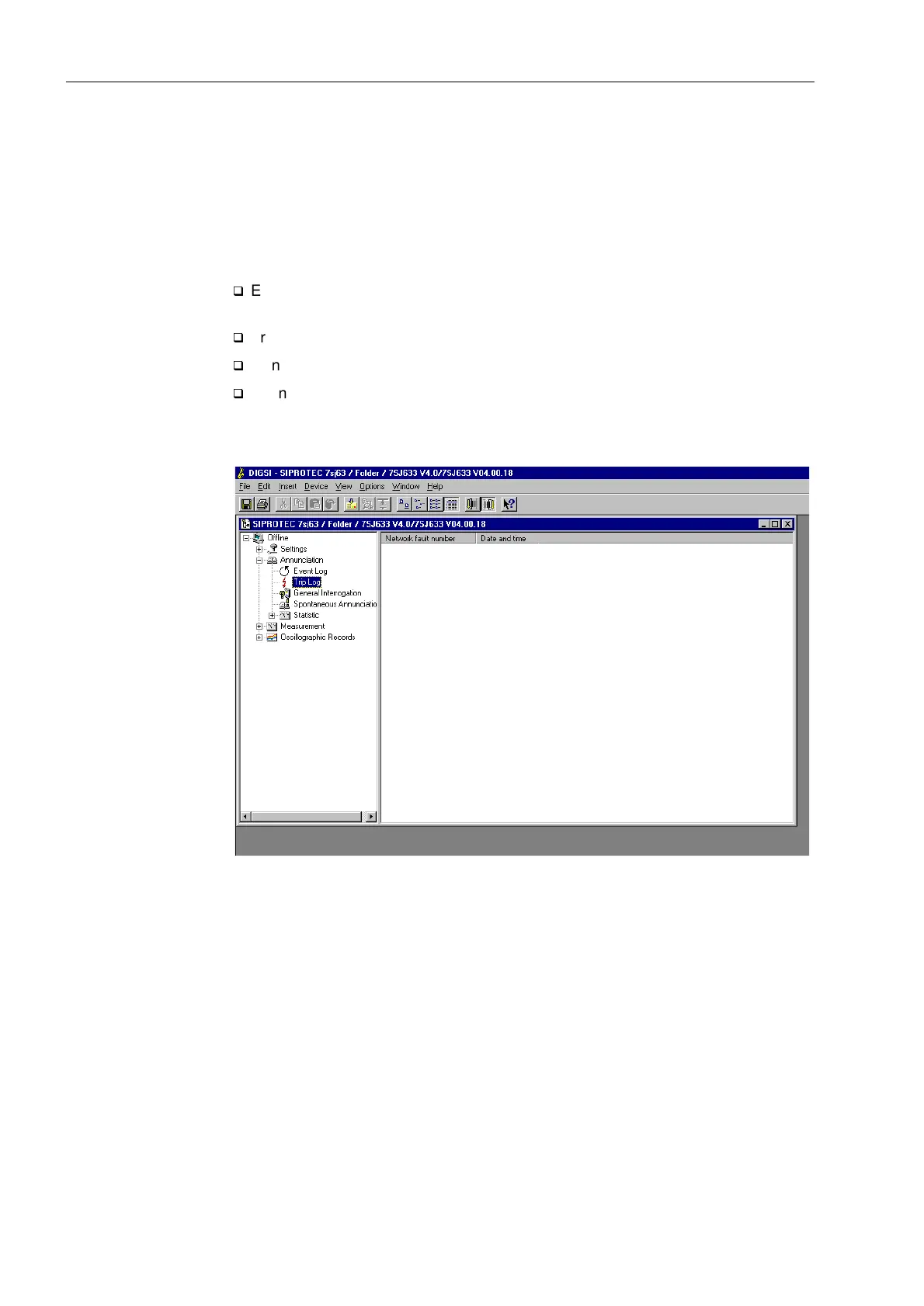

Figure 4-3 DIGSI
®
4, annunciations – example
Display in DIGSI
®
4 To view the indications in DIGSI
®
4 2QOLQH:
• Select $QQXQFLDWLRQ in the navigation (left) window.
All annunciation groups are shown in the data (right) window.
• Double click on an annunciation group in the data window, such as (YHQW/RJ.
The data and time appear. Double click on the entry. The list of indications appears.
To Next Page
