7.4.2 Manual Overwriting
When using the Control with Feedback feature, the device checks the feedback
indications (i.e. 52-a and 52-b) before and after a control command is issued. If for
some reason, the physical connection from a circuit breaker auxiliary contact to the
binary inputs of the device is broken, inadvertently shorted, or disconnected,
commands may be blocked. If this situation occurs, and the affected switching device
is to be operated, the desired device position indication can be simulated through
“manual overwriting” (Input Tagging). The entered device position indication in the
7SA6 can be used to simulate and check interlocking conditions.
To accomplish manual overwriting in the 7SA6 the binary inputs of the affected device
must be decoupled first. This decoupling of the system is accomplished by setting the
respective status. The decoupling is discussed in Sub-section 7.4.3.
From the
Device Front
To enter the desired position indication for a switching device:
With a 7SA6 ready for operation, first press the key. The 0$,10(18 appears.
Using the key, select the menu item &RQWURO and go to the control functions with
the key. The selection &21752/ appears.
By pressing the key, the %5($.(56:,7&+ sub-menu is entered (see Figure 7-
50).
Select the item 0DQ2YHUZULWH using the key, and move to the next selection
using the key. 0$129(5:5,7( appears, as shown in Figure 7-50.
The actual position of each switching device is displayed. Move to the desired switch
using the and keys.

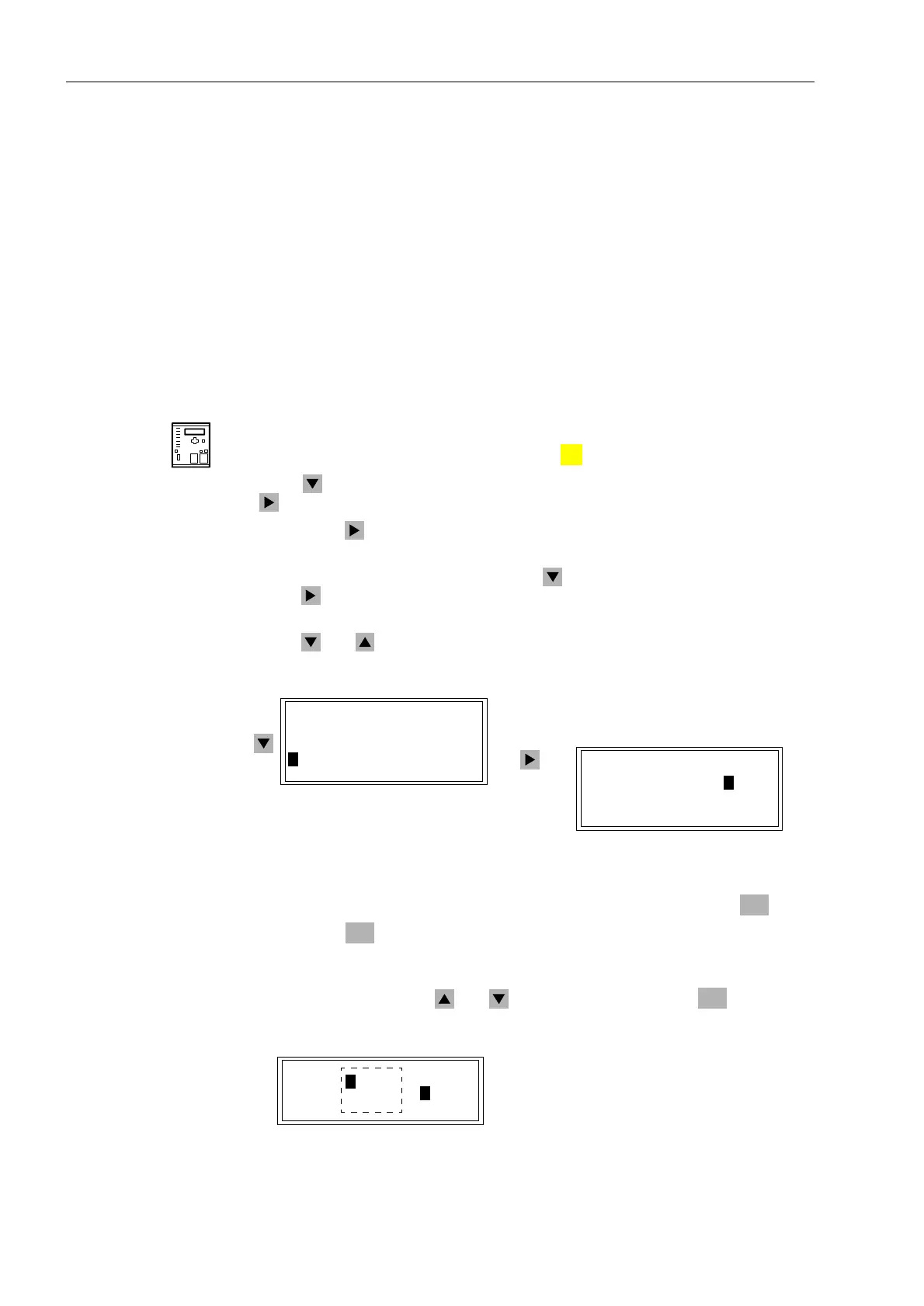

Figure 7-50 Manual Overwriting for Switching Devices from the Front Panel
Enter Password No. 2 (for unlocked switching) and acknowledge with the key.
By pressing the key, a selection window is opened for the marked switch, in
which manual overwriting can be done with the options 23(1&/26(. See Figure 7-
51.
Make the selection using the and keys, and confirm with the key.
Figure 7-51 Selection Window for Manual Overwriting of a Switch Position, Front Panel
MENU
%5($.(56:,7&+

'LVSOD\³!
&RQWURO²!
!0DQ2YHUZULWH²!
6HWVWDWXV³!
0$129(5:5,7(

%UHDNHU!23(1
'LVF6ZLW&/26
*QG6ZLW23(1
ENTER
ENTER
ENTER
0$12
!23(1
!%UH&/26!23(1
!'LVF&/26
