Hardware and Connections
2-117SA6 Manual
C53000-G1176-C133-1
2.1.2 Screw Terminal Connections
The following must be distinguished in the case of connection via screw terminals:
terminal plugs for voltage connections and
terminal plugs for current connections.
The terminal screws have a slot head for tightening or loosening with a flat screw driv-
er, sized 6 x 1 mm.
Terminal Blocks for
Voltage
Connections
The voltage connection terminal modules are available in 2 variants:

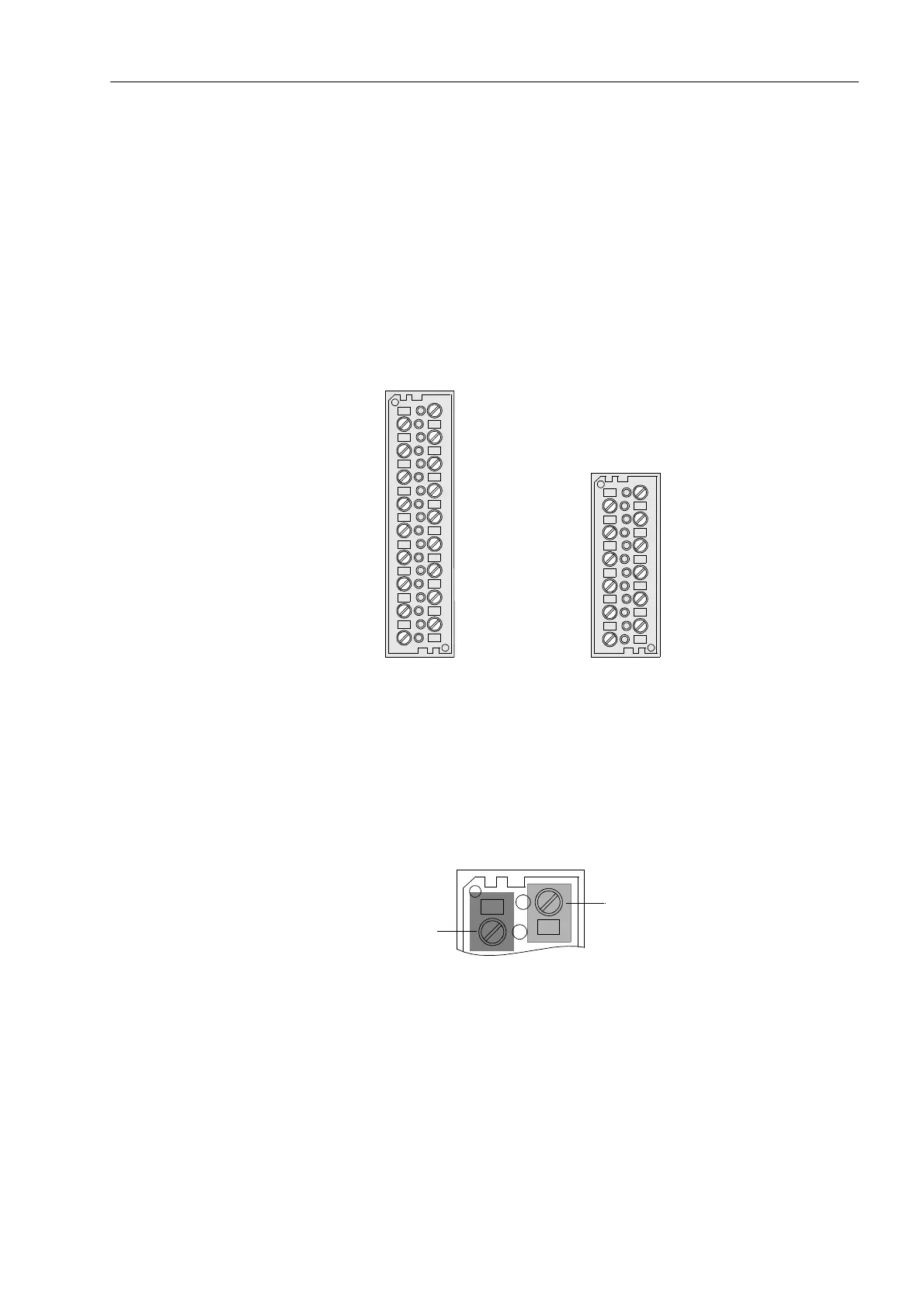

Figure 2-9 Connection plug module with screw terminals for voltage connections —
rear view
The following figure shows an example of the allocation of an individual screw terminal
to its terminal number.
Figure 2-10 Allocation of screw terminal to terminal number — example
Terminal Block for
Current
Connections
There is one version of a terminal block for current connections to a 7SA6.
18 terminal 12 terminal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
1
2
connection terminal 1
connection terminal 2
