Siemens siprotec 7SA6 - Trip Log (Fault Messages)

Control During Operation
7-6 7SA6 Manual
C53000-G1176-C133-1

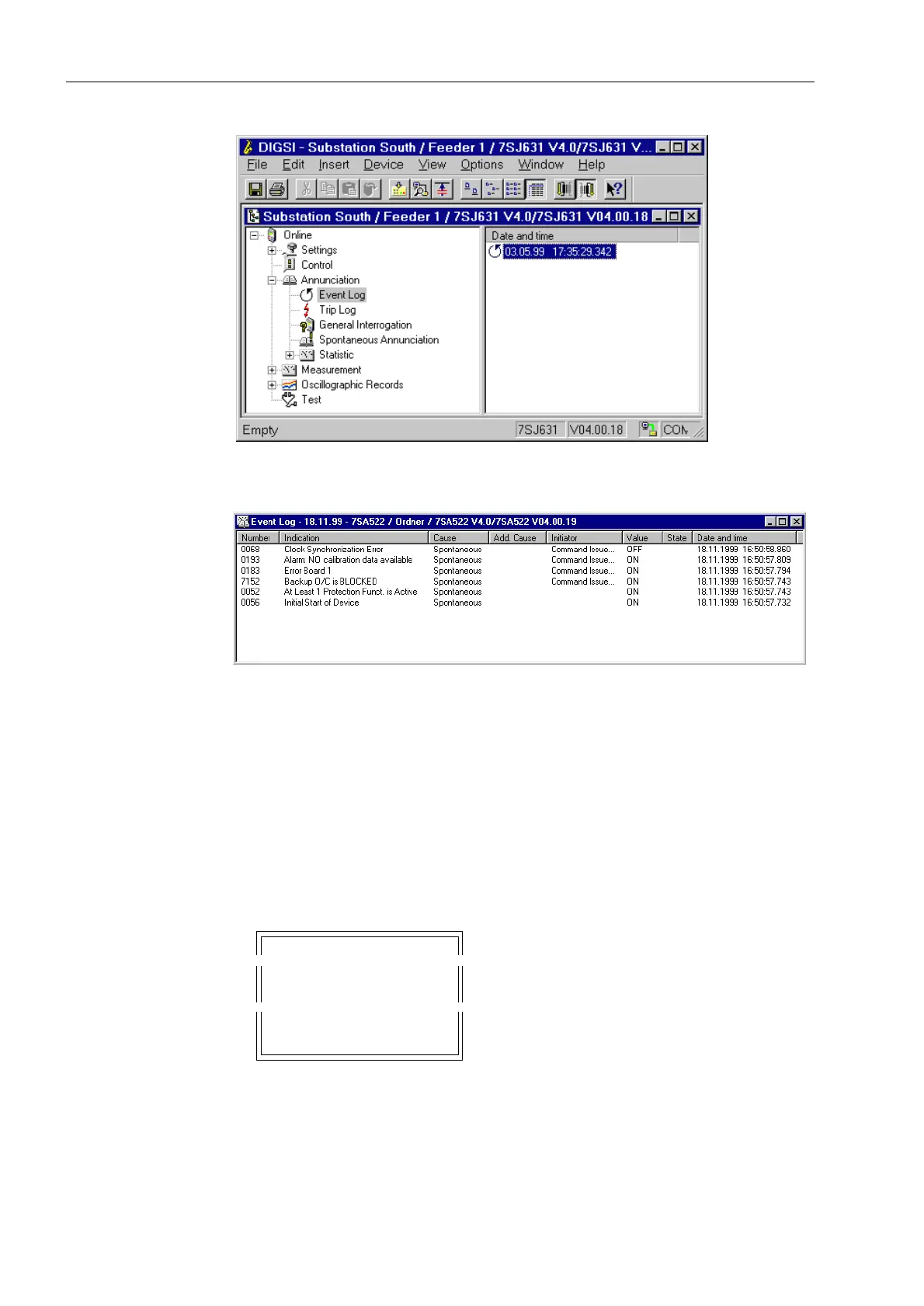

Figure 7-4 Selection of operational messages in DIGSI
®
4
Figure 7-5 Example of operational messages in DIGSI
®
4
7.1.1.3 Trip Log (Fault Messages)
Spontaneous
Messages
The spontaneous messages appear automatically in the display, after a general pick-
up of the device. The most important data about a fault can be viewed on the device
front in the sequence shown in Figure 7-6.
Figure 7-6 Display of spontaneous messages in the device display - example
Protection function that picked up, e.g. distance
protection, with phase information;
Protection function that is tripped, e.g. 3pole
distance protection (only devices with graphic
display);
Elapsed time from pick-up until reset;
Elapsed time from pick-up until the first trip
command of a protection function;
Fault distance d in km or miles
'LV3LFNXS/
'LV7ULS/
387LPHPV
75,37LPHPV
G 
