Functions
6-2817SA6 Manual
C53000-G1176-C133-1

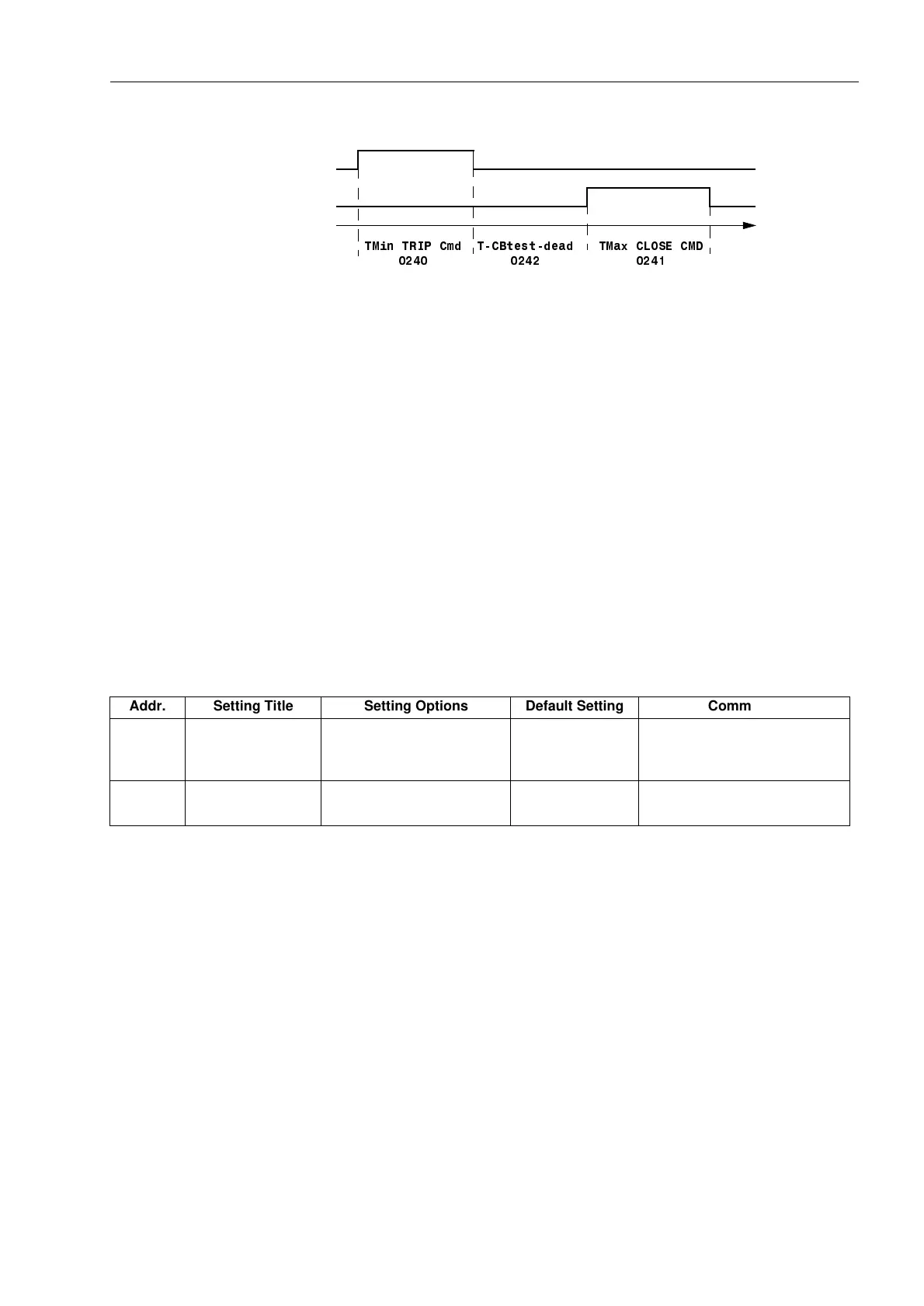

Figure 6-147 Trip/Close test cycle
6.20.6 Applying the Function Parameter Settings
The configuration concerning the tripping logic of the device as a whole and circuit-
breaker test function was already set in accordance with the general data in
Subsection 6.1.3 and 6.1.1.
Furthermore, the setting in address )OW'LVS/('/&', determines whether
the fault messages which are allocated to the local LEDs as well as the spontaneous
messages that are displayed via the LCD on the front of the device following a fault,
are stored following each fault detection of a protection function (
with PICKUP
), or if
storage only takes place if a trip command is issued (
with TRIP
= “No trip no flag”-
feature).
6.20.7 Settings
Fault display
TRIP
CLOSE
t
70LQ75,3&PG 70D[&/26(&0'7&%WHVWGHDG
Addr. Setting Title Setting Options Default Setting Comments
610 FltDisp.LED/LCD Display Targets on every
Pickup
Display Targets on TRIP only
Display Targets on
every Pickup
Fault Display on LED / LCD
615 Spont. FltDisp. NO
YES
NO Spontaneous display of flt.an-
nunciations
