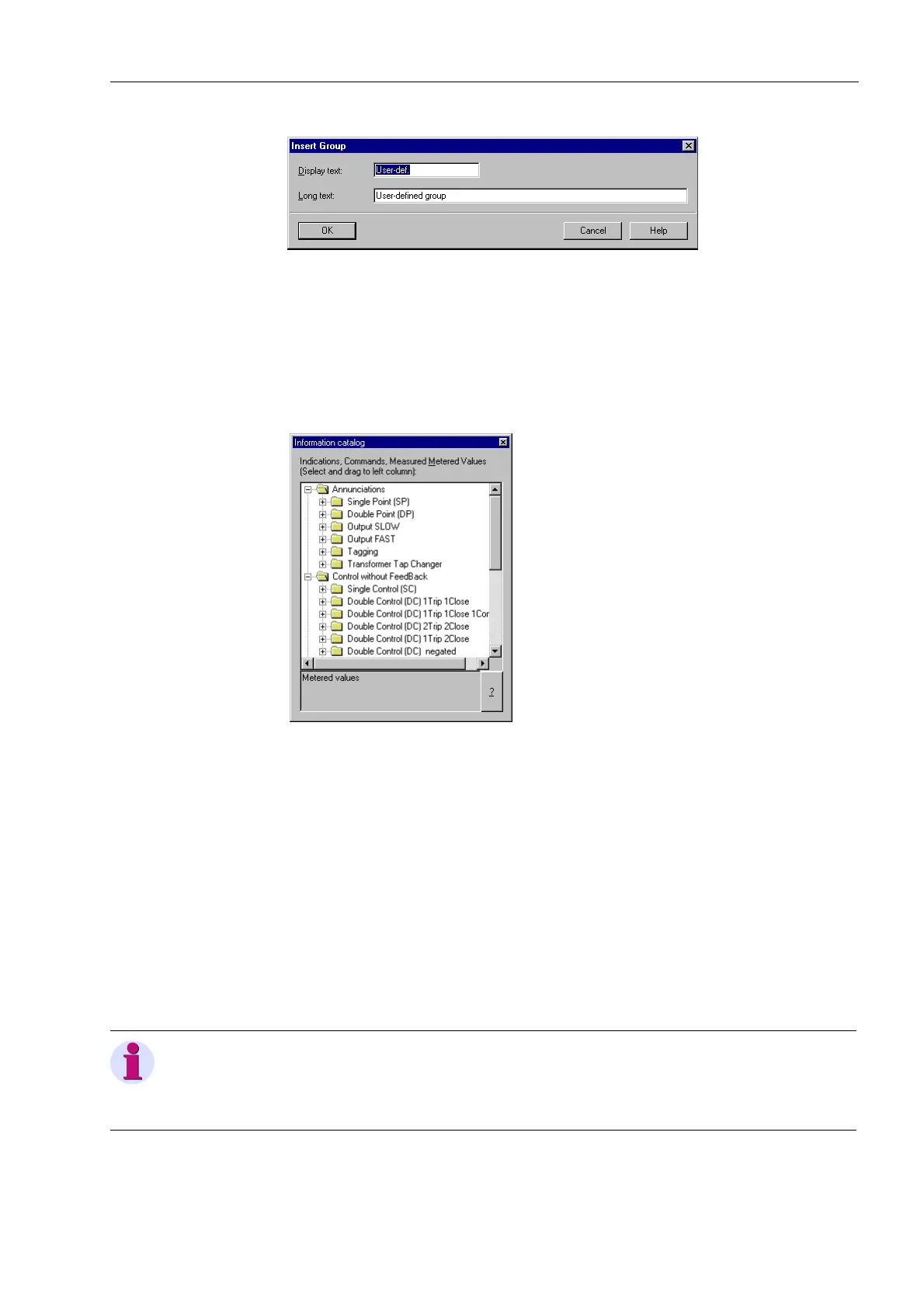

Figure 5-23 Entry of the name of a user defined information group
Information may be entered into the new information group using the information
catalog (Figure 5-24). The information catalog is found in the menu bar under the
9LHZ option, or via an icon in the toolbar. User information may be entered into both
the user defined groups and any other available information group.
Figure 5-24 Information catalog window
The information catalog is basically structured the same way as the DIGSI
®
4
Manager with folders and sub-folders. To proceed to information of sub-folders in the
catalog, click on a plus symbol or double-click on an folder icon. The designation of
the initial levels of the catalog correspond to the information groups $QQXQFLDWLRQV,
&RPPDQGV, 0HDVXUHG9DOXHV and 0HWHUHG9DOXHV.
To insert a specific information unit into an information group, first select it in the
catalog. Using the left mouse button, it should then be dragged from the
LQIRUPDWLRQFDWDORJ window to a group area on the left margin of the matrix. The
new information unit is then dropped into the appropriate group.
In order to change the user defined information, double-click on the item GLVSOD\
WH[W and ORQJWH[Wand edit the new text.
Note:
When inserting information of the type &RQWUROZLWK)HHG%DFN, two new rows will
be created within the group: one line for the actual command, and one for the
associated feedback message.
