Control During Operation
7-8 7SA6 Manual
C53000-G1176-C133-1
If no messages are present for a fault, then entrance is denied and “/LVW(PSW\” is
displayed.
The messages within a fault record are listed in chronological order and numbered,
from the oldest to the newest.
The inception of a fault is identified with the date and time in hours, minutes, and
seconds (resolution to ms). See the example in Figure 7-7.
The individual messages that are associated with the fault are tagged with a relative
time. At least one complete individual message always appears in the display.
Figure 7-7 Example of fault messages in the front display
Use the and keys to move up and down in the fault messages.
Use the key to move back into the 75,3/2* level; or press the key to go back
to the 0$,10(18.
From PC with
DIGSI
®
4
Click on $QQXQFLDWLRQ. The options appear in the data window (see Figure 7-2).
Double click on the desired message group in the data window, in this case the 7ULS
/RJ. A list appears in the data window, as shown in Figure 7-8.
By double clicking on an entry in the list view, the associated contents of the network
fault is displayed in another window. The entries are chronologically listed with the
newest message appearing first.

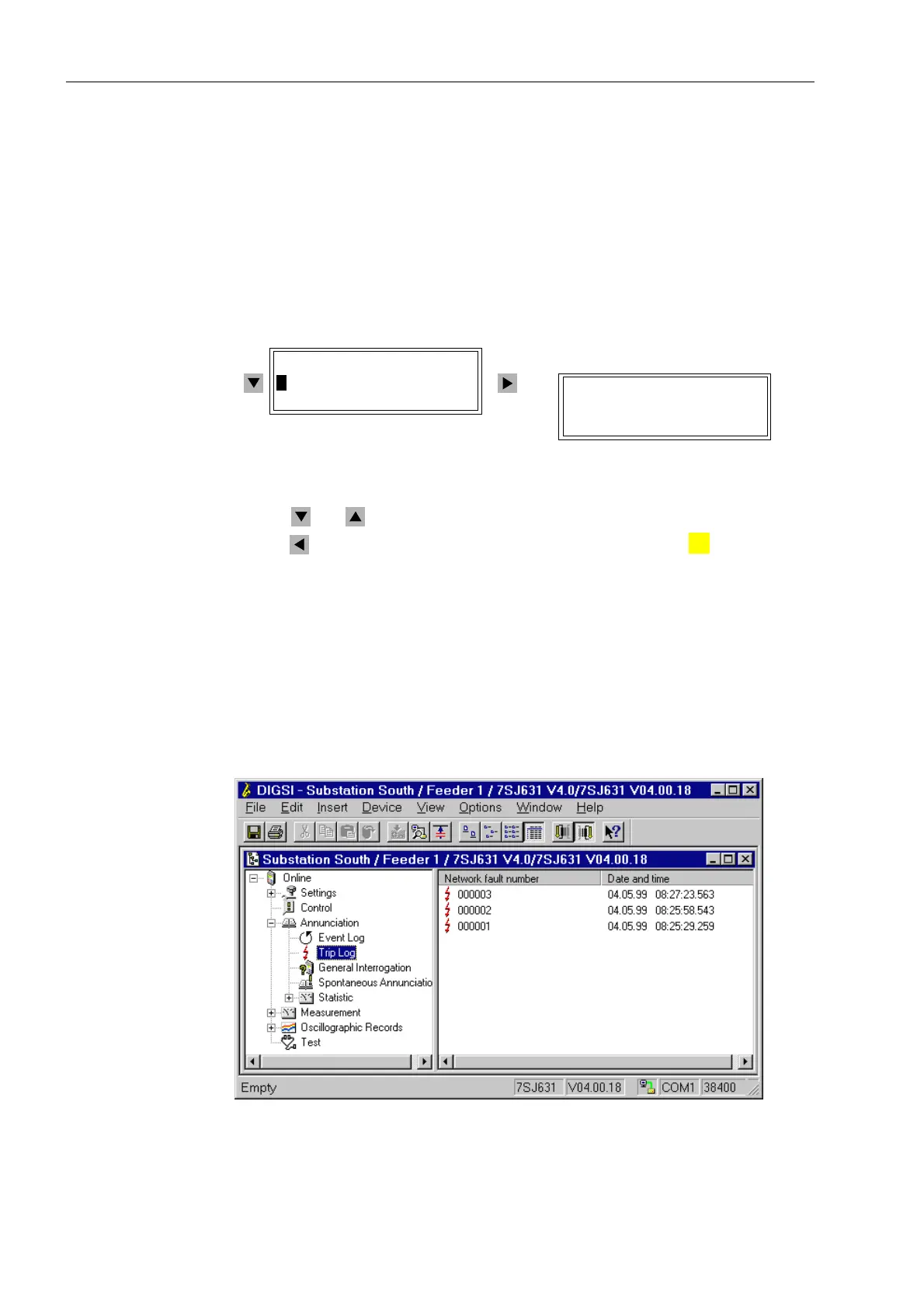

Figure 7-8 Selection of fault messages in DIGSI
®
4
75,3/2*

!/DVW)DXOW²!
!QG/DVW)DXOW²!
etc
/$67)$8/7


1HWZRUN)DXOW21

MENU
:
