Hardware and Connections
2-44 7SA6 Manual
C53000-G1176-C133-1

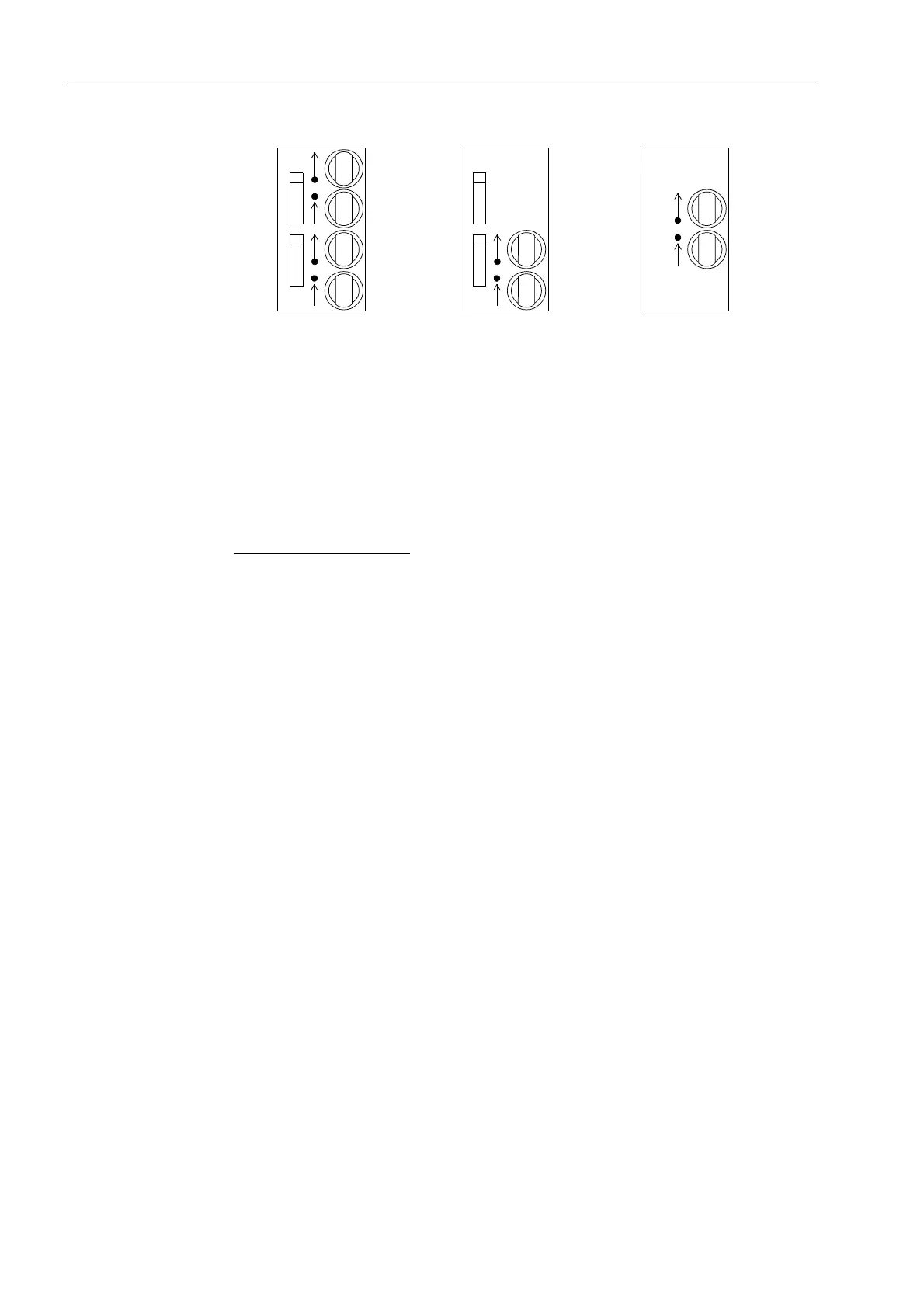

Figure 2-42 Optical communication interfaces with protective caps
Connections to
Optical
Communication
Interfaces with
ST-connector
Optical connector type: ST–connector
Fibre type: Multimode graded-index (“G”) optical fibre
G50/125 µm,
G62.5/125 µm,
G100/140 µm
Wavelength: λ = 820 nm (approximately)
Allowable bending radius:
For indoor cable r
min
= 5 cm (2 in)
For outdoor cable r
min
= 20 cm (8 in)
Laser class 1 (acc. EN 60825–1) is achieved with fibre type G50/125 µm and
G62.5/125 µm.
2 channel 1 channel
Ch1
P-Slave
Ch2
P-Master
UART
Ch1
P-Slave AMO
1 channel
