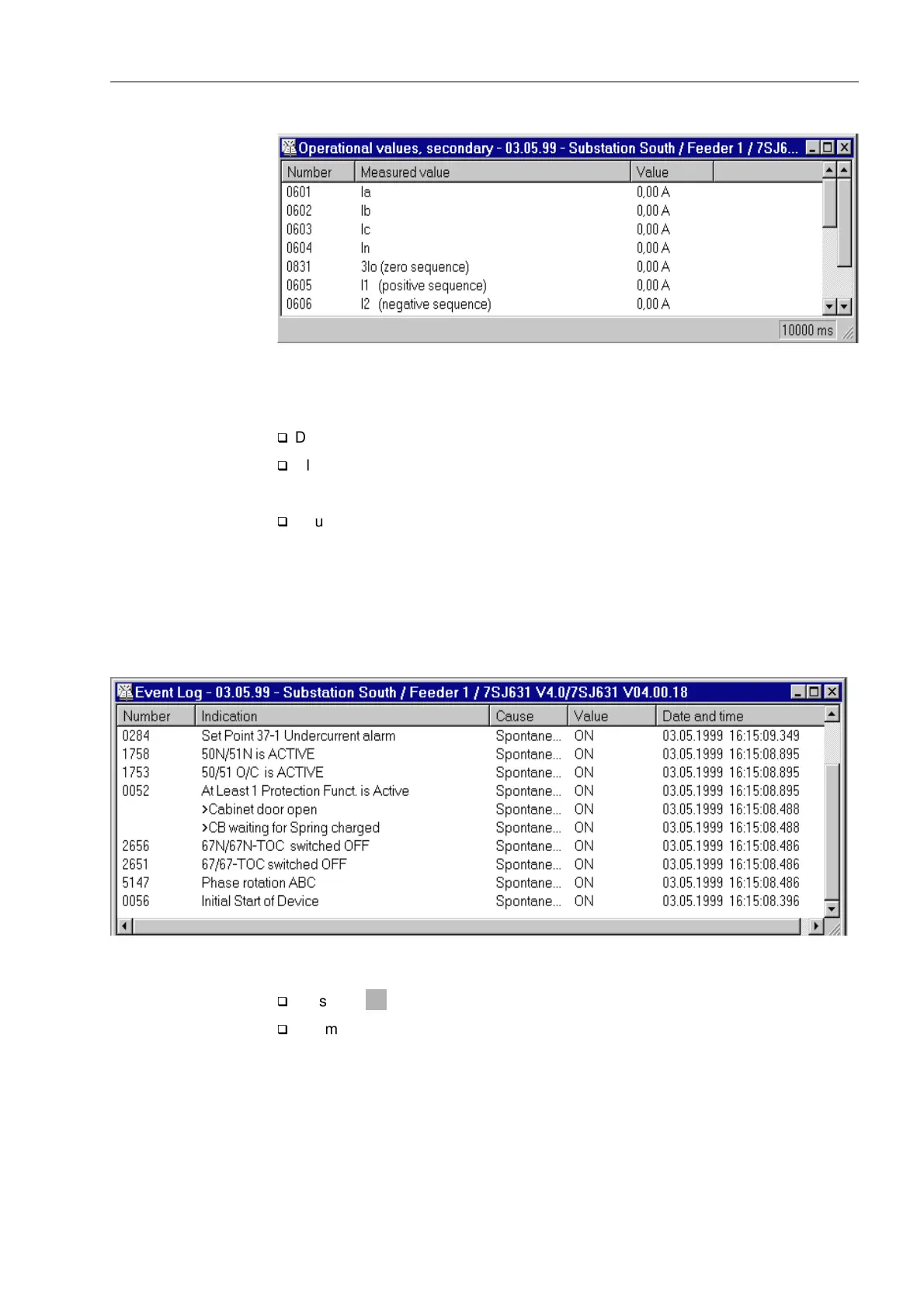

Figure 3-9 DIGSI

4 — Table of secondary operating measured values – example

Viewing

Operational

Messages

The read-out of operating messages is described to serve as an additional example.

Double click on $QQXQFLDWLRQ in the navigation window.

Click on (YHQW/RJ in the function selection.

The present date and time are shown in the data window.

Double click on this entry in the data window.

A table of the accumulated event messages is displayed. See Figure 3-10as an

example. The number designation for an event is provided with a description of the

message. The corresponding cause, value (ON or OFF), and date and time of the

event are given. The events are listed chronologically; the newest message is shown

first.

Figure 3-10 DIGSI

4 — Operational messages window — example

Press the key on the device; all LEDs should light while the key is pressed.

The message “Reset LED” appears as the newest message as soon as the window

is updated. The window can be updated by clicking on 9LHZ in the menu bar, and

then on 5HIUHVK. Pressing the F5 function key on the keyboard also updates the

window.

The operating messages can be saved in DIGSI

4, and also deleted from the

device’s memory as described in Sub-section 7.1.1.

LED
