Electrical installation
4.5 Connections
Cabinet Modules NEMA
130 Manual, 04/2014, A5E03586450A

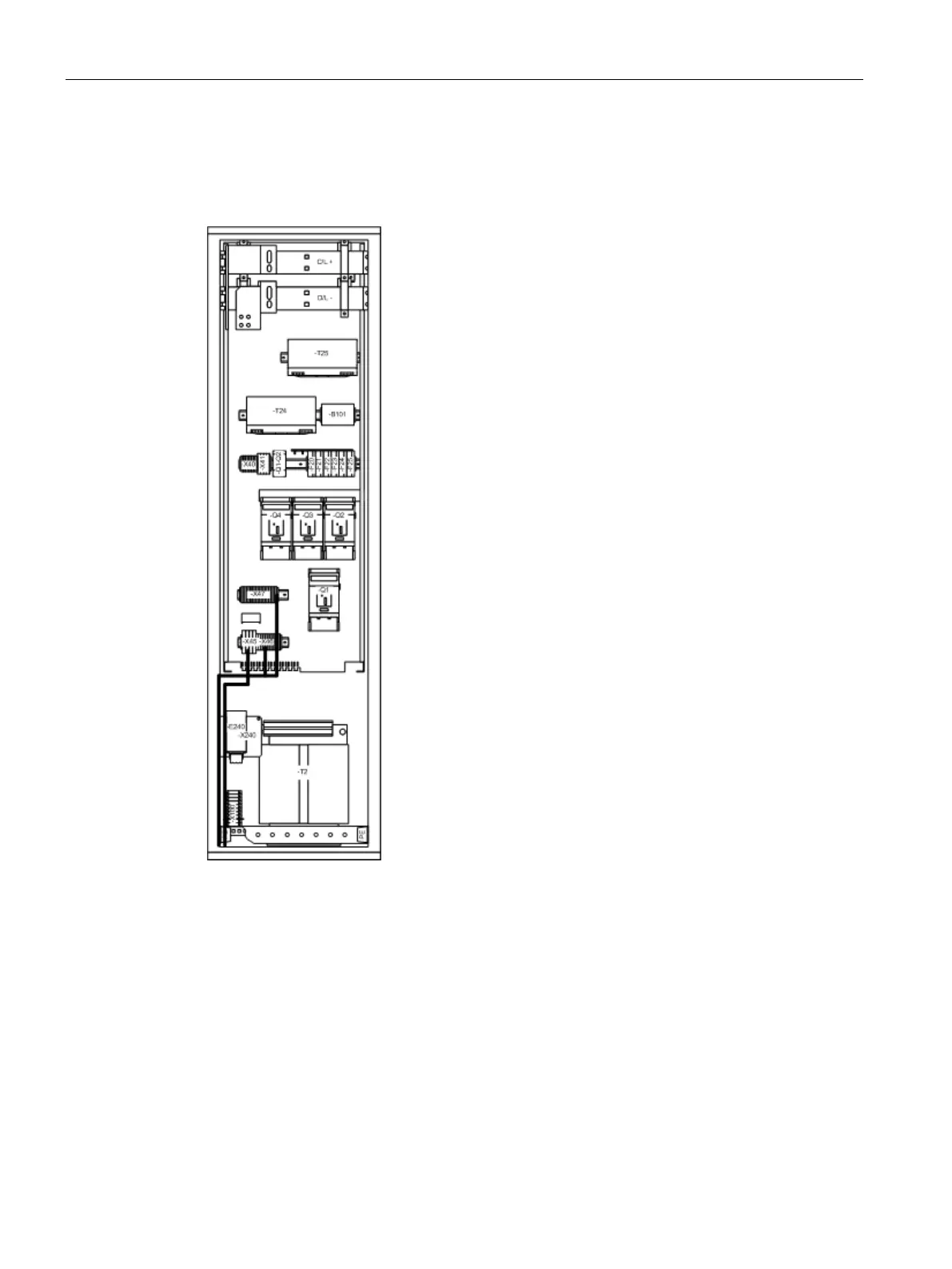

Cable routing for signal cables to terminal blocks -X45, -X46, -X47
Auxiliary Power
Supply Module
1.
Feed the cable into the cabinet from the bottom left.
2.
Guide the cable up and, when it reaches the terminal blocks, to the right.
3.
Secure the cable at suitable points.
4.
Connect the cable to terminals -X45, -X46, and -X47.
