Mechanical installation
3.3 Installation
Cabinet Modules NEMA
56 Manual, 04/2014, A5E03586450A

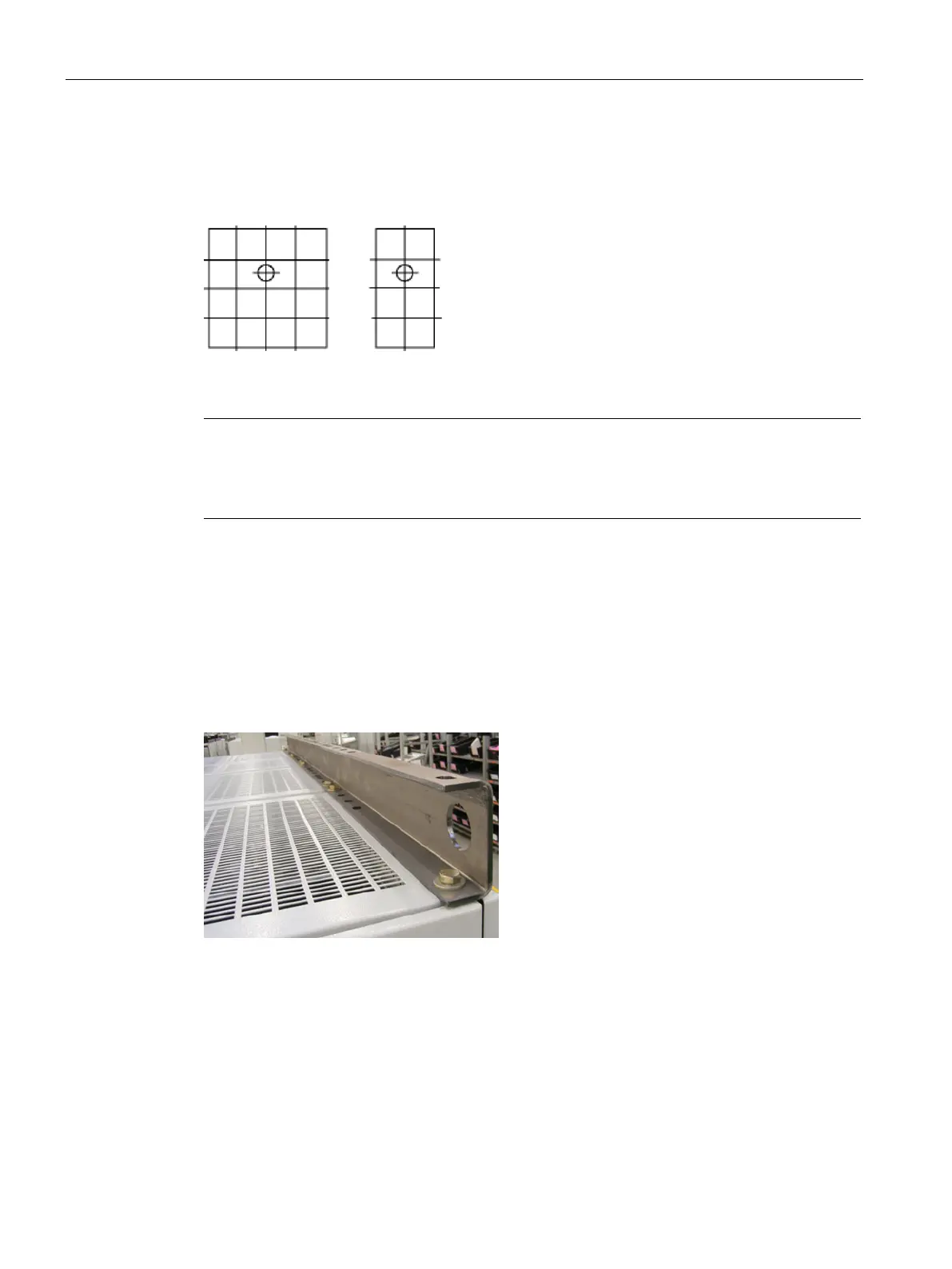

Center of gravity of cabinet
The diagram below shows the center of gravity of the cabinet (for all sizes), which must
always be taken into account when lifting and installing the cabinet.
Figure 3-8 Center of gravity of cabinet
Note
Center of gravity of cabinet
A sticker with the precise position of the center of gravity of the cabinet is attached to all
cabinets/transport units.
Disassembling the crane transport aids
With option M90 (crane transport aid), the Cabinet Modules are equipped with either
transport eyebolts or beams.
With option Y11 (assembly into transport units in the factory), the Cabinet Modules are
always equipped with a transport beam.
Figure 3-9 Option M90 / Y11, transport beams
