Siemens SIROTEC Device Manual

Cabinet Modules
5.3 Smart Line Modules
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
175
5.3.2.4
DRIVE-CLiQ interfaces X400, X401, X402

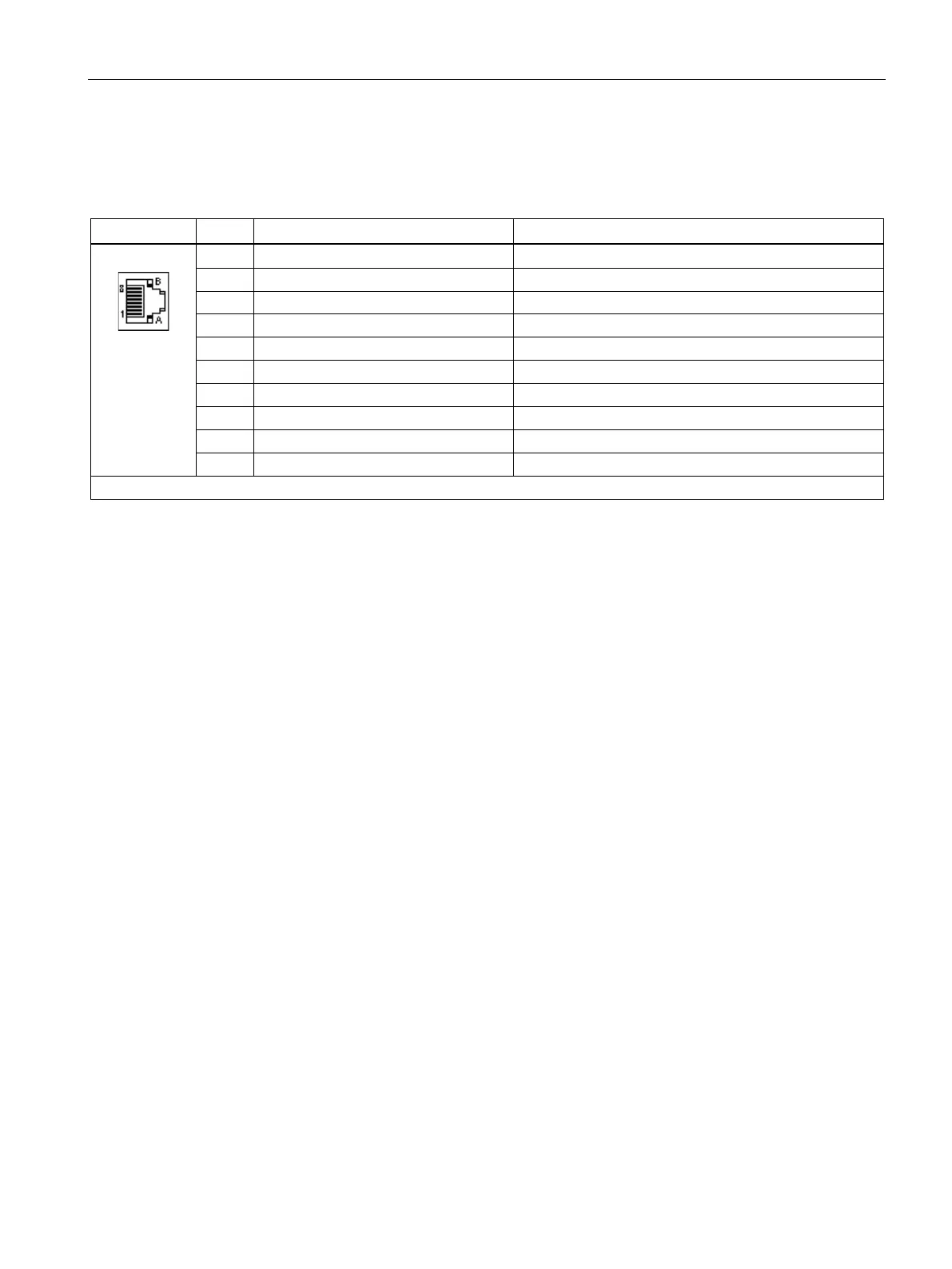

Table 5- 18 DRIVE-CLiQ interfaces X400, X401, X402
PIN
Signal name
Technical specifications
1
TXP
Send data +
2 TXN Send data -
3
RXP
Receive data +
4 Reserved, do not use
5
Reserved, do not use
6
RXN
Receive data -
7
Reserved, do not use
8
Reserved, do not use
A
+ (24 V)
24 V power supply
B
M (0 V)
Electronics ground
Blanking plate for DRIVE-CLiQ interfaces (50 pcs.) Order number: 6SL3066-4CA00-0AA0
