Cabinet Modules
5.4 Active Line Modules including Active Interface Modules
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
181
Active Line Modules including Active Interface Modules
5.4.1
Note
Additional information
Refer to the layout diagrams (AO) and circuit diagrams (SP) prov
ided on the customer DVD
supplied with the device for the arrangement of components and interfaces, and for wiring.

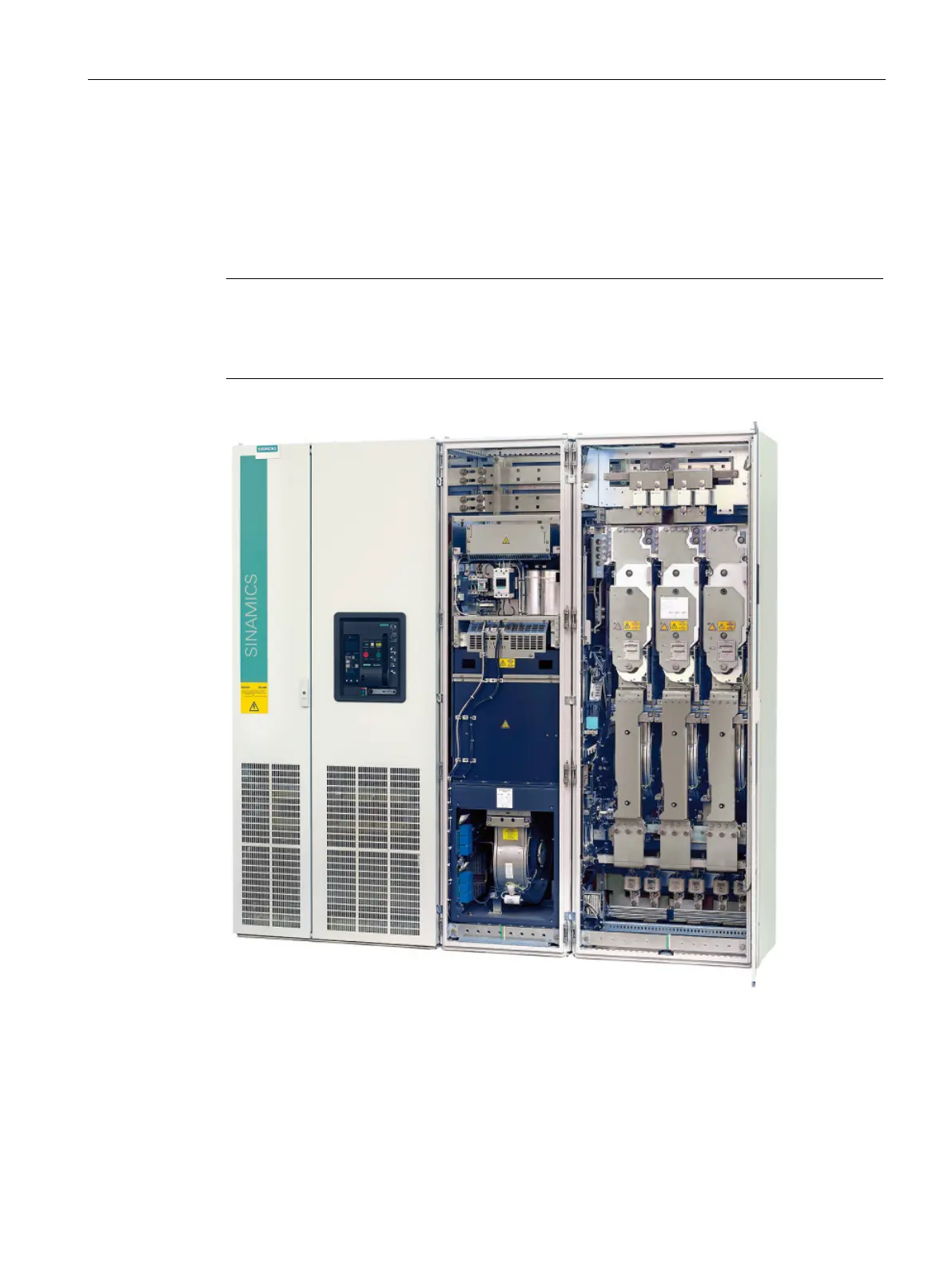

Figure 5-23 Active Line Module including Active Interface Module
