Options
8.36 M06, base 4" (100 mm) high, RAL 7022
Cabinet Modules NEMA
476 Manual, 04/2014, A5E03586450A
Note
Additional information
Detailed and comprehensive instructions and information for the insulation monitor can be
found in the accompanying operating instructions. These operating instructions are available
as additional documentation on the customer DVD supplied with the de
vice.
8.36
M06, base 4" (100 mm) high, RAL 7022
Availability of option
This option is available for the following S120 Cabinet Modules:
Line Connection Modules
Basic Line Modules
Smart Line Modules
Active Line Modules
Booksize base cabinets
Motor Modules in chassis format
Auxiliary Power Supply Modules
Description
Because it is raised 4" (100 mm), the supplementary cabinet base allows for greater bending
radii for cables (cable inlet from below) and cable routing within the base.
The cabinet base comes completely assembled and is usually color RAL 7022.

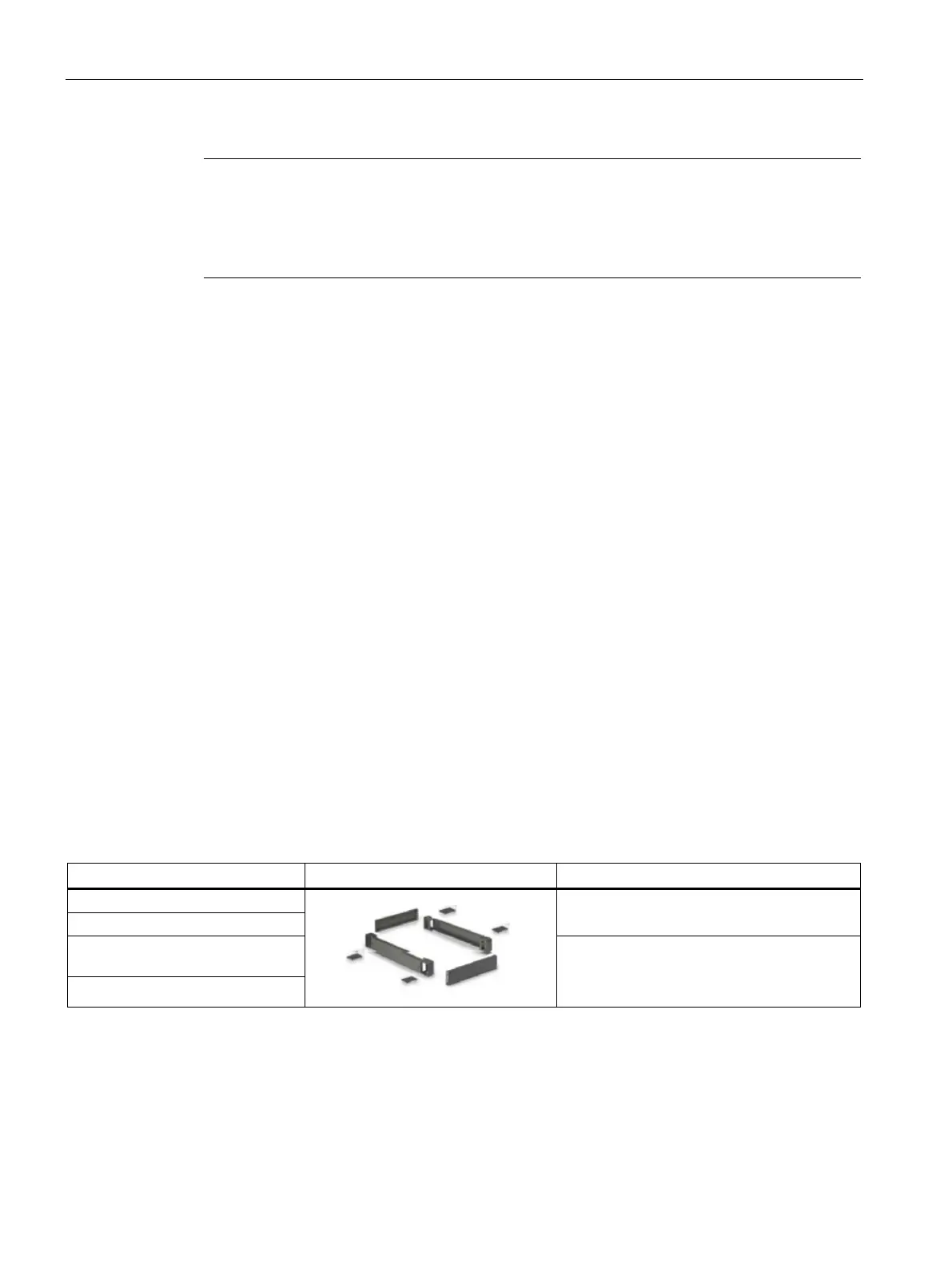

Table 8- 60 Components of the cabinet base
Component
Connection element
Fixing elements
1 x base element (rear)
On the cabinet:
The cabinet base is shipped pre-assembled.
1 x base element (front)
Base covers
(option M26/M27 only)
On the foundation:
The holes are in line with the holes in the
cabinet (see dimension drawings).
4 x cover caps
