System overview
2.4 Line Modules
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
29

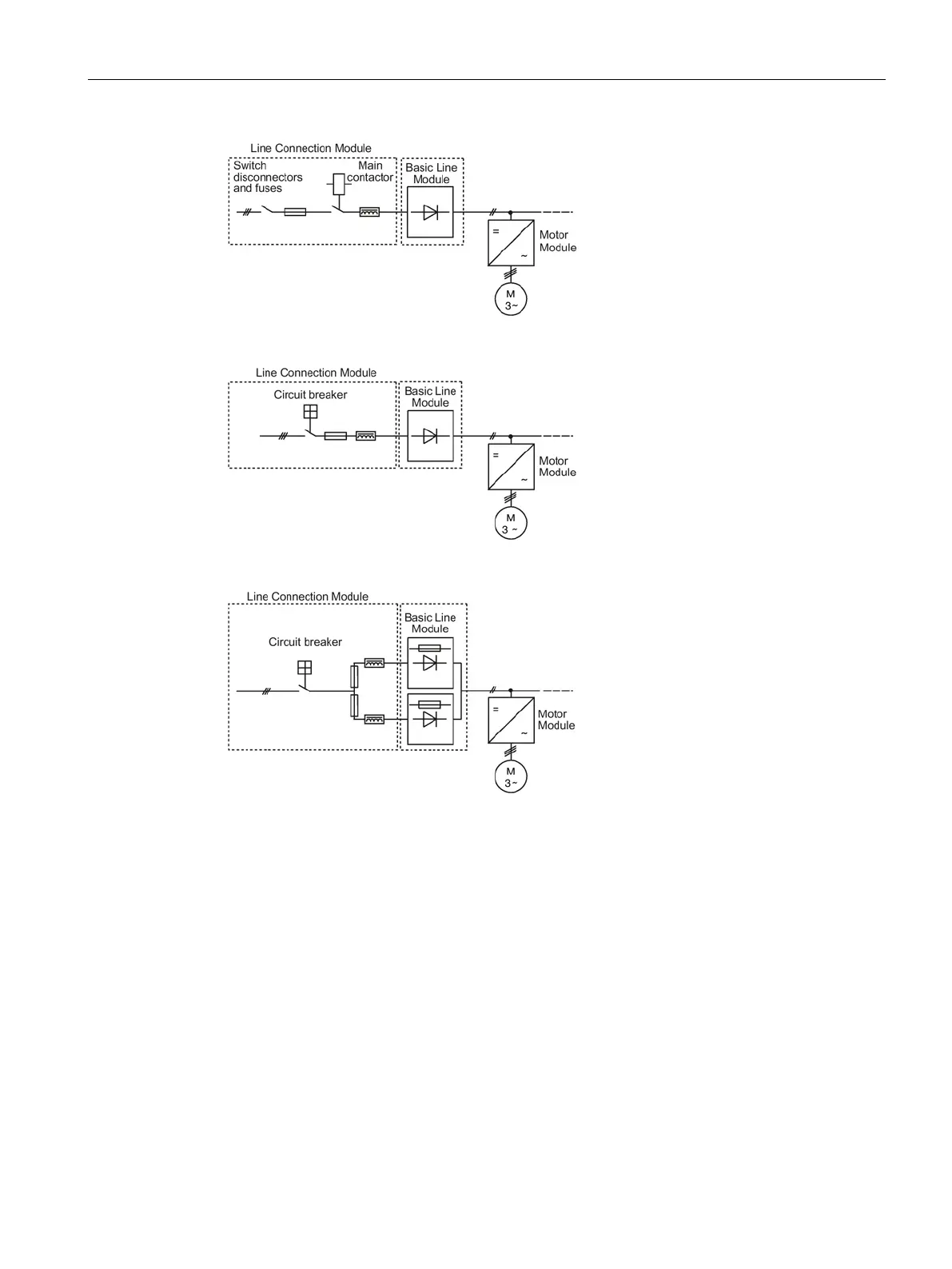

Figure 2-2 Line Connection Module with Basic Line Module ≤ 800 A
Figure 2-3 Line Connection Module with Basic Line Module > 800 A
Figure 2-4 Line Connection Module with Basic Line Modules connected in parallel
Smart Line Modules can supply energy to the DC link and return regenerative energy to the
supply system. A Braking Module and braking resistor are required only if the drives need to
be decelerated in a controlled manner after a power failure (i.e. when energy cannot be
recovered to the supply). When a Smart Line Module is used as the infeed, the appropriate
line reactor is included in the device as standard.
For a compact configuration, Line Connection Modules with input currents of up to 3000 A
are available. Two Smart Line Modules can be operated in parallel on these Line Connection
Modules.
