Mechanical installation
3.3 Installation
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
51
The following points must be observed to ensure full functionality of the cabinet units:
● The foundation must be level and horizontal.
● Irregularities must be leveled out.
● Gaps where air can enter caused by leveling measures (e.g.:
① in the diagram) must be
sealed.
Shipping and handling indicators
The cabinet units are equipped with tilt and shock indicators to monitor for damage during
transit.

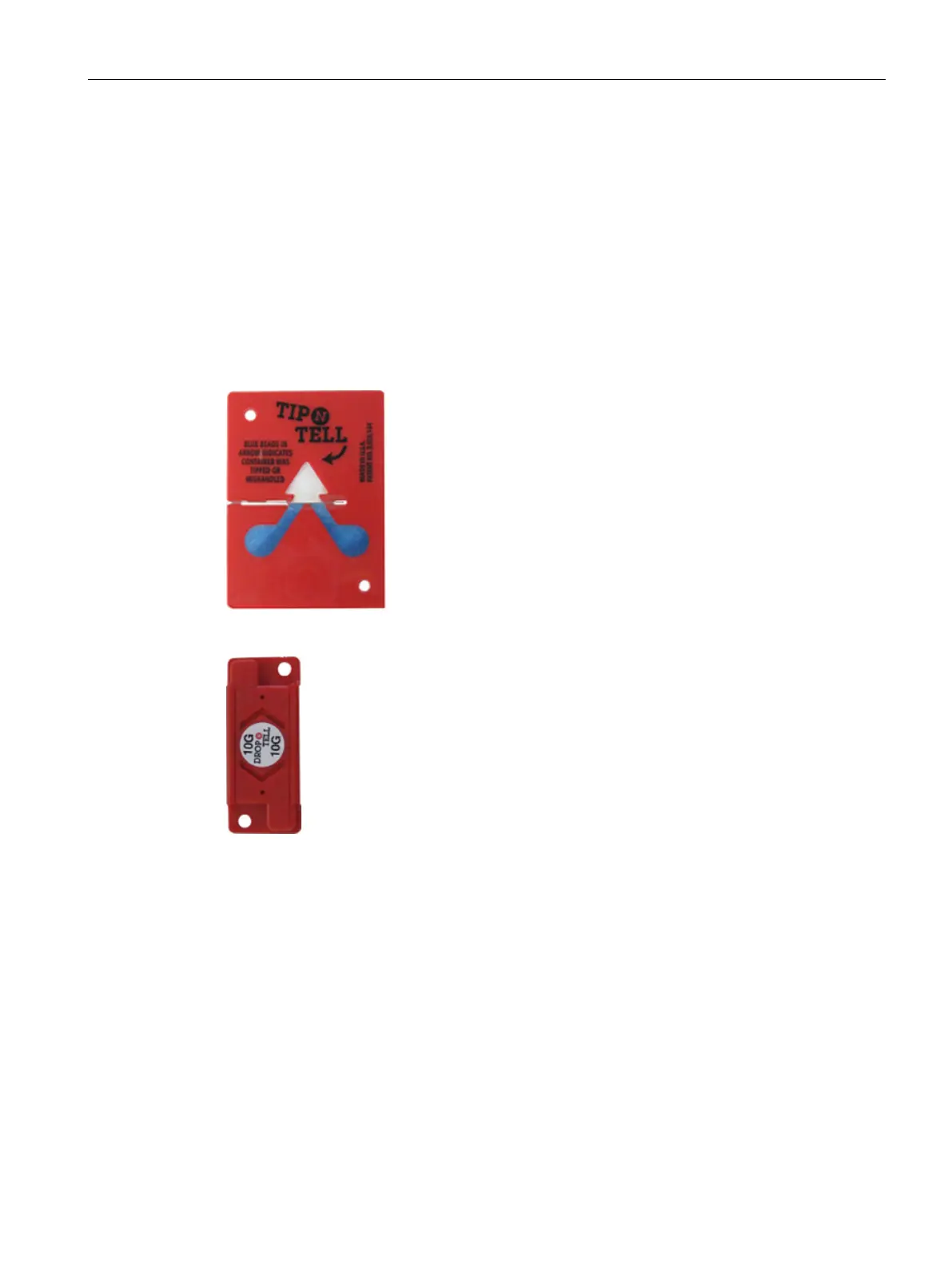

Figure 3-3 Tilt indicator
Figure 3-4 Shock indicator
Position of the shipping and handling indicators
The tilt indicators are affixed to the top of the cabinet unit, inside the doors.
The shock indicators are affixed to the bottom of the cabinet unit, inside the doors.
