Maintenance and servicing
6.4 Replacing components
Cabinet Modules NEMA
270 Manual, 04/2014, A5E03586450A
Replacing the power block, frame size HX
Replacing the power block, Smart Line Module, Active Line Module, and Motor Module, frame size
HX – left power block

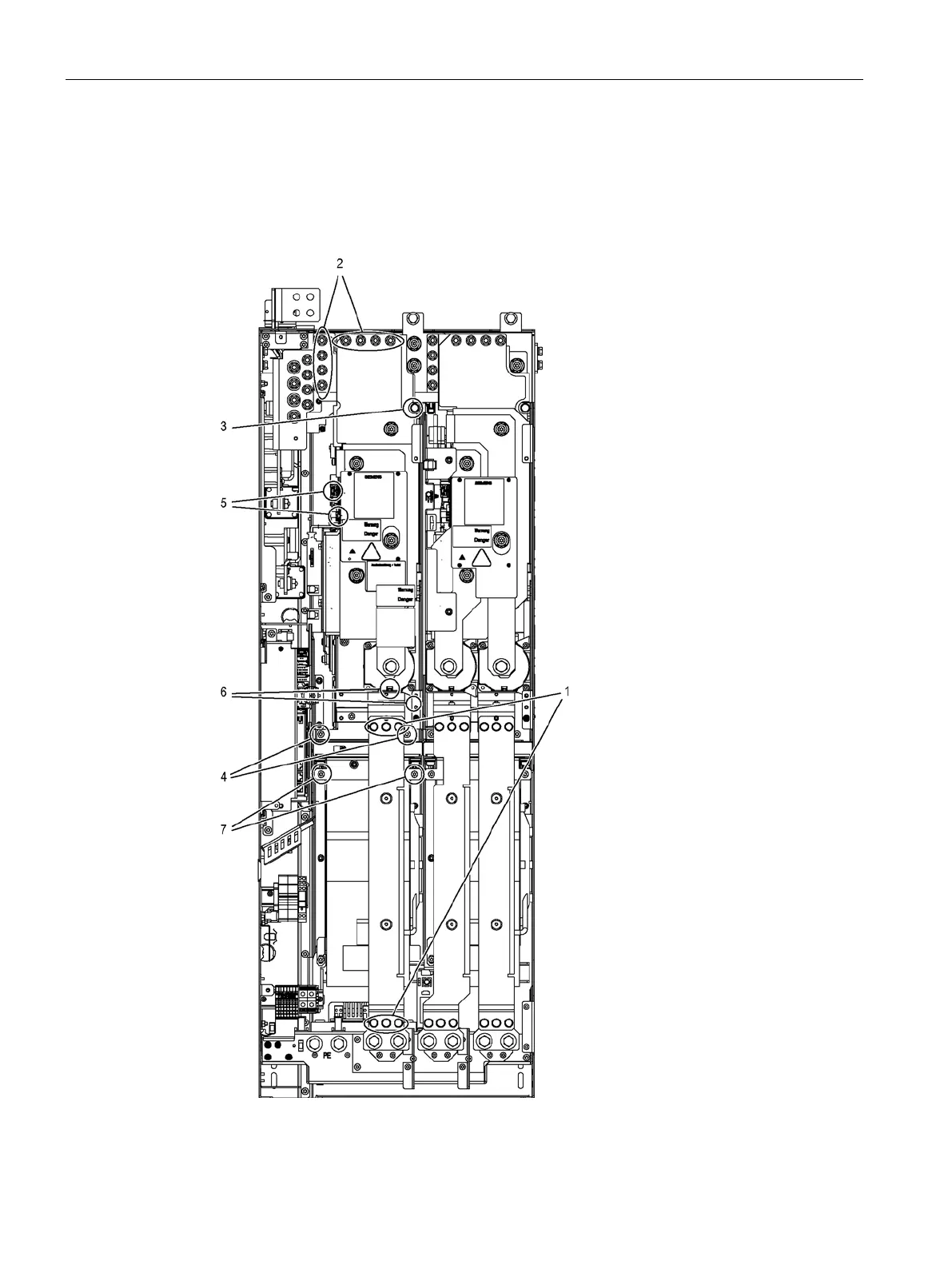

Figure 6-8 Replacing the power block, Smart Line Module, Active Line Module, and Motor Module,
frame size HX – left power block
