Options
8.11 K50, Sensor Module Cabinet-Mounted SMC30
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
385
Damage to motor when KTY temperature sensor is connected incorrectly
A KTY temperature sensor connected with incorrect polarity cannot detect if the motor
overheats. Overheating can cause damage to the motor.
• Connect a KTY temperature sensor with the correct polarity.
Damage to the encoder due to incorrect supply voltage
The encoder supply voltage can be assigned as 5 V or 24 V. Incorrect parameter
assignment can cause damage to the encoder.
• Select the appropriate supply voltage.
Note
Cable shield for the encoder connection via terminals
Note that when the encoder is connected via terminals, the cable shield must be applied to
the module.
Connection example
Connection example 1: HTL encoder, bipolar, without zero mark -> p0405 = 9 (hex)

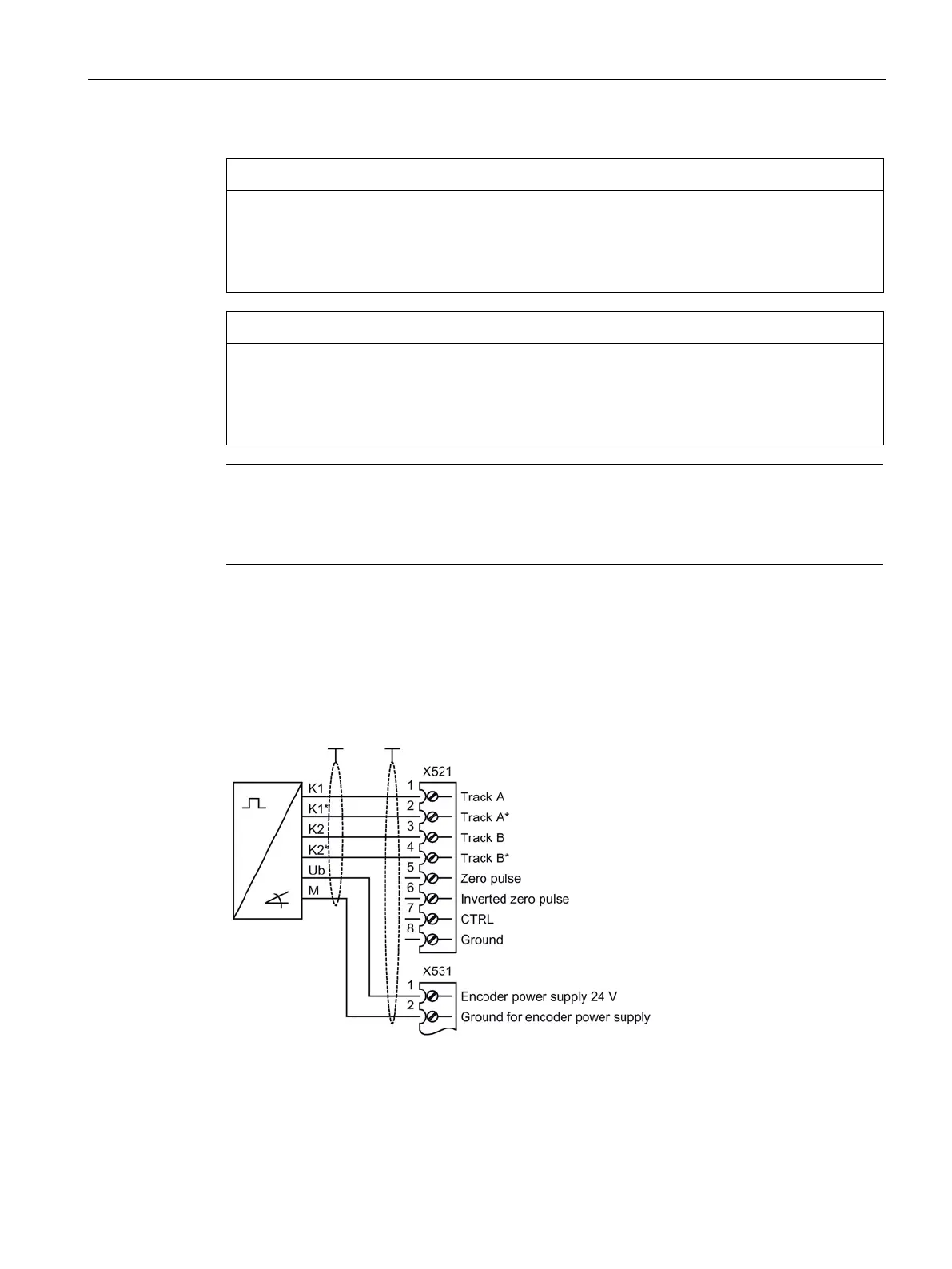

Figure 8-20 Connection example 1: HTL encoder, bipolar, without zero mark
