Cabinet Modules
5.2 Basic Line Modules
Cabinet Modules NEMA
158 Manual, 04/2014, A5E03586450A
5.2.2.2
Control Interface Module

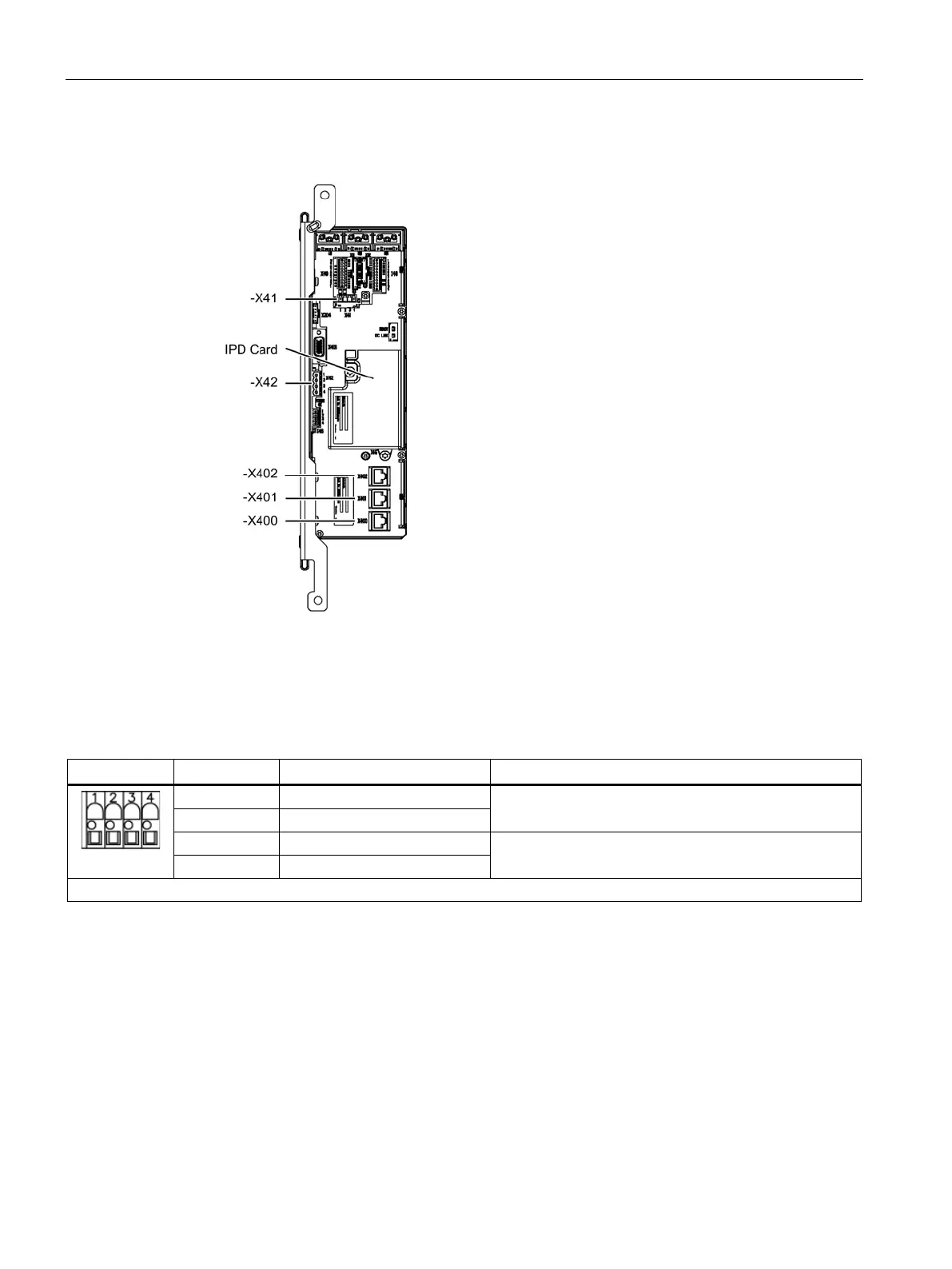

Figure 5-17 Control Interface Module
5.2.2.3
X41 EP terminal / temperature sensor connection
Table 5- 13 Terminal strip X41 EP terminals / temperature sensor connection
Terminal
Function
Technical specifications
1
EP M1 (enable pulses)
Supply voltage: 24 V DC (20.4 to 28.8 V)
Power consumption: 10 mA
2
EP +24 V (enable pulses)
3 - Temp Temperature sensor connection:
KTY84-1C130 / PTC
4
+ Temp
Max. connectable cross-section: #16 AWG (1.5 mm
2
)
