Options
8.5 G51 to G54, TM150 temperature sensor module
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
361
8.5.3
Connection example

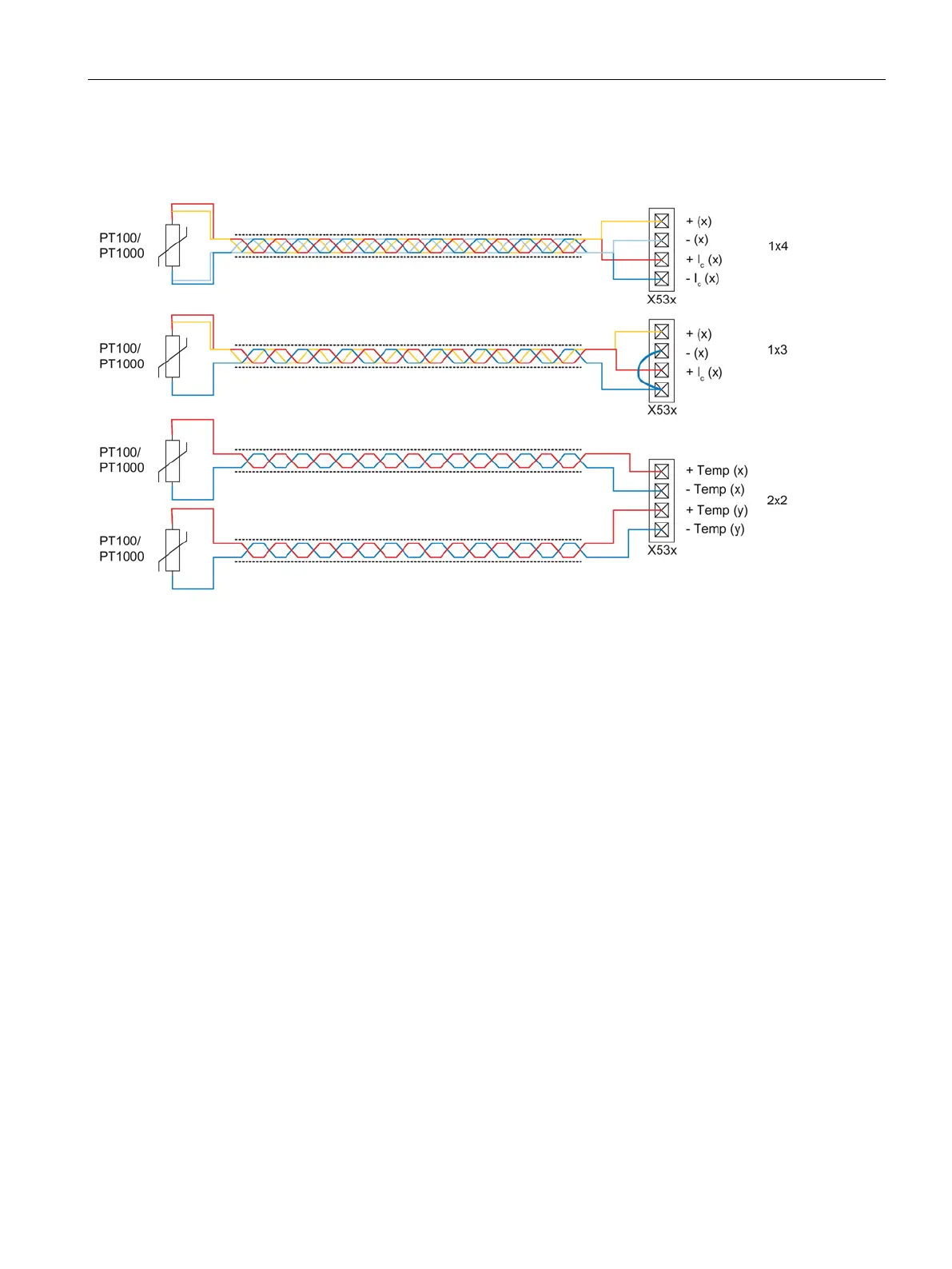

Figure 8-8 Connecting a PT100/PT1000 with 2x2-, 3-, and 4-wires to the temperature sensor inputs X53x of TM150
Terminal Module
