8.4 G33, CBE20 Communication Board
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
353
G33, CBE20 Communication Board
Availability of option
This option is available for the following S120 Cabinet Modules:
● Basic Line Modules
● Smart Line Modules
● Active Line Modules
● Booksize Cabinet Kits
● Motor Modules in chassis format

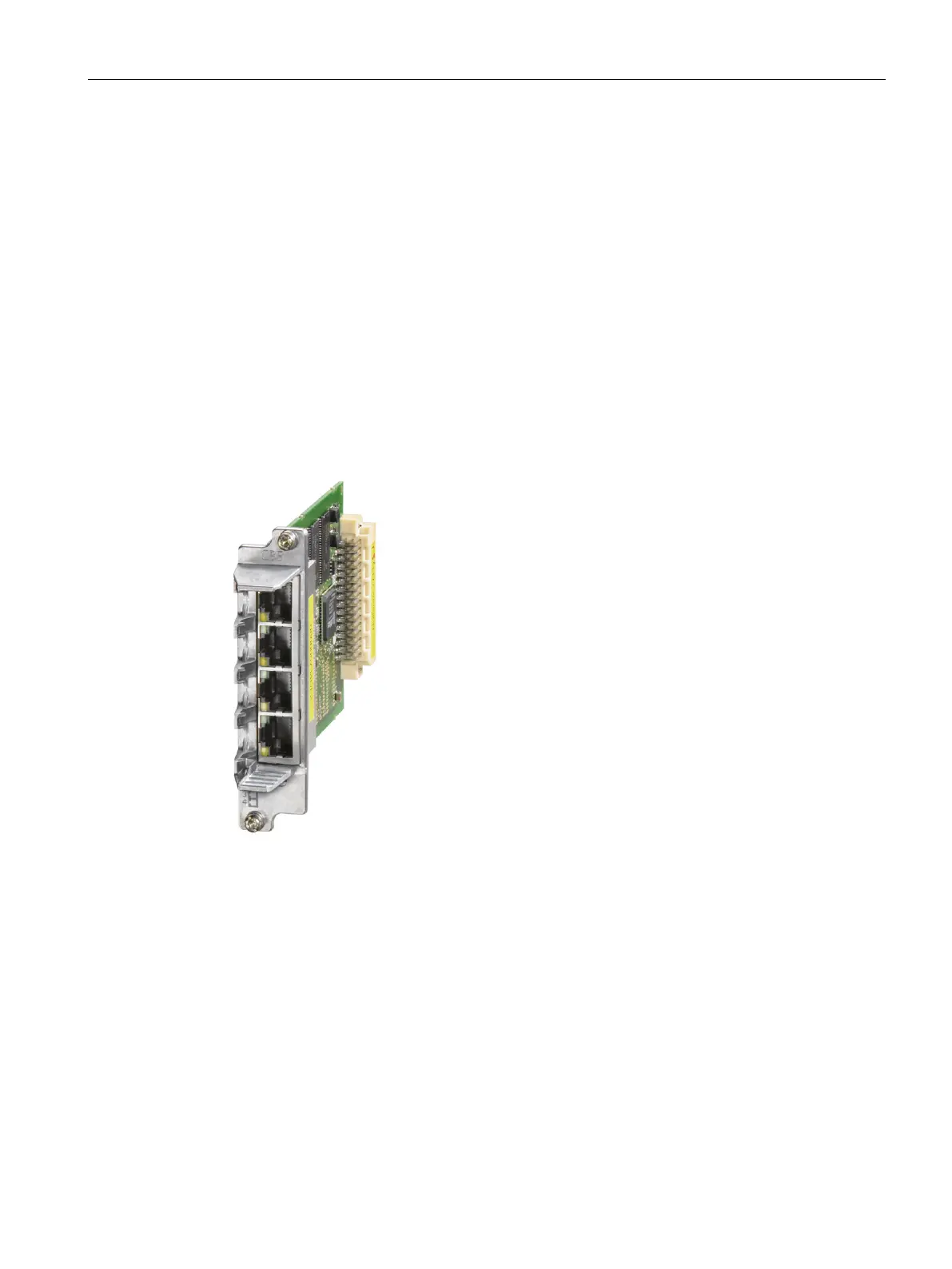

Figure 8-3 CBE20 Ethernet Communication Board
Interface module CBE20 is used for communication via PROFINET.
The module is installed in the factory in the option slot of the CU320-2 Control Unit.
There are 4 Ethernet interfaces available on the module. Diagnosis of the function mode and
communication are possible via LEDs.
