Lifting the cabinet units off the transport pallet and installing them
The applicable local guidelines for transporting the cabinet from the transport pallet to the
installation location must be observed.
Crane transport aids (option M90) can also be fitted on the top of the cabinet.
The fixing screws of the transport pallets can be removed without having to lift the cabinet
unit. The positions of the fixing screws are indicated by red markings on the outside of the
pallets.

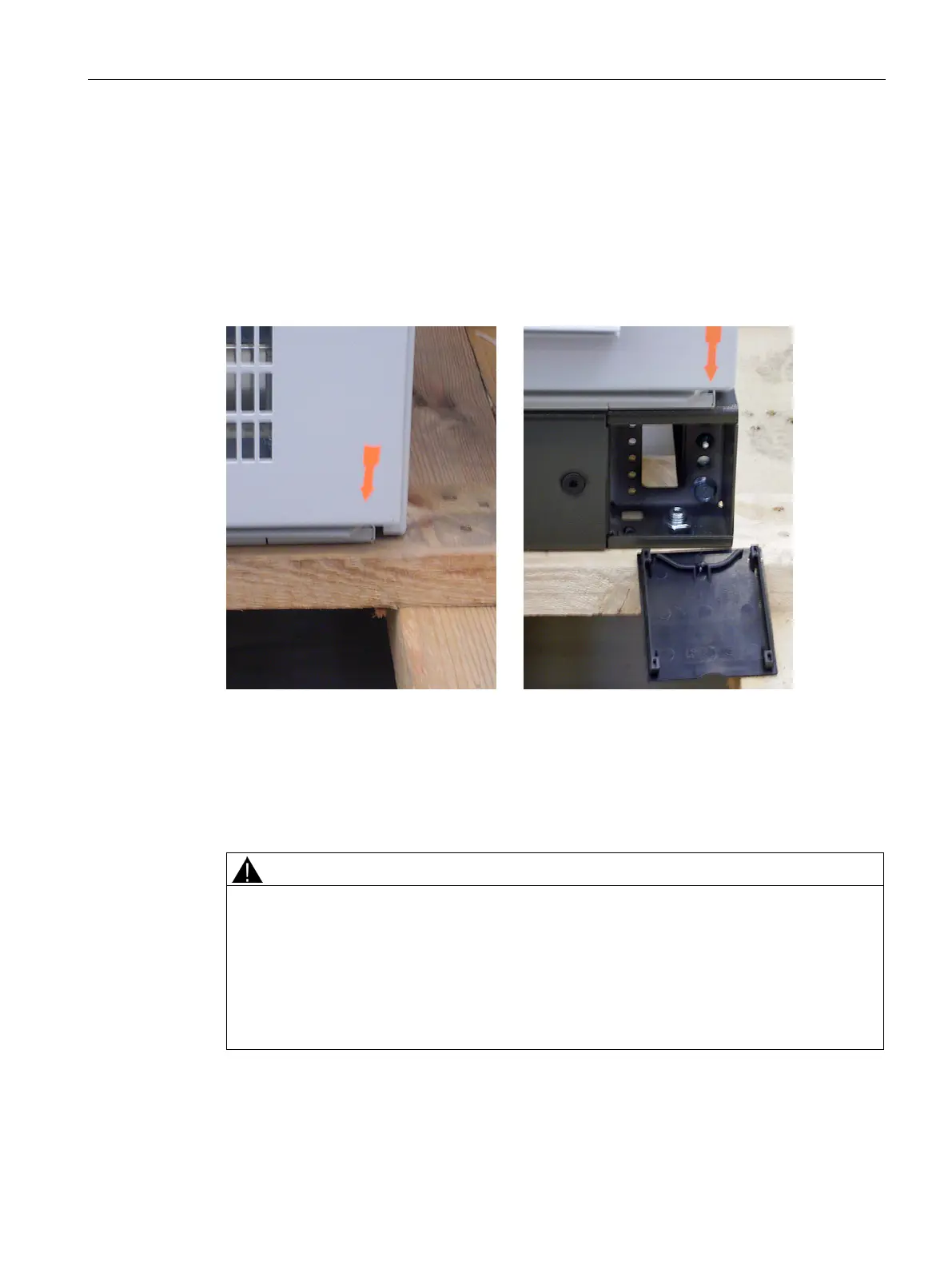

Figure 3-7 Lifting from the transport pallet (left: without base; right: with base)
For cabinet units without base (in the figure on the left), the fixing screws of the transport
pallets must be removed from the underside of the pallet.
For cabinet units with base (in the figure on the right), the fixing screws of the transport pallet
are accessible only after the cover is opened. They can then be loosened and removed
directly from the front.
Risk of death resulting from failure to observe the weight and center of gravity
Failure to observe the weight and center of gravity can cause death or serious injury during
lifting and transport activities.
• The weight specified on the packaging and the marked center of gravity must always be
taken into account when the cabinet is lifted and transported.
• Particular attention must be paid to this hazard potential after unscrewing the cabinet
units from the transport pallet.
