Options
8.34 L61/L62, L64/L65, braking units
Cabinet Modules NEMA
466 Manual, 04/2014, A5E03586450A
8.34.4
Braking Module
Braking module for frame sizes FX, FB

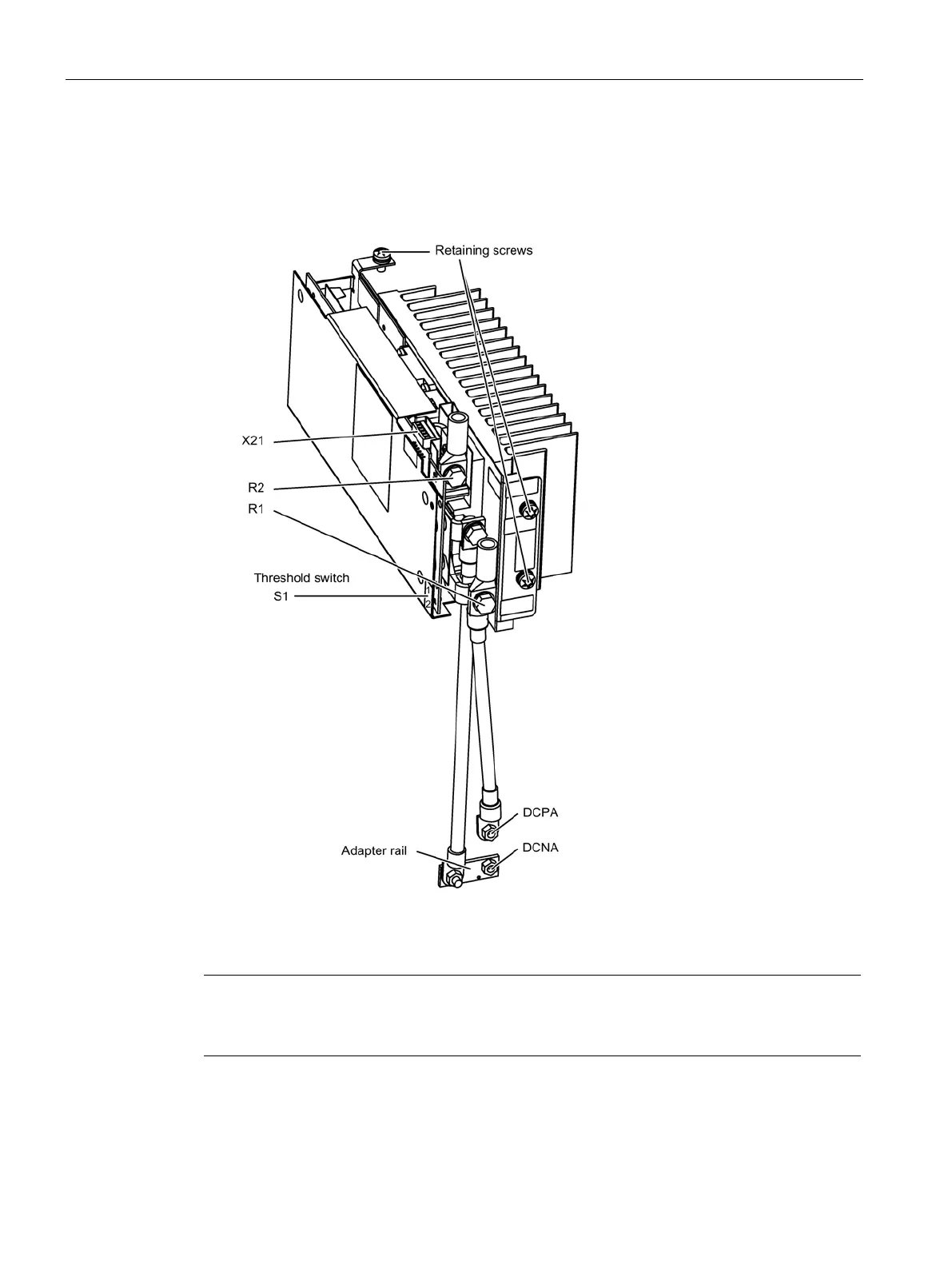

Figure 8-41 Braking module for Active Line Module / Motor Module, frame size FX and for Basic Line
Module, frame size FB
Note
Connection of interfaces
With this braking module, the R1 and DCPA interfaces use the same connection.
