Options
8.34 L61/L62, L64/L65, braking units
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
467
Braking module for frame sizes GX, GB

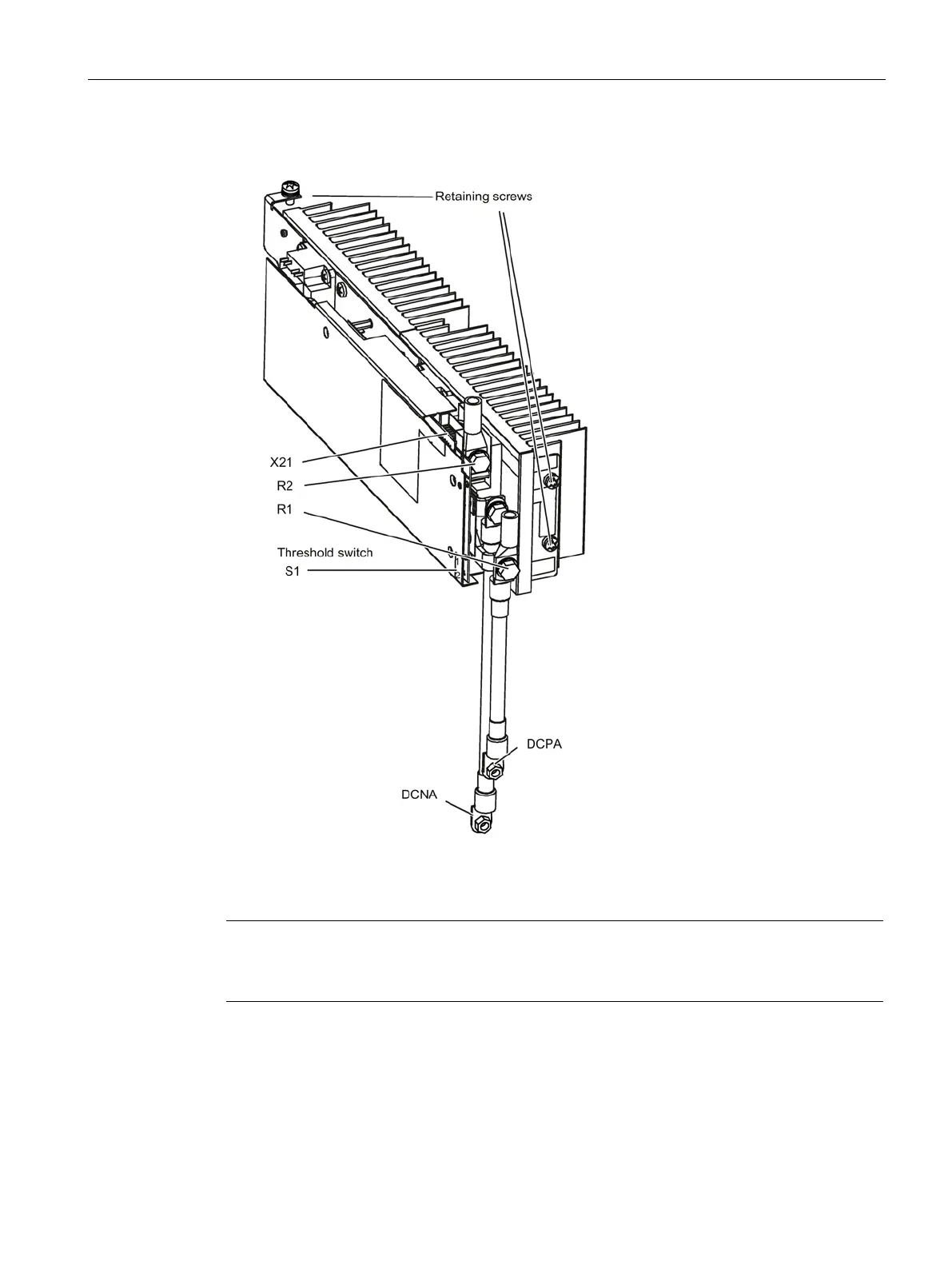

Figure 8-42 Braking module for Smart Line Module / Active Line Module / Motor Module, frame size
GX and for Basic Line Module, frame size GB
Note
Connection of interfaces
With this braking module, the R1 and DCPA interfaces use the same connection.
