Siemens SIROTEC Device Manual

Cabinet Modules
5.1 Line Connection Modules
Cabinet Modules NEMA
142 Manual, 04/2014, A5E03586450A

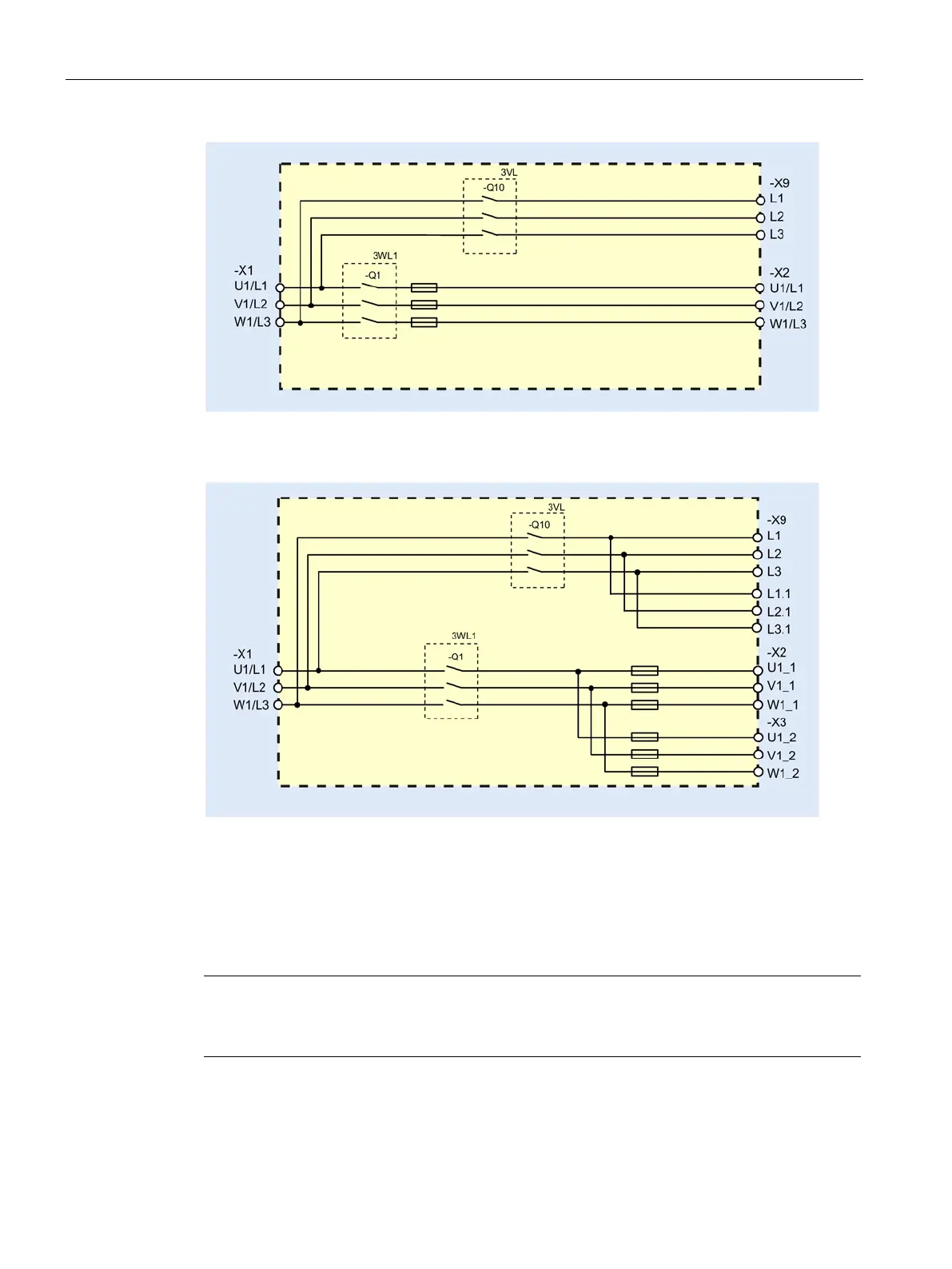

Figure 5-12 Connection example: Line Connection Module >800 A for connection to Smart Line
Modules, option L44
Figure 5-13 Connection example: Line Connection Module >1600 A for connection to Smart Line
Modules in parallel connection, option L44
5.1.3
Options
Note
Additional information
The individual options are
described in the section "Options".
