Cabinet Modules
5.4 Active Line Modules including Active Interface Modules
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
183
Integration

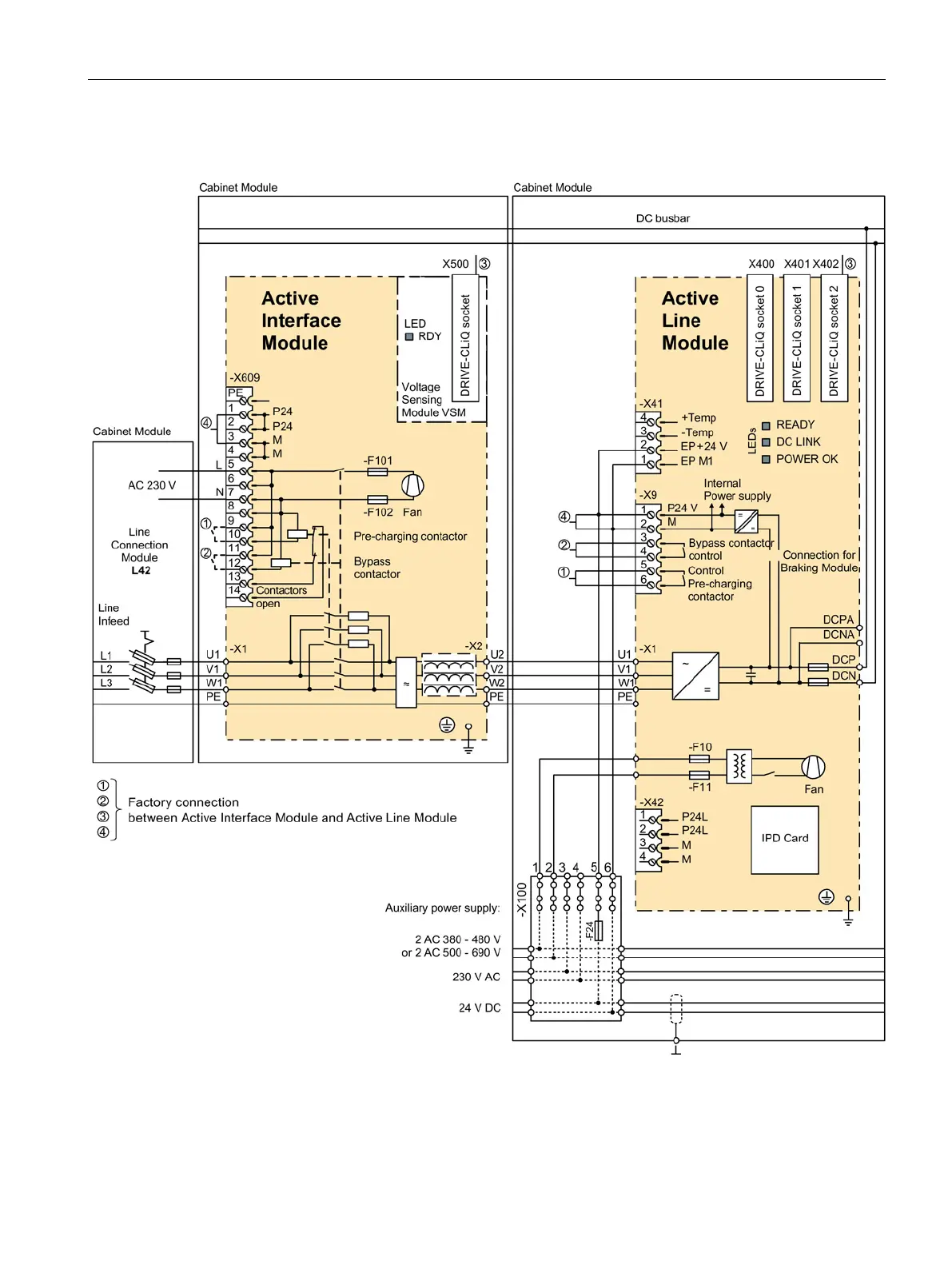

Figure 5-24 Connection example for Active Line Modules (frame size FI/FX and GI/GX)
