System overview
2.4 Line Modules
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
31
Active Line Modules are always used in conjunction with an Active Interface Module. Active
Interface Modules include the required pre-charging input circuit for the Active Line Module,
in addition to a Clean Power Filter.
These two components are considered to be an integral unit for SINAMICS S120 Cabinet
Modules NEMA and are supplied together.
For a compact configuration, Line Connection Modules with input currents of up to 3000 A
are available. Two Active Line Modules with their associated Active Interface Modules can
be operated in parallel on these Line Connection Modules.

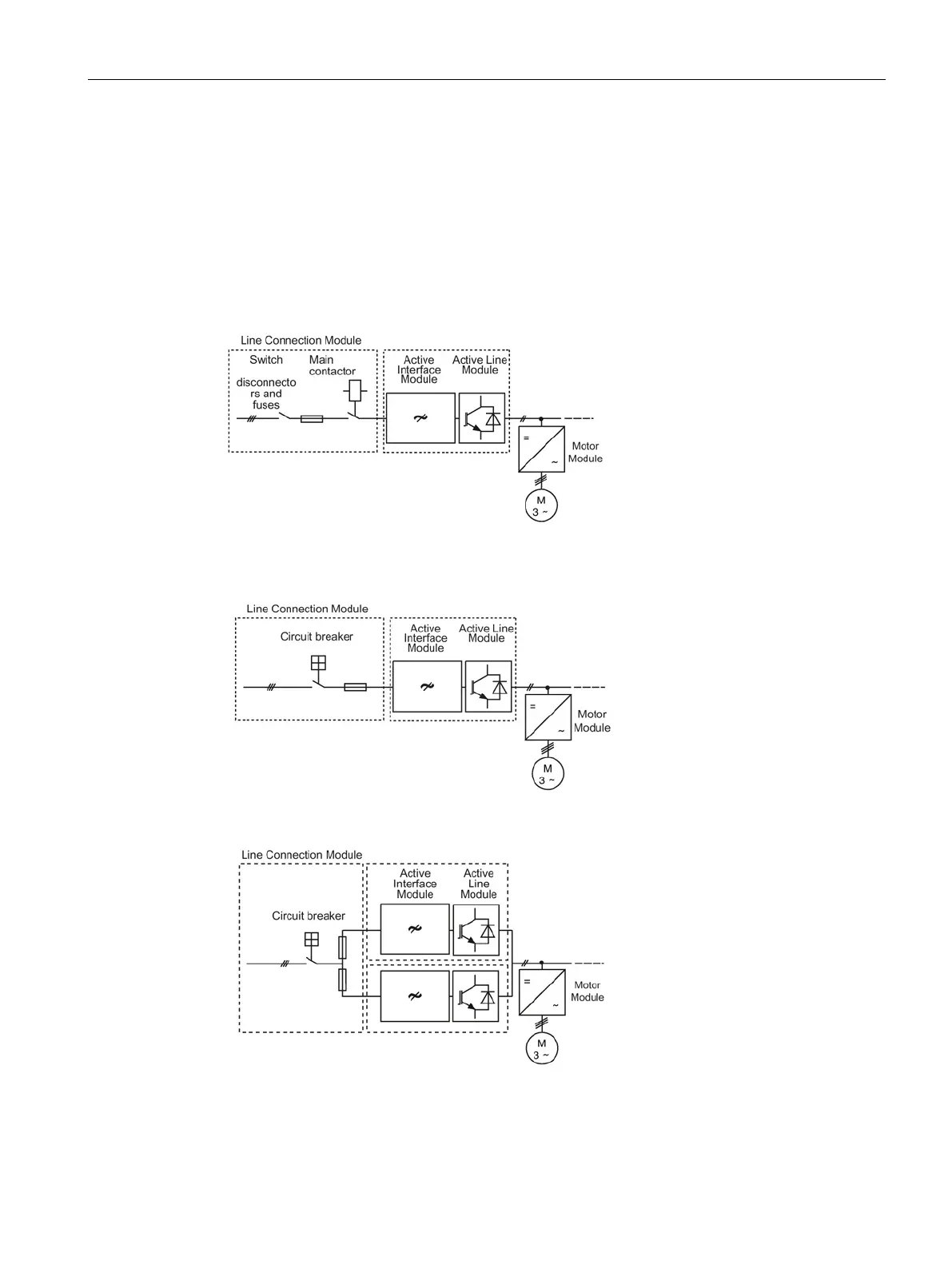

Figure 2-8 Line Connection Module with Active Interface Module and Active Line Module ≤ 800 A,
example frame size HX + HI
Figure 2-9 Line Connection Module with Active Interface Module and Active Line Module > 800 A
Figure 2-10 Line Connection Module with Active Interface Modules and Active Line Modules
connected in parallel
