8.37 M07, cable marshalling compartment 8" (200 mm) high, RAL 7035
Cabinet Modules NEMA
478 Manual, 04/2014, A5E03586450A

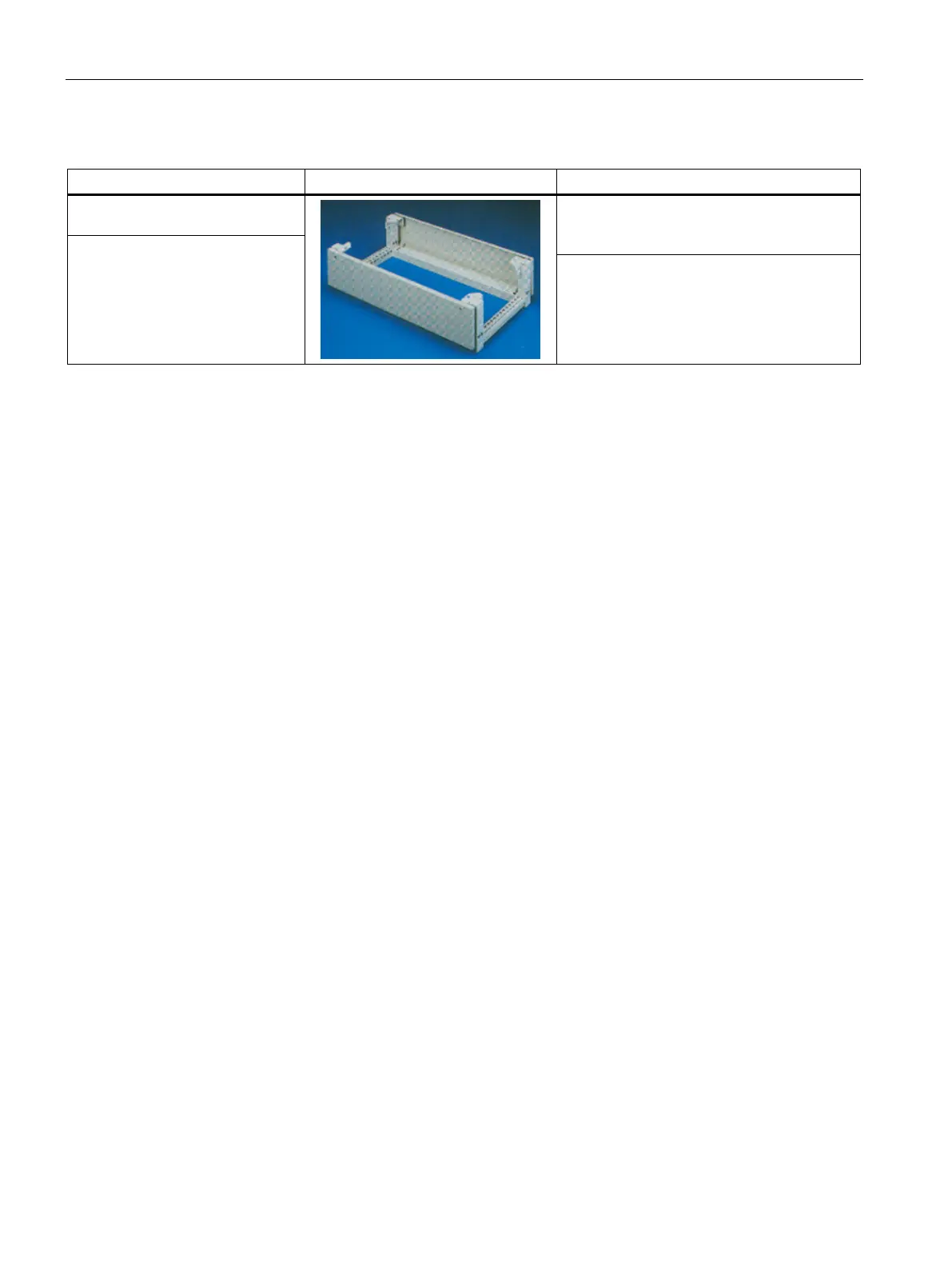

Table 8- 61 Components of the cable marshalling compartment
1 x cable marshalling compartment
On the cabinet:
The cabinet's cable marshalling compartment
is shipped pre-assembled.
Side shutters
(not shown)
for the cable marshalling compart-
ment
(option M26/M27 only).
On the foundation:
The holes are in line with the holes in the
cabinet (see dimension drawings).
Connection to the foundation
To connect the cable marshalling compartment to the foundation, four holes for M12 screws
are provided. These are in line with the holes in the cabinet. The fixing dimensions are
specified in the dimension drawings.
Connection for side-by-side installation of cabinet units
The individual cable marshalling compartments are not connected for cabinet units installed
in a side-by-side configuration. The connection from the cable marshalling compartments to
the cabinet and between the cabinet units ensures sufficient stability.
Side shutters for cable marshalling compartments
When the cabinet units are installed in a side-by-side configuration, the side shutters can be
folded inward and upward.
