Mechanical installation
3.3 Installation
Cabinet Modules NEMA
62 Manual, 04/2014, A5E03586450A

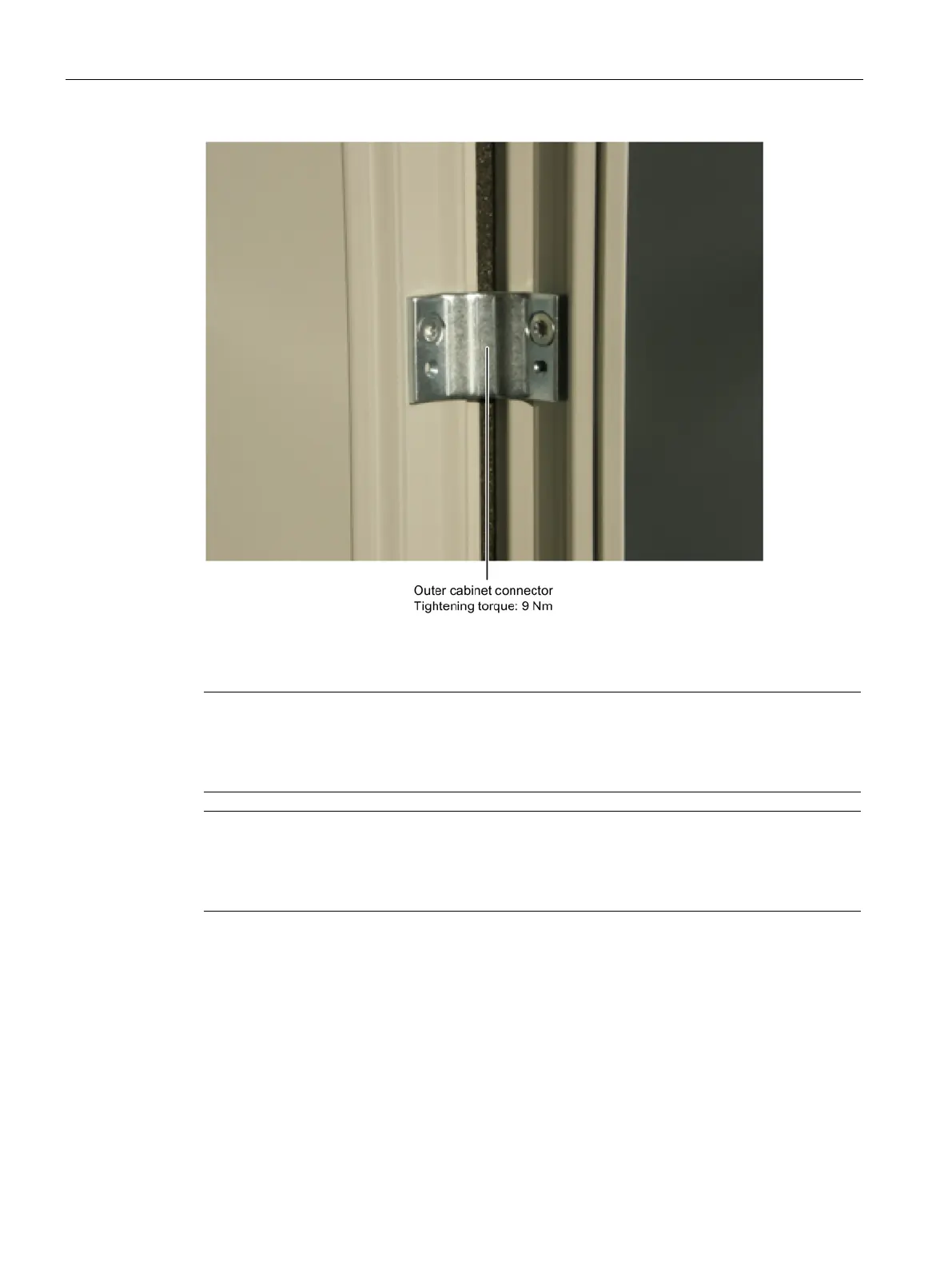

Figure 3-15 Outer cabinet connector
Note
Installation of the canopy or top hat at an early stage
We recommended that you attach the canopy or top hat at an early stage to prevent
foreign
bodies from entering the cabinet units.
Note
Installing the side panels
For each row of cabinets installed, one side panel must be installed on the right (option M26)
and one side panel on the left (option M27).
