Page 255 of 292

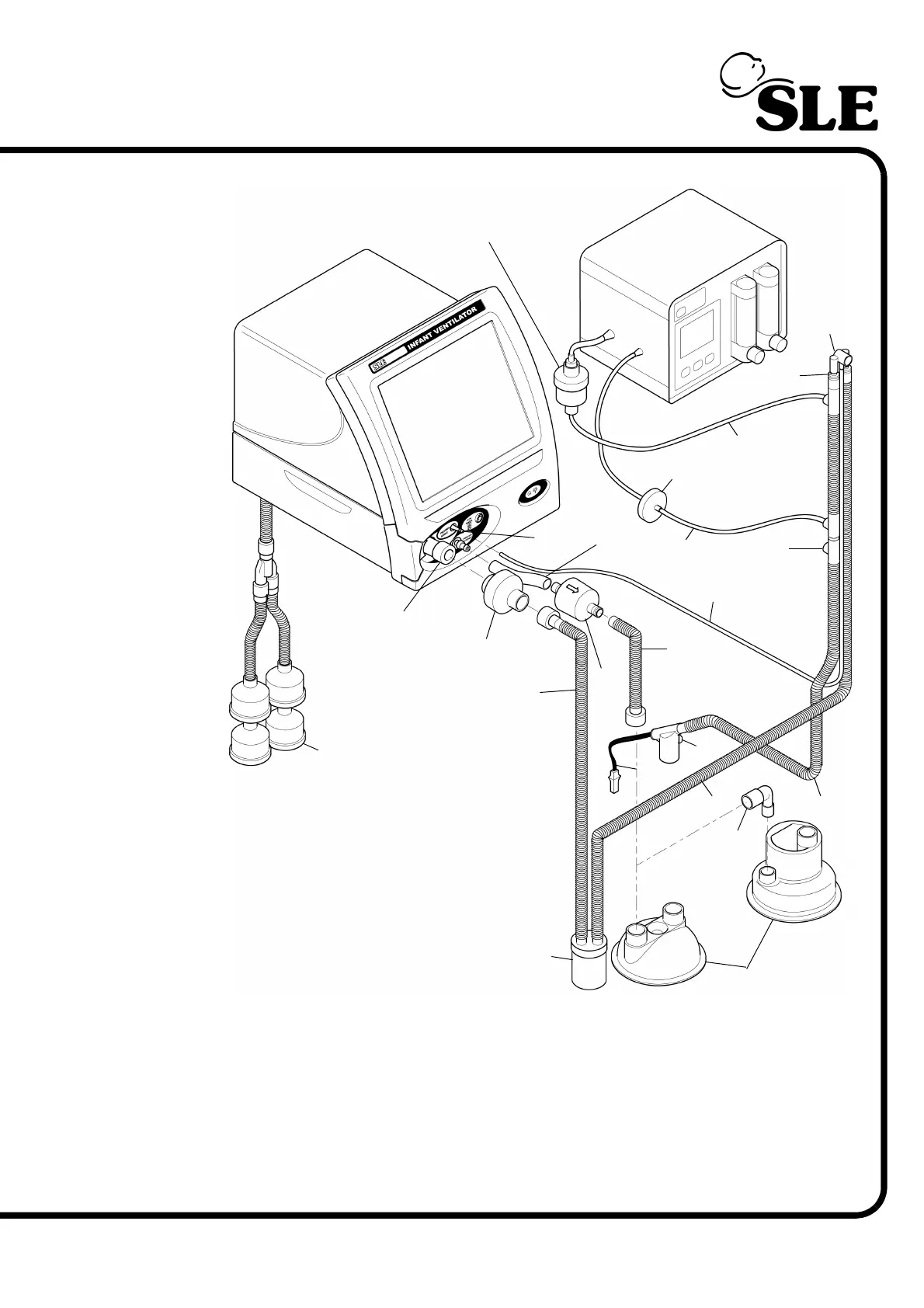

DIAGRAM INDEX
A. Proximal Airway K. Water Trap
B. Exhalation Port (from patient) L. N2257 adaptor for MR225/290/390 chamber*
C. Short Tube 1 Humidifier Supply Line
D. Single Use Bacteria Filter 2 Inspiratory Supply Line
E. Autoclavable Bacteria Filter 3 Expiratory Supply Line
F. ET Manifold 4 Proximal Airway Pressure Line
G. Amber Restrictor 5 Temperature Monitoring Port
H. To Heater Wire Adaptor 6 Dual hose NO/NO
2
scavenger filter
J. Humidification Chamber * adaptor not included with circuit.
A
B
C
D
E
F
G
H
J
K
1
2
3
4
3
5
5
L
6
Bacteria Filter N4117/06
Delivery line
Monitor Line
Hyrdophobic filter N4108
To Next Page
