Maintenance 151
2006792 Rev B – 200228
4. Become oriented with the parts to be adjusted:

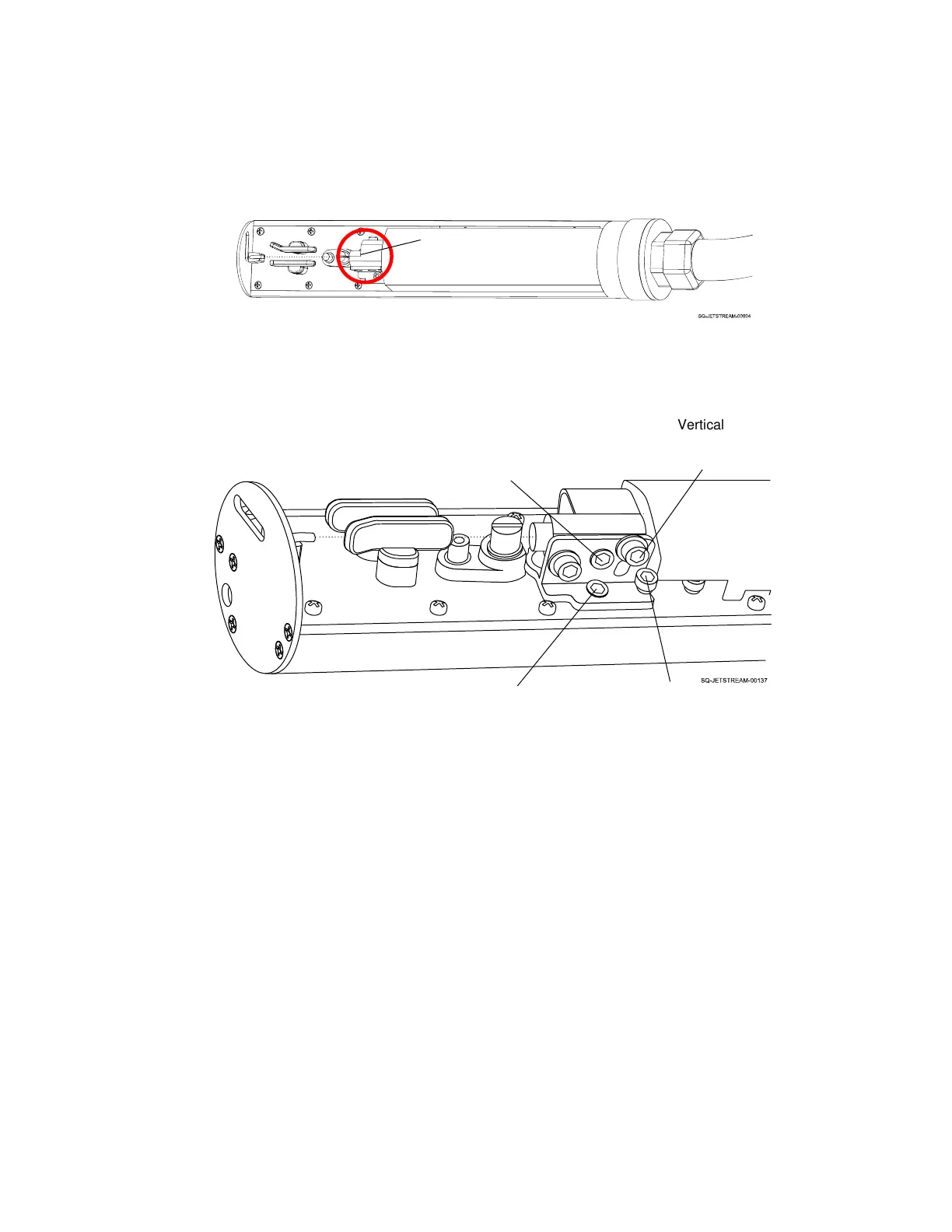

a. Locate the Gun Body:
b. On the Gun Body, become familiar with the Adjustment Set Screws and Adjustment
Cams:
Vertical adjustment refers to the flow of ink droplets into the Ink Return Gutter. If the
droplets are landing above or below the Gutter, the vertical ink flow needs to be
adjusted. Similarly, if the droplets are landing to one side or the other of the Gutter,
the horizontal ink flow needs to be adjusted.
