152 Maintenance
2006792 Rev B – 200228

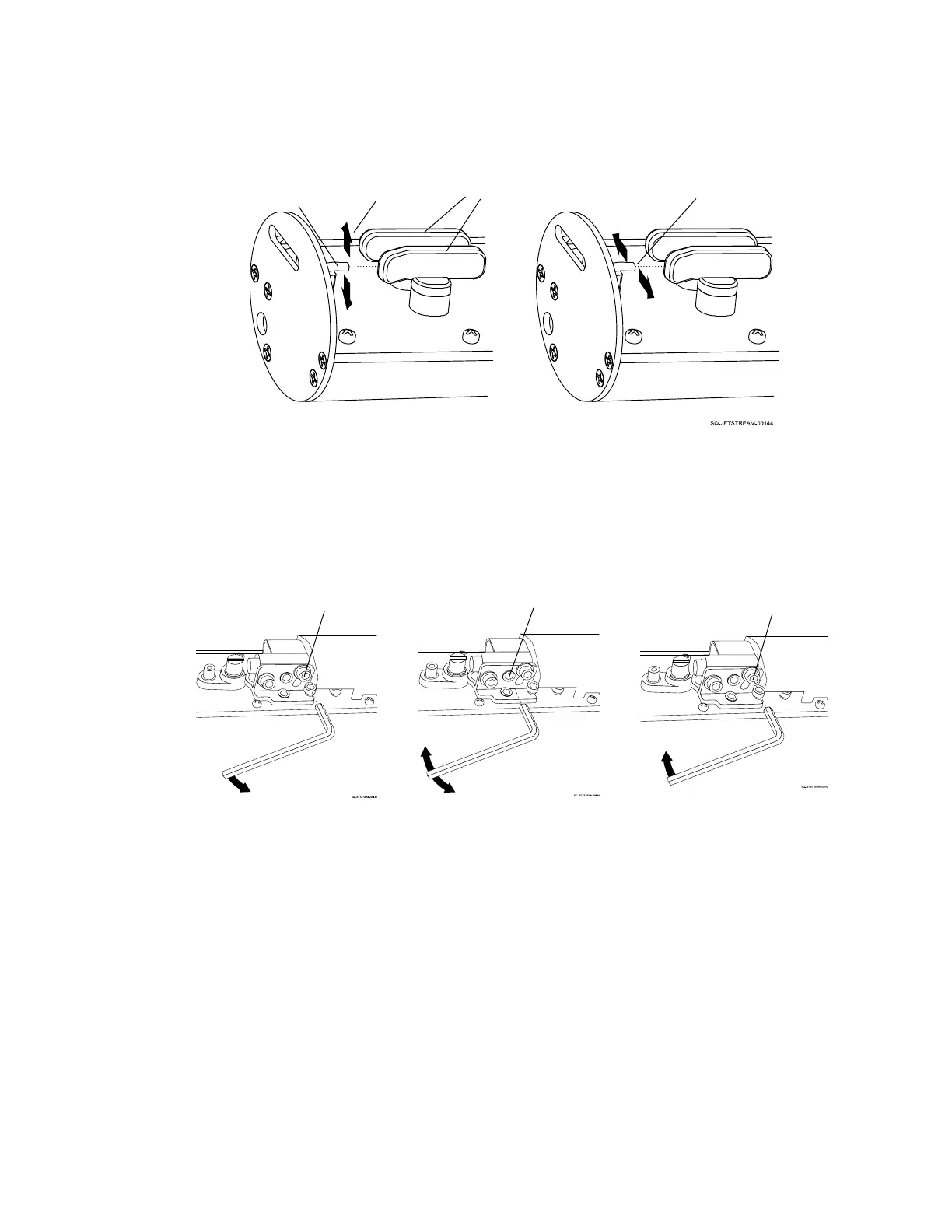

5. If needed, adjust the ink flow vertically:
a. Using a small hex wrench, slightly loosen the Vertical Adjustment Set Screw.
b. Observing the ink stream, use the hex wrench to slightly adjust the Vertical
Adjustment Cam until the ink stream is vertically aligned with the Ink Return Gutter.
c. Retighten the Vertical Adjustment Set Screw to lock the new adjustment in place.
6. If needed, adjust the ink flow horizontally:
Vertical
Adjustment
Deflector
