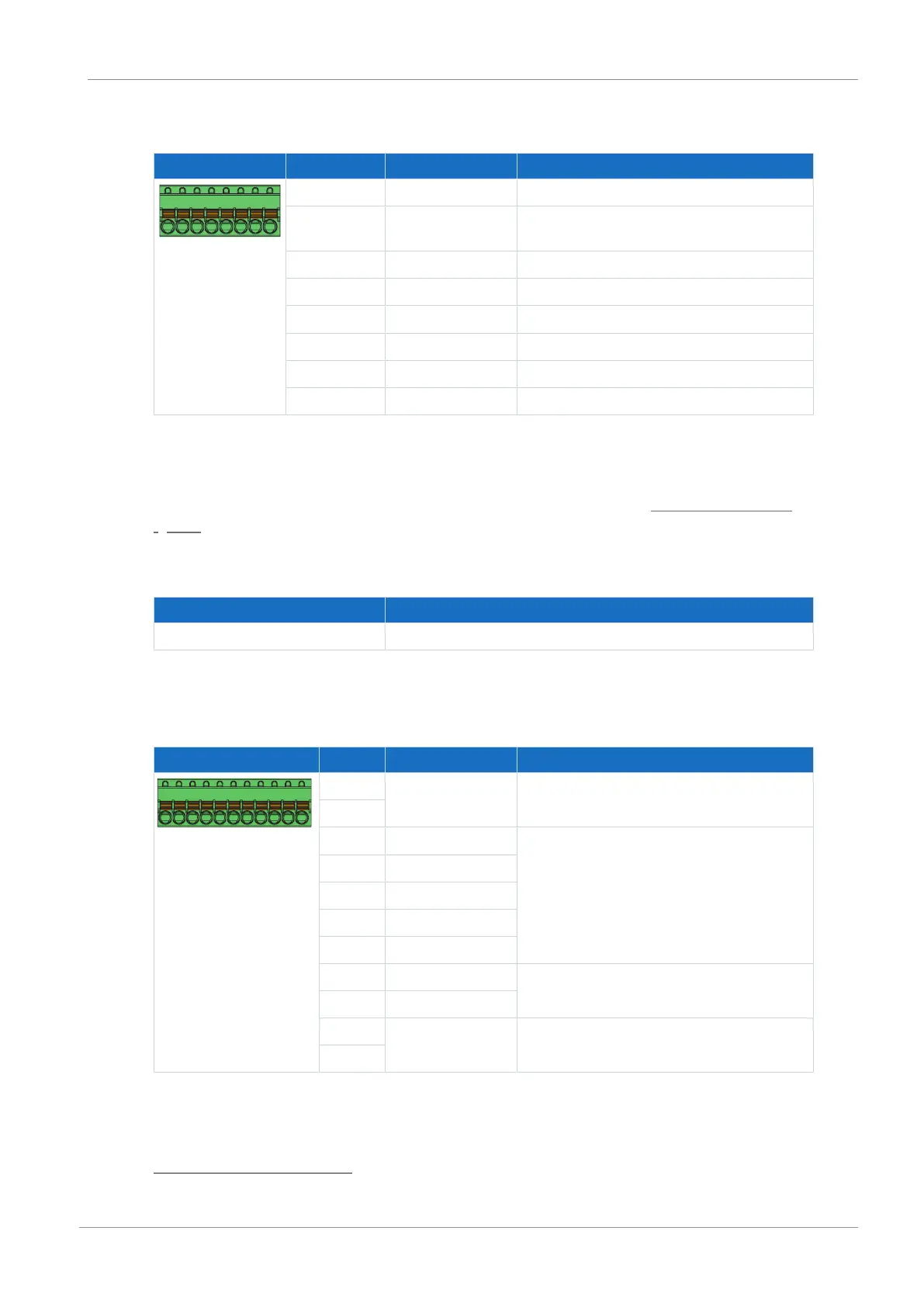

8.6.1.2 X100: AE1 – AE2, AA1 – AA2
Terminal Pin Designation Function
1|2|3|4|5|6|7|8
1 AE1+ AE1+ input
2 AE1 shunt Current input; shunt connection pin 2 is to be
bridged to pin 1
3 AE1− AE1− input
4 AE2+ AE2+ input
5 AE2− AE2− input
6 AA1 AA1 output
7 AA2 AA2 output
8 AGND Reference ground
Tab. 99: X100 connection description
Connecting wiring
For connecting wiring, observe the terminal specifications in the chapter FK-MCP 1,5 -ST-3,5
[}152].
Cable requirements
Feature All sizes
Max. cable length 30m
Tab. 100: Cable length [m]
8.6.1.3 X101: BE1 – BE5, BA1 – BA2
Terminal Pin Designation Function
9|10|11| ... |17|18|19
9 DGND Reference ground, internally bridged
10
11 BE1 Binary input
12 BE2
13 BE3
14 BE4
15 BE5
16 BA1 Binary output
17 BA2
18 +24V
DC
External 24V
DC
supply; recommended fuse
protection: max. 1AT
10
19
Tab. 101: X101 connection description for binary signals
10
For the fuse protection, use a 1A fuse (time delay). For UL-compliant use, be sure that the fuse meets
certification requirements for DC voltage in accordance with UL 248.
