STOBER
7 | Installation
12/2018 | ID 442537.05
49
1.

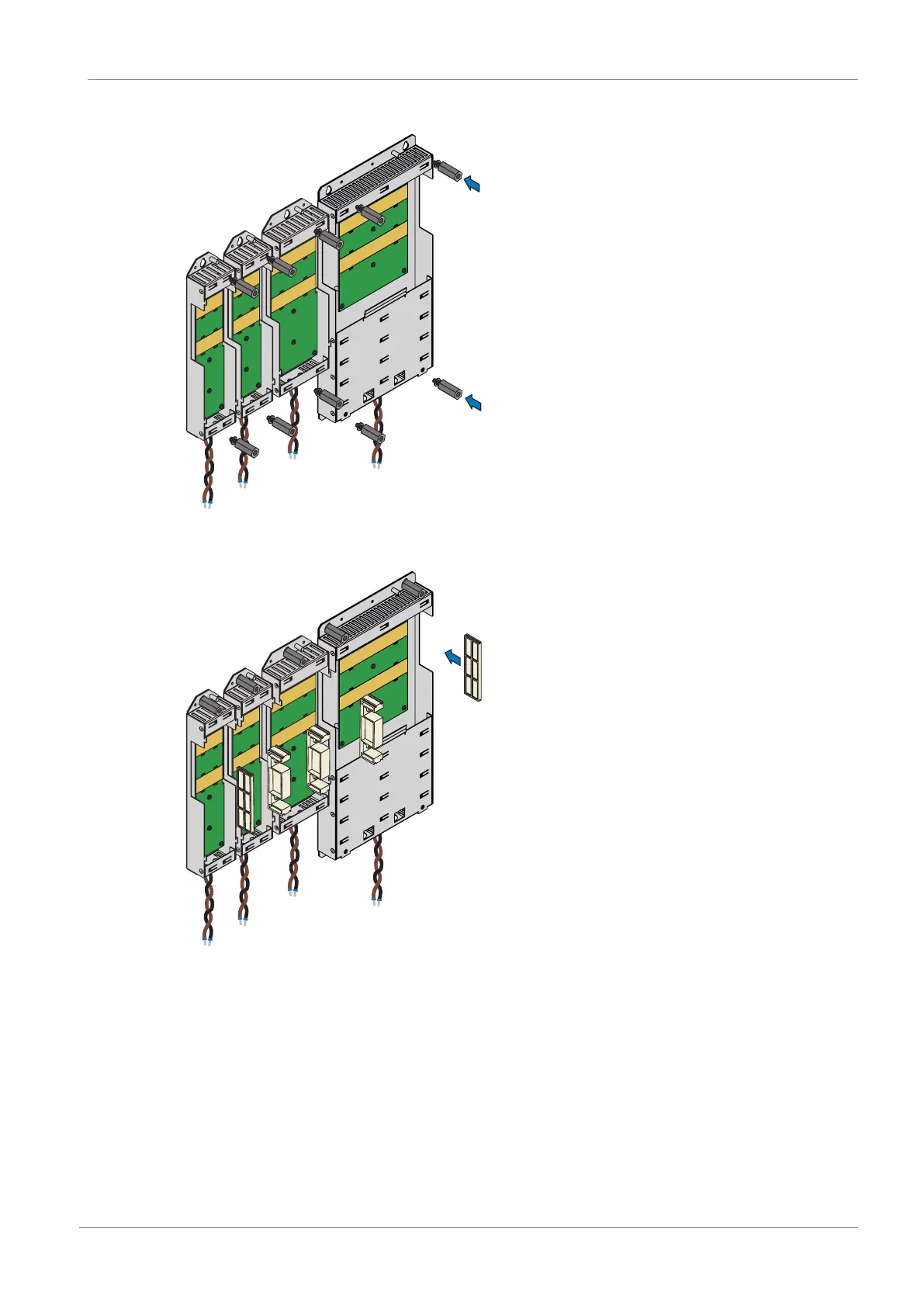

Fasten the Quick DC-Link modules to the mounting plate using the threaded bolts.
2.
Insert the insulation connection pieces between the modules and insulation end section
each at the left edge of the first module and at the right edge of the last module.
3.
Clean the copper rails, especially at the contact points.
48
50
