STOBER 8 | Connection
12/2018 | ID 442537.05
97

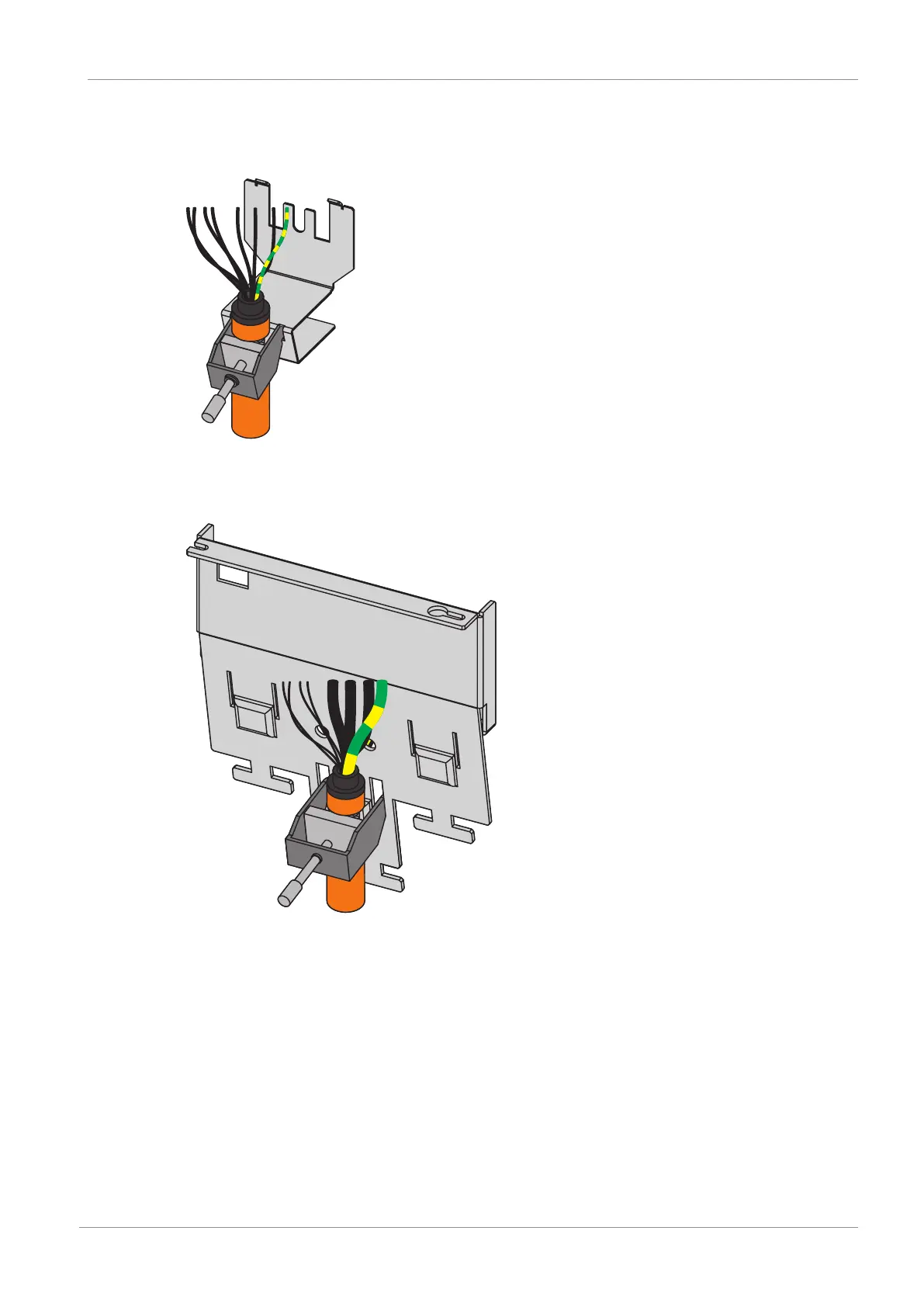

2. Sizes 0 to 2: In order to connect the motor temperature sensor, the brakes and the motor
itself to the drive controller, wire the cores of the power cables to terminals X2, X5, X8 and
X20. Attach the power cable to the EMC shroud.
3. Size 3: Start by attaching the power cable to the EMC shroud. Then wire the cores of the
power cable to terminals X2, X5, X8 and X20 in order to connect the motor temperature
sensor, the brakes and the motor itself to the drive controller.
4. Sizes 0 to 2: Attach terminal X20.
5. Connect the supply voltage for the brakes to terminal X7 and attach it.
6. Attach terminals X2, X5 and X8.
7. Optional: Connect an encoder to terminal X4.
8. Wire the enable signal (pins 3 and 4) and optional relay 1 (pins 1 and 2) to terminal X1 and
attach them.
