Suzuki RM250 - Primary Driven Gear and Clutch Sleeve Hub

7-4 CLUTCH
PRIMARY DRIVEN GEAR AND
CLUTCH SLEEVE HUB

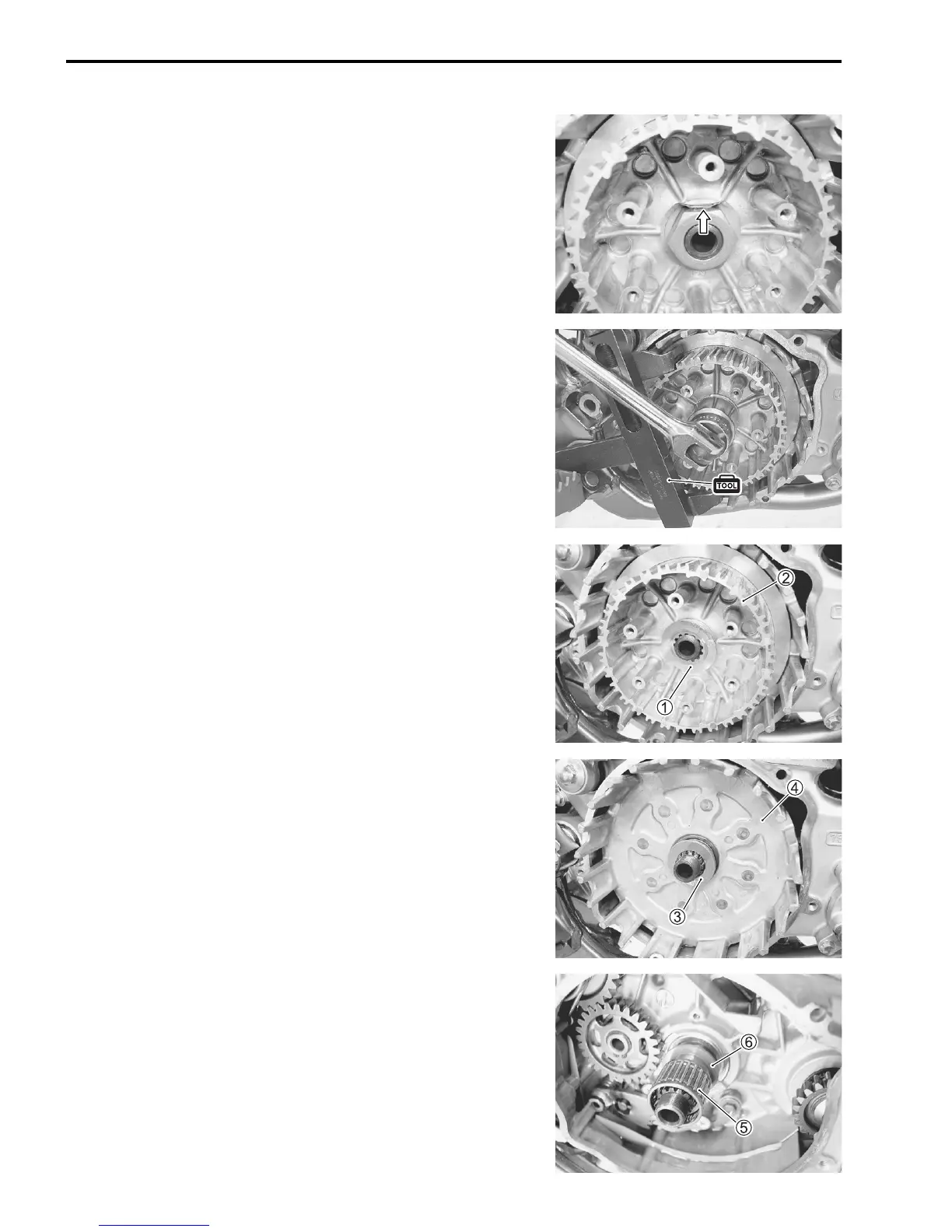

• Flatten the lock washer.
• Hold the clutch sleeve hub with the special tool and remove
the clutch sleeve hub nut.
 09920-53740: Clutch sleeve hub holder
• Remove the lock washer 1 and clutch sleeve hub 2.
• Remove the washer 3 and primary driven gear assembly 4.
• Remove the bearing 5 and spacer 6.
