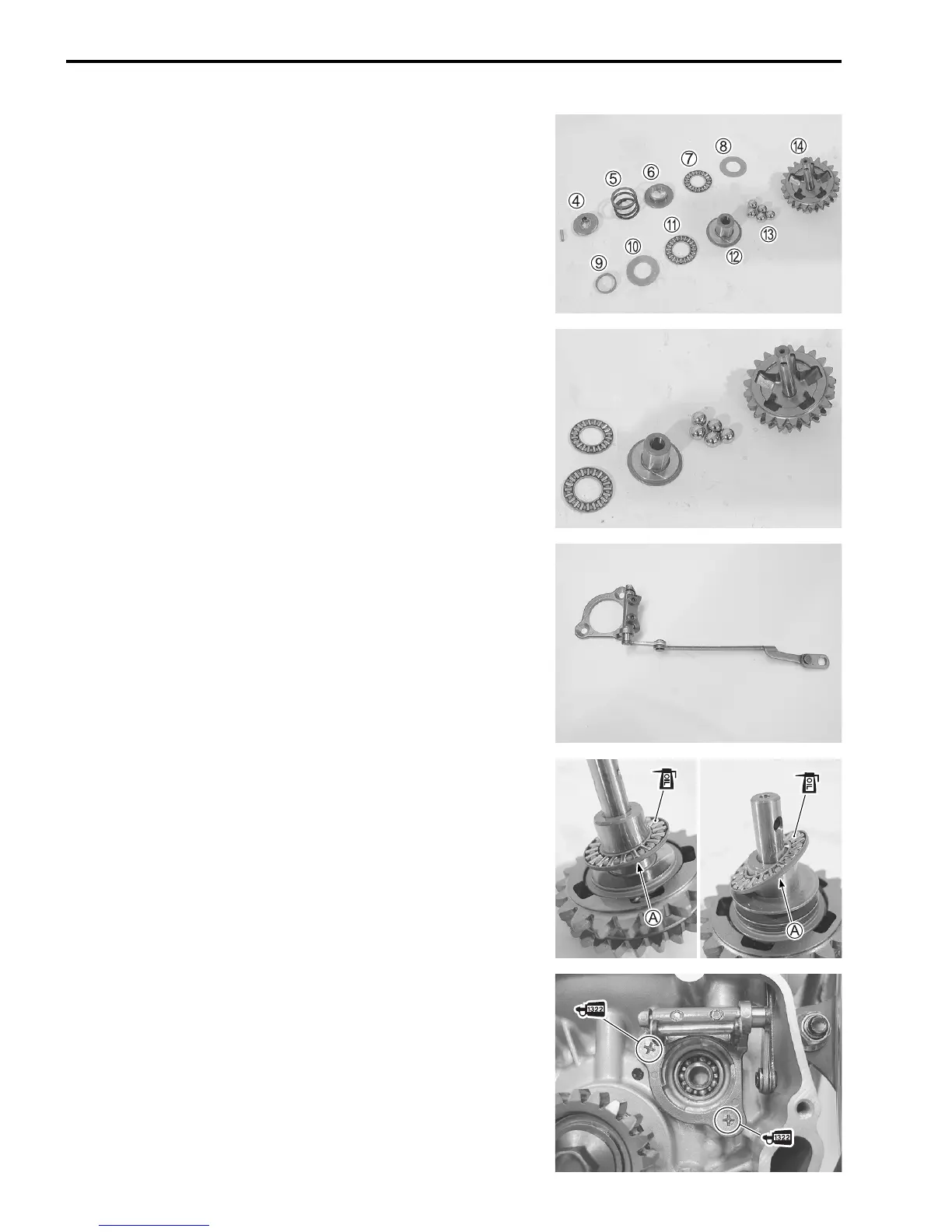

6-20 CYLINDER, PISTON AND EXHAUST VALVE
• Disassemble the following parts from governer.
4 Retainer 0 Washer
5 Spring A Bearing
6 Retainer B Stater
7 Bearing C Balls
8 Washer D Governer
9 Spacer
INSPECTION
• Inspect the governer for wear and damage.
• Inspect hte bearings for abnormal noise, wear and damage.
• Inspect the exhaust valve rod for abnormal bend and dam-
age.
REASSEMBLY
Reassemble the exhaust valve governer and actuator in the
reverse order of disassembly. Pay attention to the following
points:
• Apply transmission oil to the bearings.
• Assemble the governer.
NOTE:
The covered side A of bearings should face governer side.
• Apply THREAD LOCK SUPER to the actuator screw and
tighten the screws.
99000-32110: THREAD LOCK SUPER “1322”
(or equivalent thread lock)
