EXHAUST VALVE
DISASSEMBLY

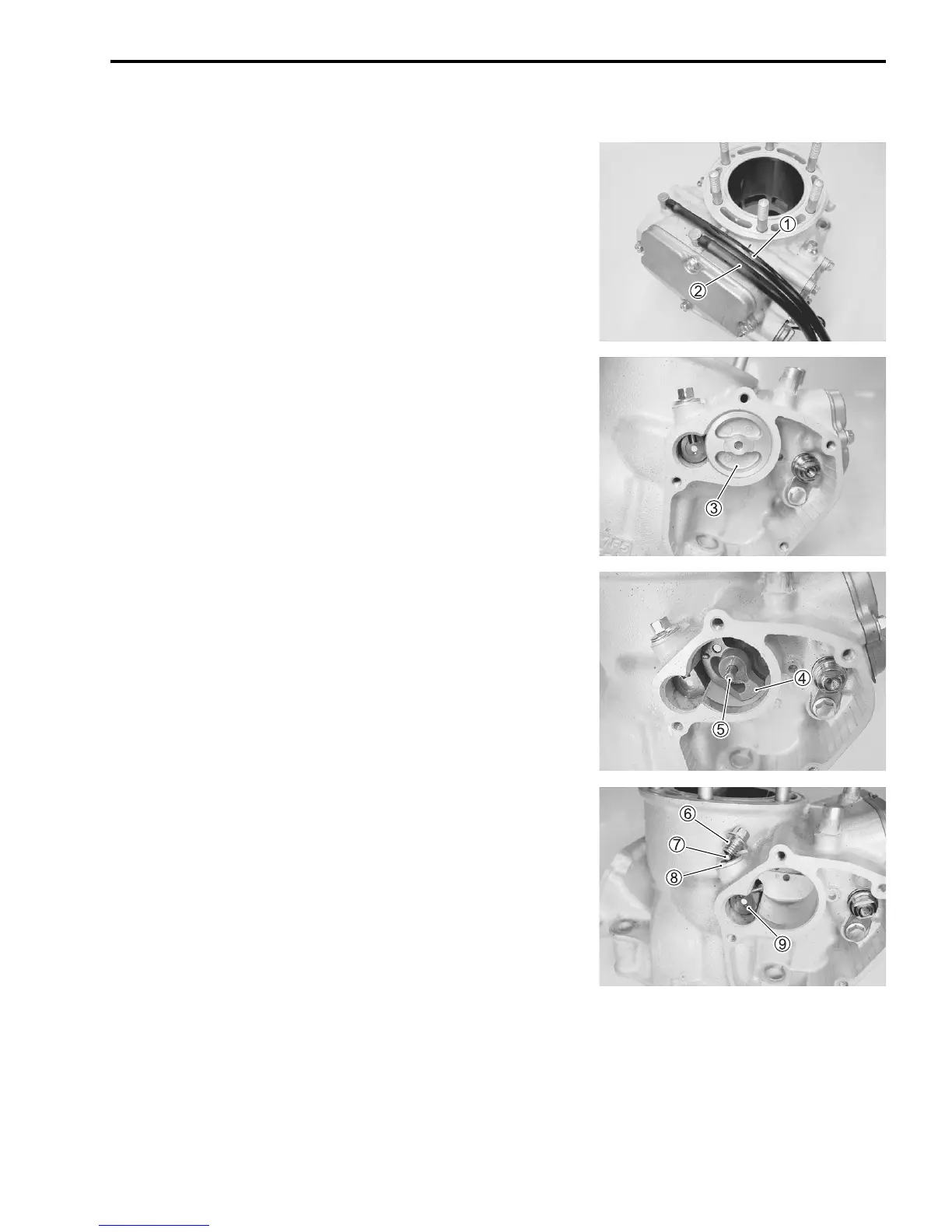

• Remove the cylinder. (6-6)
• Remove the cylinder breather hose 1 and exhaust valve
breather hose 2.
EXHAUST SIDE VALVE (RH)
• Remove the exhaust side valve spacer 3.
• Remove the exhaust side valve cam 4 and pin 5.
• Remove the exhaust valve cap bolt 6, stopper pin 7 and
gasket 8.
• Remove the exhaust side valve 9.
