TRANSMISSION AND CRANKSHAFT 10-13

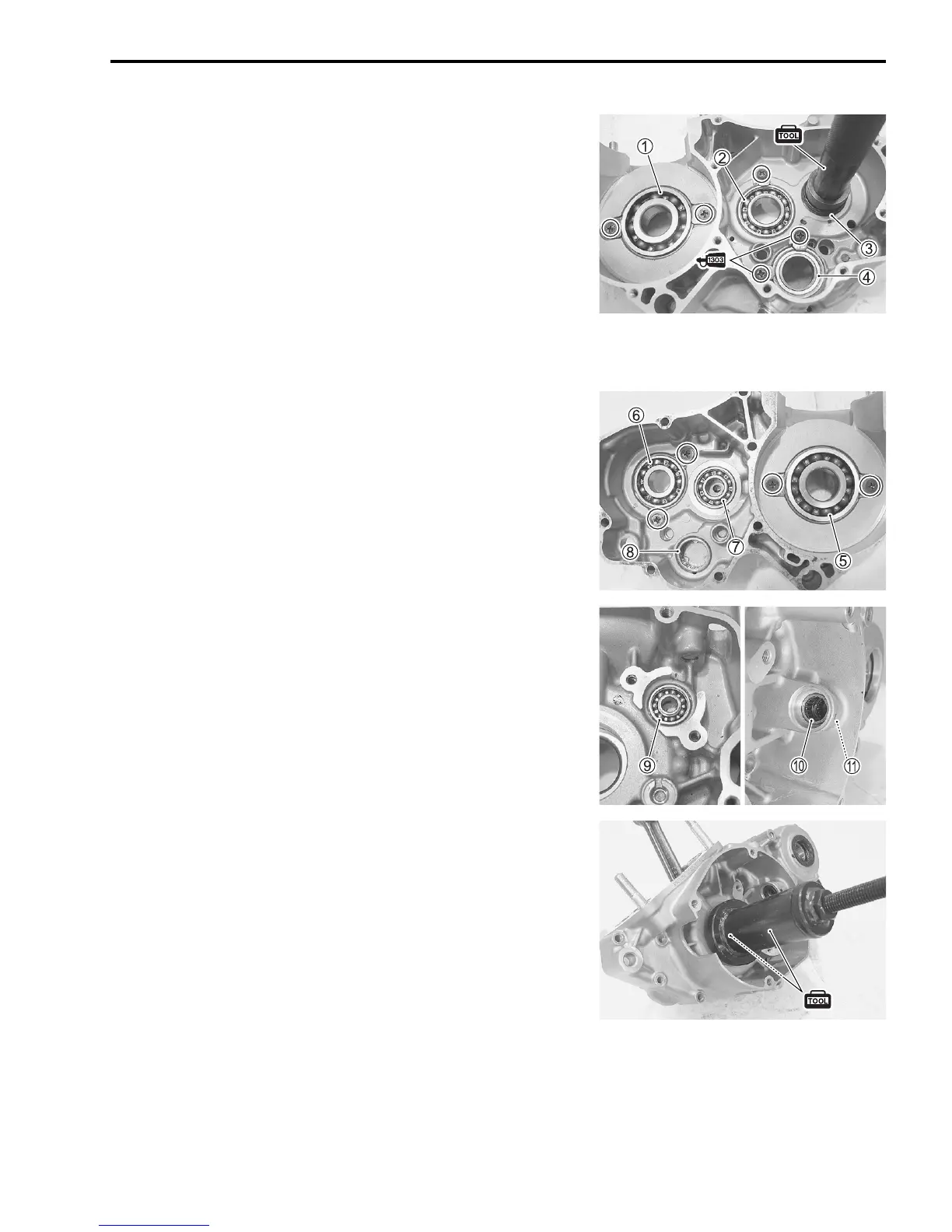

BEARING INSTALLATION
• Press the each bearings with the special tools.
Bearing 1, 5: 63 Attachment
Bearing 2: 52 Attachment
Bearing 3, 4: 42 Attachment
Bearing 6: 55 Attachment
Bearing 7: 40 Attachment
Bearing 8: 32 Attachment
Bearing 9: 22 Attachment
Bearing 0: 17 Attachment
Bearing A: 15 Attachment
09913-70210: Bearing remover/installer set
NOTE:
* When installing the bearings 1, 2, 5, 6 , 7, 0, A the
stamped mark on the bearing must face outside.
* When installing the bearings 3, 4, 8, 9 the stamped mark
on the bearing must face inside.
• Apply THREAD LOCK SUPER to the shift cam bearing
retainer screws.
99000-32030: THREAD LOCK SUPER “1303”
• Tighten the each bearing retainer screws to the specified
torque.
Bearing retainer screw: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
CRANKSHAFT INSTALLATION
• Fit the crankshaft into the left crankcase half with the special
tool.
09910-32812: Crankshaft installer
09911-11310: Crankshaft installer attachment
NOTE:
Do not hit the crankshaft with a hammer for installation.
