COOLING SYSTEM 12-5
WATER PUMP
REMOVAL
• Drain engine coolant. (2-12)
• Drain transmission oil. (2-10)
• Remove the kick starter lever. (8-3)
• Remove the brake pedal. (5-6)

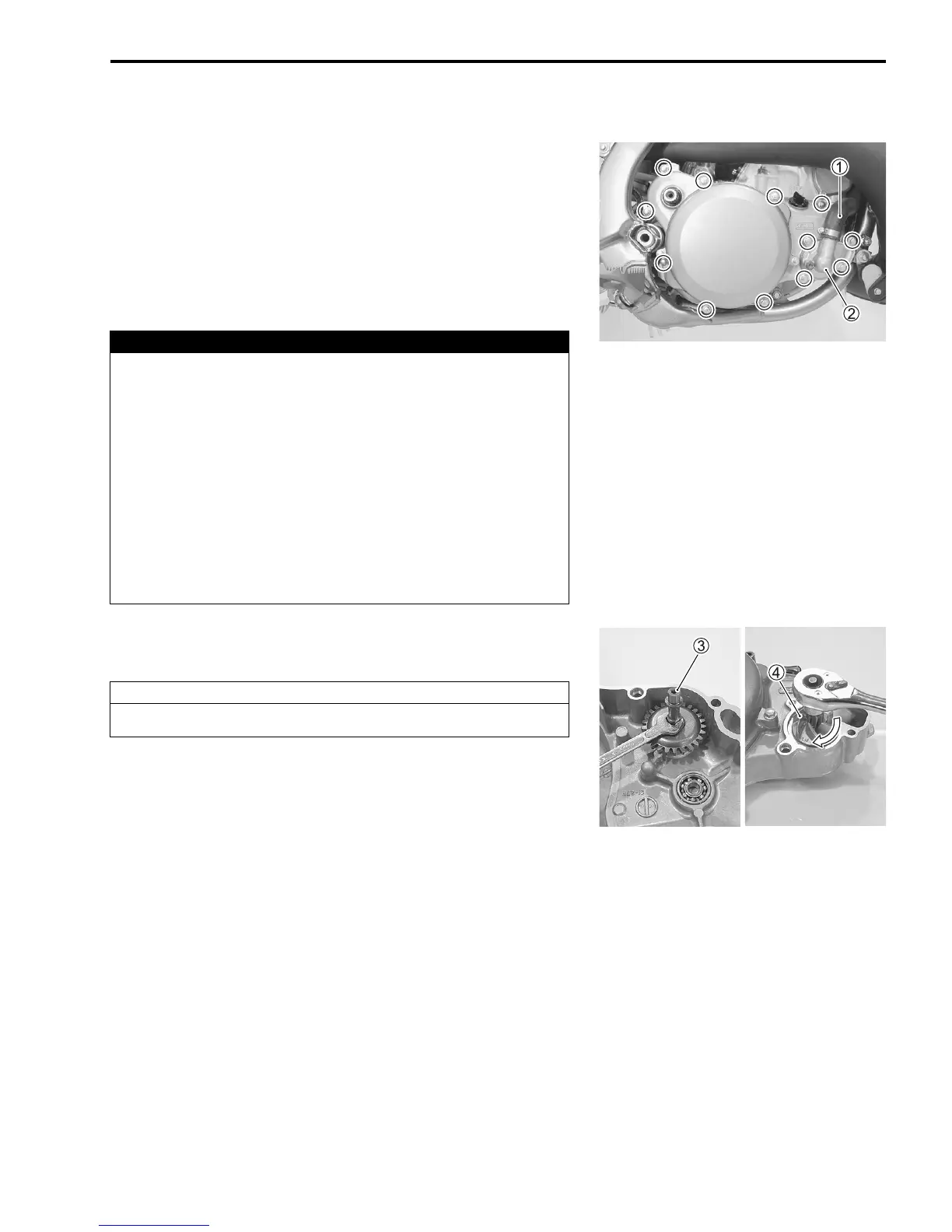

• Disconnect the radiator hose 1.
• Remove the water pump cover 2.
• Remove the right crankcase cover and clutch cover.
• With the water pump shaft 3 held immovable, remove the
water pump impeller 4.
WARNING
* Do not open the radiator cap when the engine is hot,
as you may be injured by escaping hot liquid or
vapor.
* The engine must be cool before servicing the cooling
system.
* Engine coolant may be harmful if swallowed or if it
comes in contact with the skin or eyes. If engine
coolant gets into the eyes or contacts the skin, flush
the eyes or wash the skin thoroughly, with plenty of
water. If engine coolant is swallowed, induce vomit-
ing and call a physician immediately.
CAUTION
The impeller has left-hand threads.
