17-4 REAR SUSPENSION

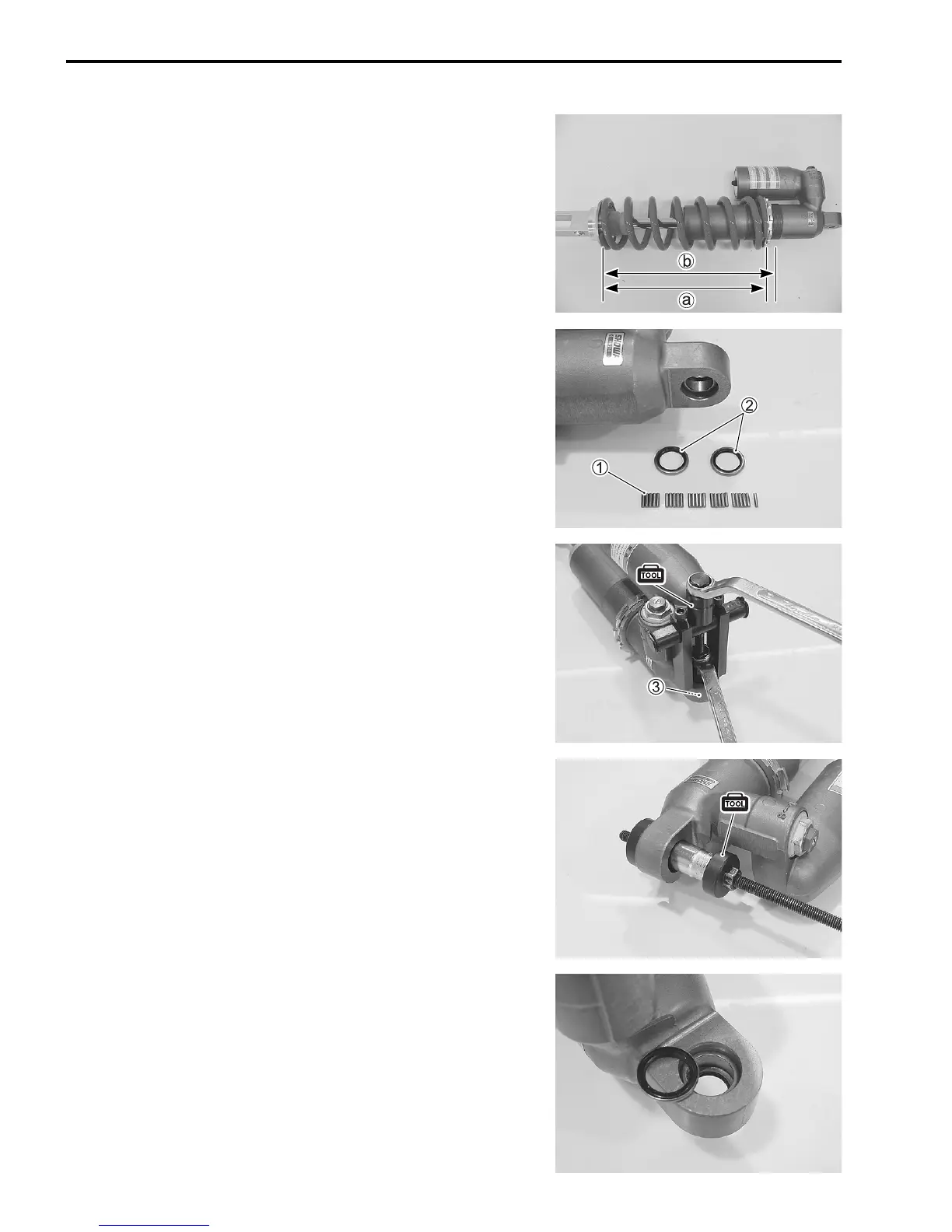

• Adjust the spring set length and tighten the lock-nut.
Standard spring set length:
4.1 mm (0.161 in) compressed from the free length
Spring set length adjustable range:
245 – 263 mm (9.646 –10.354 in)
a: Standard spring set length
b: Spring free length
Shock absorber lock-nut: 43 N·m (4.3 kgf-m, 31.0 lb-ft)
BEARING REPLACEMENT
• Remove the spacers.
• Remove the needle roller bearings 1.
• Remove the dust seals 2.
• Remove the needle roller bearing cage 3 with the special
tool.
09921-20240: Bearing remover set
• Press the bearing cage with the special tool and suitable size
socket wrench.
NOTE:
Position the bearing by refering to the illustration of page 17-19.
09924-84521: Bearing installer set
• Install the dust seals.
NOTE:
When installing the dust seal, the stamped mark on the dust seal
must face inside.
