Suzuki RM250 - Removal and Disassembly

FUEL SYSTEM 11-3
REMOVAL AND DISASSEMBLY

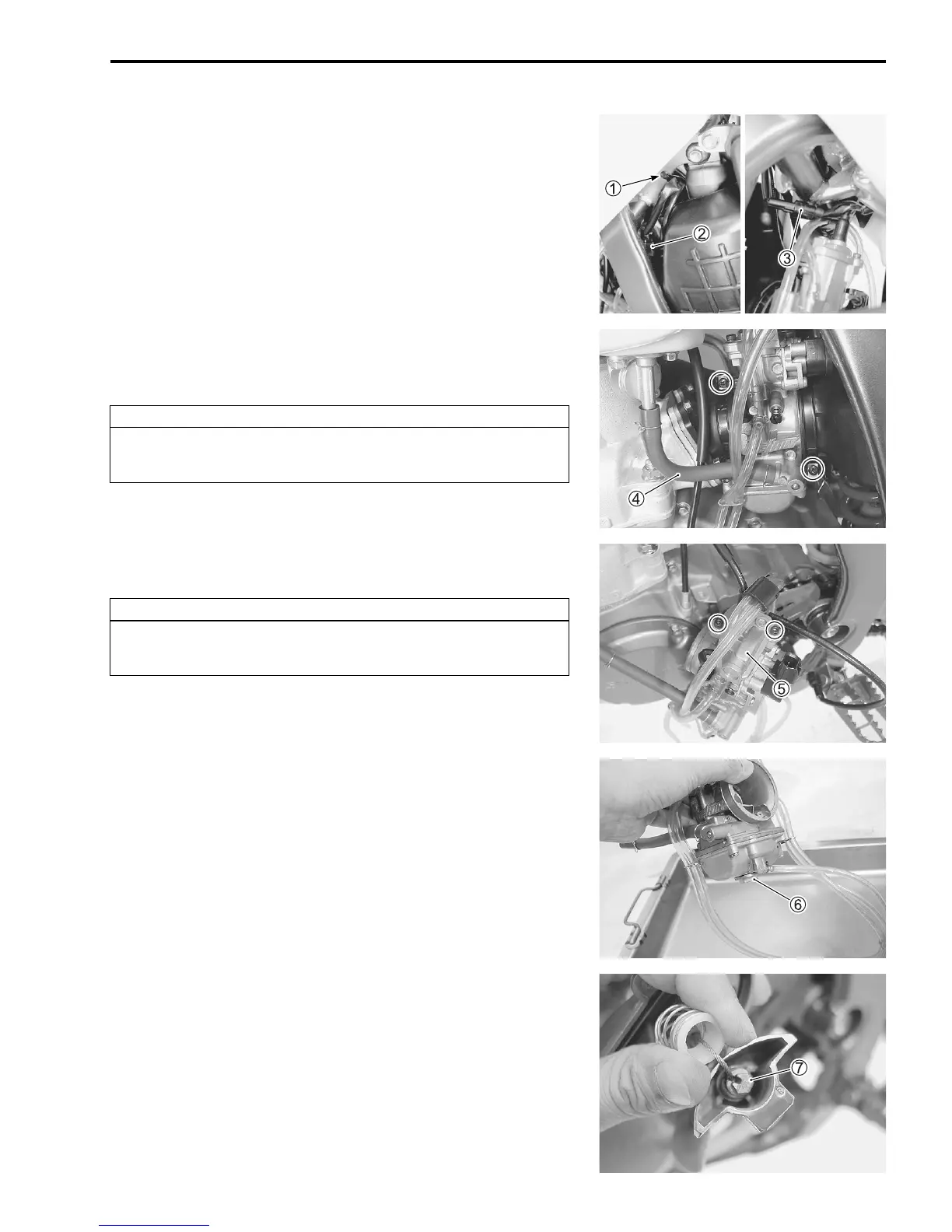

• Open the clamp 1.
• Disconnect the throttle position sensor coupler 2 and carbu-
retor solenoid coupler 3.
• Turn the fuel cock to OFF and disconnect the fuel hose 4.
• Loosen the carburetor clamp screws and remove the carbure-
tor.
• Remove the carburetor top cap 5 along with the throttle valve
assembly.
• Drain fuel by removing the drain plug 6.
• Unhook the throttle cable from the cable holder 7.
CAUTION
To prevent dirt from entering the engine, seal the
intake pipe after removing the carburetor.
CAUTION
Do not bend the throttle cable and do not damage the
throttle position sensor.
