16-18 FRONT FORK AND STEERING

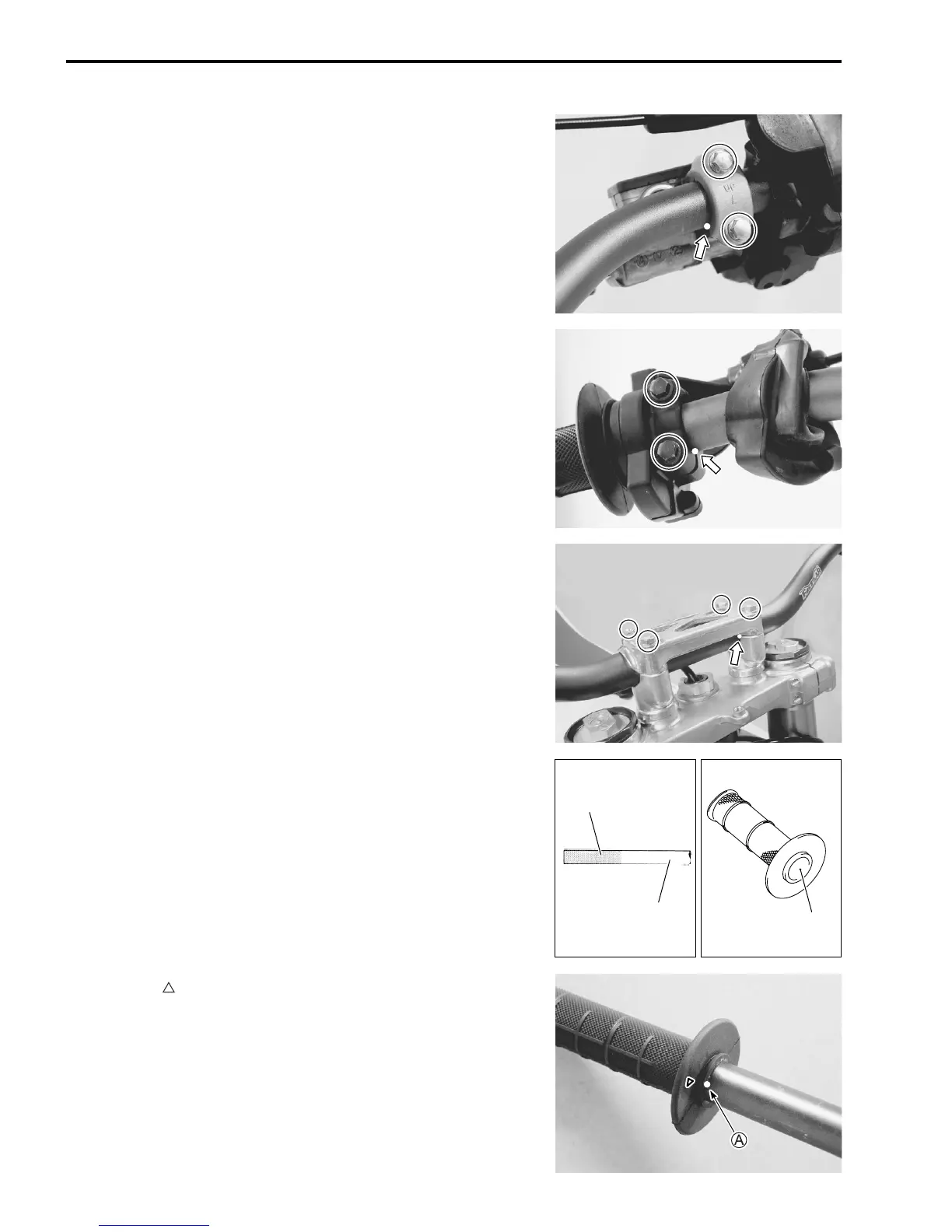

• Remove the front brake master cylinder.
NOTE:
Mark the paint mark to the matching surface of master cylinder
holder and handlebars before removing.
• Remove the throttle assembly mounting bolts.
NOTE:
Mark the paint mark to the matching surface of throttle holder
and handlebars before removing.
• Remove the handlebar holder bolts and remove the handle-
bars.
NOTE:
Mark the paint mark to the matching surface of handlebar holder
and handlebars before removing.
REMOUNTING
Remounting is in the reverse order of removal. Pay attention to
the following points:
• Apply adhesive agent to the handlebar left end and left grip
inner wall.
HANDLE GRIP BOND (Commercial available)
• Align the “ ” mark on the left grip with the paint mark A on
the handlebars.
Adhesive agent
Adhesive agent
Handlebars
To Next Page
